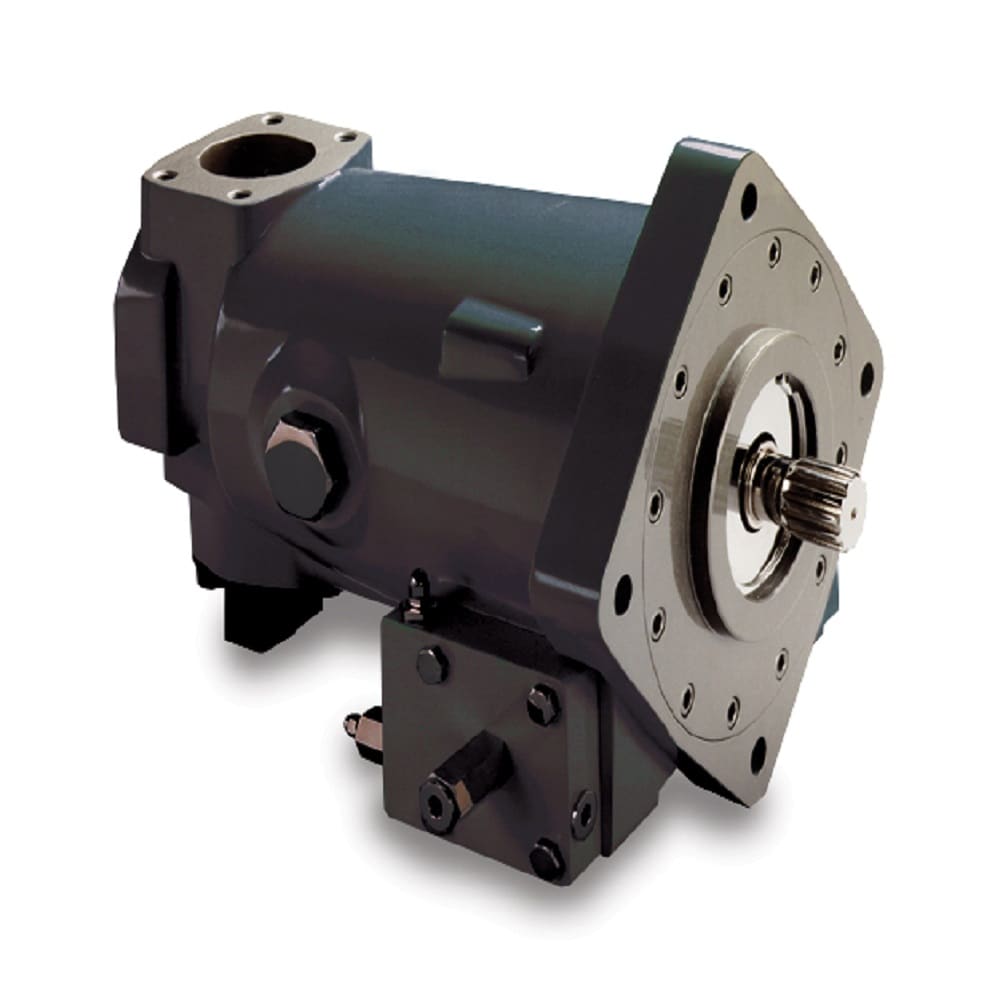

High Pressure Industrial Piston Pump - Premier Series

Parker Premier Series Piston Pumps are engineered to perform in industries requiring variable flow, high pressure and high speed. With an unbeatable up to psi continuous pressure rating and flexible design, they ensure reliability.

Use our configurator to build the right part for your application.
Description
    Featuring superior design and simplified maintenance, the Premier Series delivers high-pressure variable piston pumps that improve performance. Low inlet velocity capability allows the pump to run faster than competitive models without the added expense of boosting the inlet, while enhanced piston design reduces the amount of trapped fluid volume to improve efficiency. Premier Series pumps are designed to operate in any position as extreme pressure.

    Markets:
    • Aerospace
    • Energy
    • Industrial
    • Mining
    • Oil & Gas
    • Processing

    Features/Benefits:
    • Superior Performance
    • Highest pressure rating on the market (for comparable pumps)
    • High-pressure shaft seal to enable higher case pressure without external leakage
    • Fast compensator response that minimizes pressure overshoot
    • Design and Flexibility
    • -Full power thru drive
    • Wide variety of control options
    • Mounting flange in both SAE and ISO
    • Seals available in buna nitrile, Viton® and EPR
    • Compatible with non-water-based fluids ranging in viscosity
    • Increased Durability
    • Precision barrel bearing to absorb radial forces for long operation
    • Heavy-duty shaft bearing to absorb side and thrust loads

     Applications:
    • Presses
    • Construction
    • Machinery
    • Injection molding
    • Wood
    • Aircraft
    • Drilling
    • Mining
    • Steel
    • Cranes

    Technical Characteristics:
    • Continuous pressure rating up to 6,000 psi
    • Intermittent pressure rating up to 7,250 psi
    • Five frame sizes (80 cc, 110 cc, 140 cc, 200 cc, 260 cc)
    • Maximum speed of 2,550 rpm
Description

Performance Characteristics

Body Material

Cast Iron

Case Drain Option

YES

Charge Pump Option

No

Circuit Type

OPEN

Configuration

Single / Tandem / Multiple

Control Method

Presure Limiter | Load Sense | Electronic Control| Unloading |Proportional

Energy Recovery Capable

NO

Filtration Option

NO

Fluid Type

Standard Hydraulic Fluid / Phosphate Ester / Water Glycol

Maximum Displacement (cm3/rev)

260

Maximum Displacement (in3/rev)

16

Maximum Flow (gpm)

145

Maximum Flow (lpm)

548

Maximum Fluid Temperature (C)

82

Maximum Fluid Temperature (F)

180

Minimum Fluid Temperature (C)

-40

Minimum Fluid Temperature (F)

-40

Maximum Noise Level (DBA)

92.5

Maximum Operating Pressure (bar)

420

Maximum Operating Pressure (psi)

6000

Maximum Radial Shaft Load (kg)

N/A

Maximum Radial Shaft Load (lbs)

N/A

Maximum Speed (rpm)

2550

Maximum Viscosity (SUS)

NA

Minimum Viscosity (SUS)

NA

Maximum Weight (KG)

147

Maximum Weight (lbs)

325

Media

Hydraulic

Mounting Option

SAE | ISO

Port Connection

SAE | ISO

Port Connection Type

FLANGE

Porting Location

Opposing Ports

Pump Technology

Piston

Pump Type

Variable

Rotation

Clockwise | Counter Clockwise

Sensor Type

NA

Shaft Type

SAE | ISO | DIN

Thru-Drive Capability

YES
