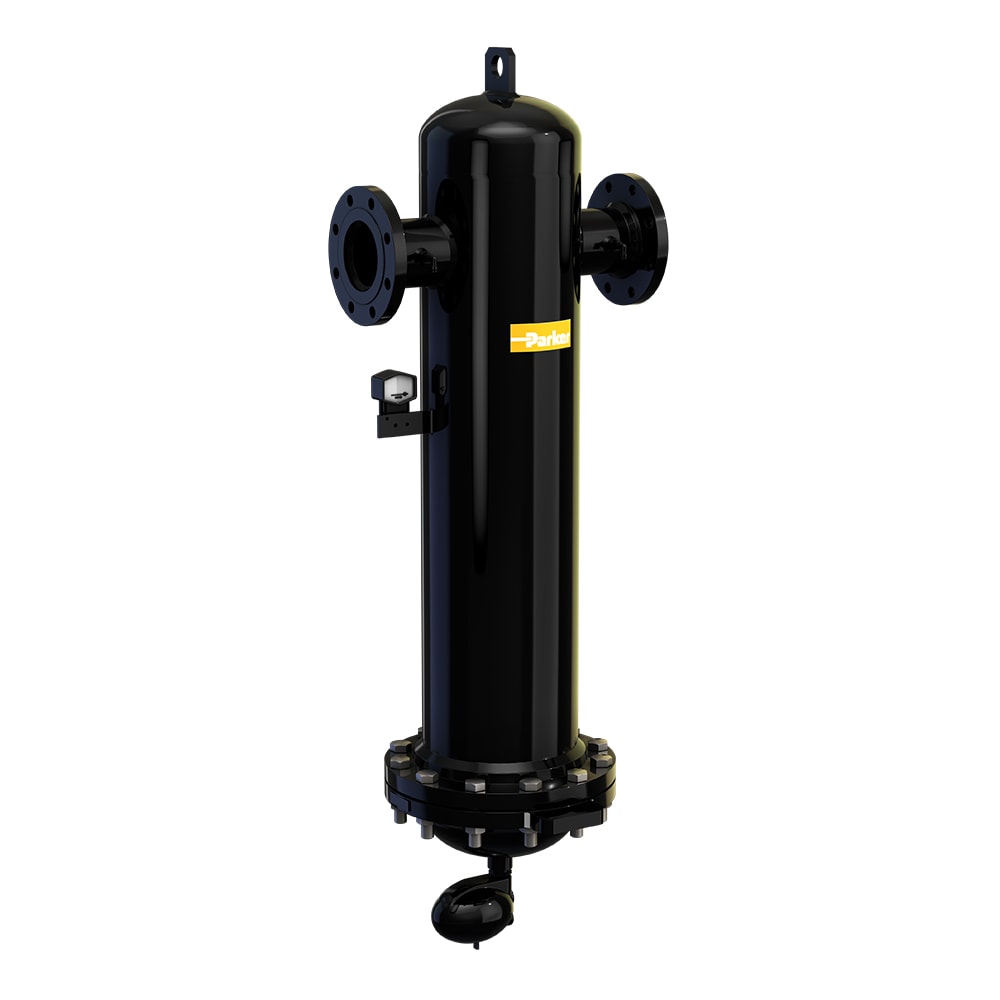

OIL-X Carbon Steel Fabricated Compressed Air Filter - For North America

Where to Buy

High efficiency compressed air filters for applications that require flow rates up to 16,500+ SCFM & pressures up to 232 PSIG.

Technical Specifications

Minimum Operating Pressure: 15 PSIG
Maximum Operating Pressure: 232 psig
Minimum Operating Temperature: 35°F
Maximum Operating Temperature: 140 to 150 °F
Port Size: 3 to 12 inch FLG
Height: 40.4 - 71.4"
Width: 15 to 39.4 inch
Depth: 7.5 - 34.2"
Weight: 112 to 1300 lb
Filter Type: Bulk Liquid Separation, 1 Micron Coalescer/Dry Particulate, 0.01 Micron Coalescer/Dry Particulate, Oil Vapor Reduction

Safety Warning

Full Product Description

The Parker domnick hunter OIL-X range of fabricated carbon steel compressed air filters combine an innovative filter housing and filter element design to achieve optimum flow characteristics with minimum pressure drop, resulting in considerable cost savings throughout the entire operating lifetime of the filter element.

The filter housing has been designed for ease of maintenance. A low placed service flange, supported by a pivoting hinge joint, enables element replacement to be undertaken by a single individual. A dished housing bottom provides ample space to drain away liquids efficiently. The patented filter element design provides a secure seal to avoid any possibility of contamination bypassing the element.

Features
• Fabricated from carbon steel

• Standard range up to 232 PSIG

• Stainless steel models also available

• Easy fit element location for quick and simple maintenance

• Coalescing filter performance tested to the stringent requirements of ISO12500-1 and ISO8573-2

• Dry particulate filter performance tested in accordance with the requirements of ISO8573-4

• Differential pressure gauge can be fitted as optional extra
