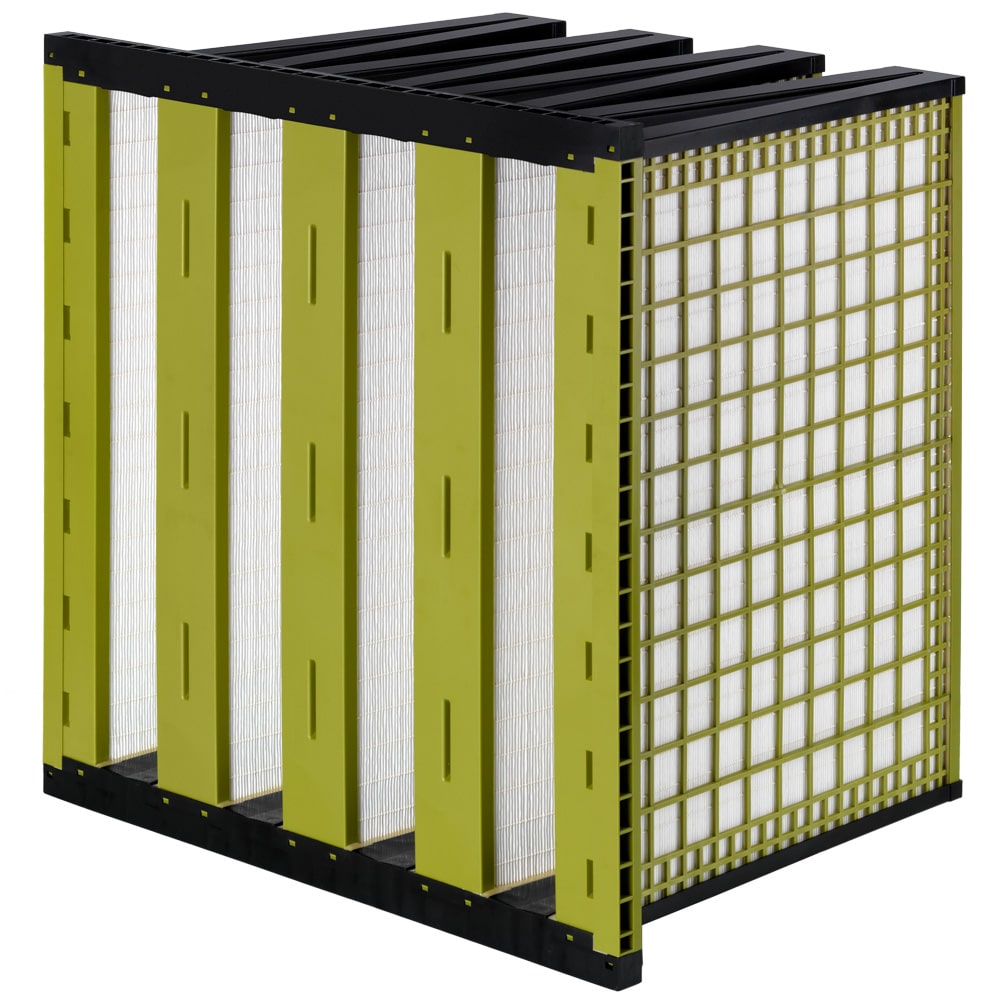

clearcurrent vCell Filter - HRF

Where to Buy

The clearcurrent® HRF vCell filter provides good protection of key gas turbine assets along with a low pressure drop and high dust-holding capacity for long filter life.

Technical Specifications

Brand: Clearcurrent
Division: Gas Turbine Filtration Division
Industry: Power Generation
Application: Landbased
Technology: Filtration
Product Type: vCell
Product Style: Reverse vCell
Media: Glass non-woven
Flow Rate: 4250 m3/hour, 2500 CFM
Filter Efficiency Rating: M6
Materials of Construction: Plastic - ABS
Operating Temperature: -31.7 to 70 °C, -25 to 158 °F
Outside Diameter: n/a
Inside Diameter: n/a
Height: 593 mm
Width: 593 mm
Depth: 435 mm
Weight: 14 kg, 31 lb

Full Product Description

The clearcurrent® HRF vCell filter provides good protection of key gas turbine assets along with a low pressure drop and high dust-holding capacity for long filter life.

The clearcurrent HRF vCell filter is made using fully potted, pleated panels to provide a complete seal and is mounted within an acrylonitrile butadiene styrene plastic frame. Protective grids incorporated on the downstream surface deliver robust performance, even in high under-pressure conditions that can be experienced in gas turbine applications. This filter has a filtration efficiency grade of M6 per EN779:2012, and an extended filtration surface area that ensures low pressure loss and high dust-holding capacity.

Features/Benefits:

• Low pressure loss helps increase power output and/or improve fuel efficiency

• High dust-holding capacity helps extend filter life and reduce costs

• Easy to install and change out to reduce downtime

• Easily disposable by incineration

Applications:

Available in industry-standard sizes

HRF/006493F
