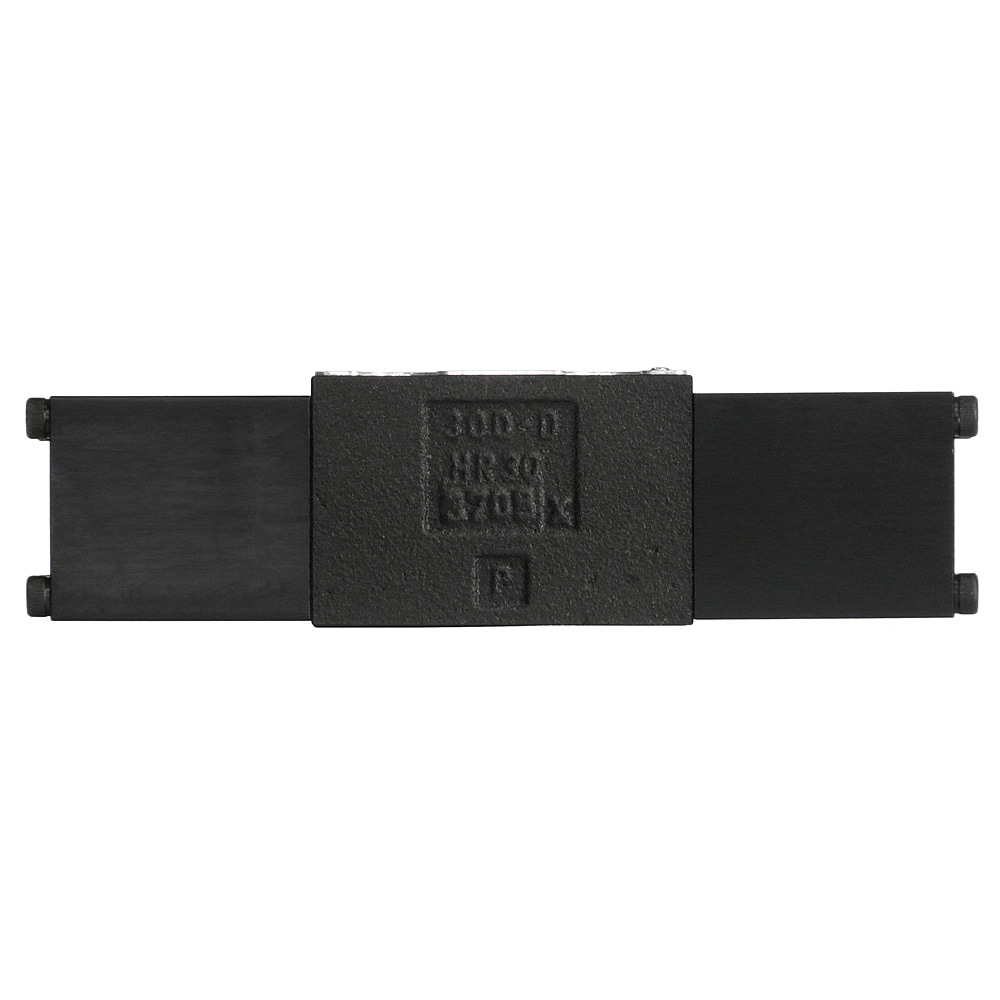

Direct Operated Directional Control Valve - Series D1VA

Puntos de venta

The pneumatically controlled directional control valve series D1VA in size NG06 is based on the standard D1VW design. These valves are useful to control hydraulic systems in hazardous areas.

Especificaciones técnicas

  • Serie del producto: Directional control valve
  • Tipo de montaje: Subplate mounting
  • Posición de montaje: Unrestricted, preferably horizontal
  • Tipo de operación: Direct
  • Tipo de accionamiento: Pneumatically operated
  • Función: 2-way, 3-way
  • Conexión del puerto: NG06 / CETOP 03
  • Índice de caudal máximo: 60
  • Presión de trabajo máxima: 350
  • Temperatura máxima de funcionamiento: 60
  • Temperatura mínima de funcionamiento: -25
  • Para tipo de fluido: Hydraulic oil according to DIN 51524, Water Glycol
  • Material de la junta: NBR, FPM
  • Peso: 1.3 kg
  • Material del cuerpo: Cast iron

Descripción completa del producto

Parker's proven pneumatically controlled, direct operated directional control valves series D1VA in size NG06 / CETOP 03 / NFPA D03 provide a reliable and efficient control where pneumatic supply is available. They can also be applied as cost-effective alternative to explosion-proof valves for use in hazardous areas.

Markets:
• Industrial

Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics
• Various spools and spool position options - fits all hydraulic systems
• Optimum price/performance ratio - especially for use in areas where explosion proof standards are required
• Short delivery time - no warehousing necessary

Applications:
• Suitable for general hydraulic applications

Technical specifications:
The D1VA is technically based on the standard D1VW directional control valve design. The main spool is operated via an auxiliary spool of larger diameter. Thus enables low operating pressures from 3 to 5 bar. The valve is pneumatically connected via threads G1/8 in the end caps.

Documentos relacionados

Literature and Reference Materials
CATALOGUE - Hydraulic Valves Industrial Standard, Offline Version--MSG11-3500/UK
CATALOGUE - Hydraulic Valves Industrial Standard, Online Version--MSG11-3500/UK
CATALOGUE - Pilot Operated Directional Control Valve Series D1VA (Europe and Asia)
GENERAL INSTRUCTIONS - for Industrial Hydraulic Valves
Air Operated Directional Control Valve Catalog - D1VA Series (North America)
Compliance, Certifications & Safety
CERTIFICATE - DIN ISO 9001:2015 Certificate ISDE
CERTIFICATE - Position Paper ISDE 2006/42/EC and EN ISO 13849
×
Ver catálogos
compartir / correo electrónico
Imprimir

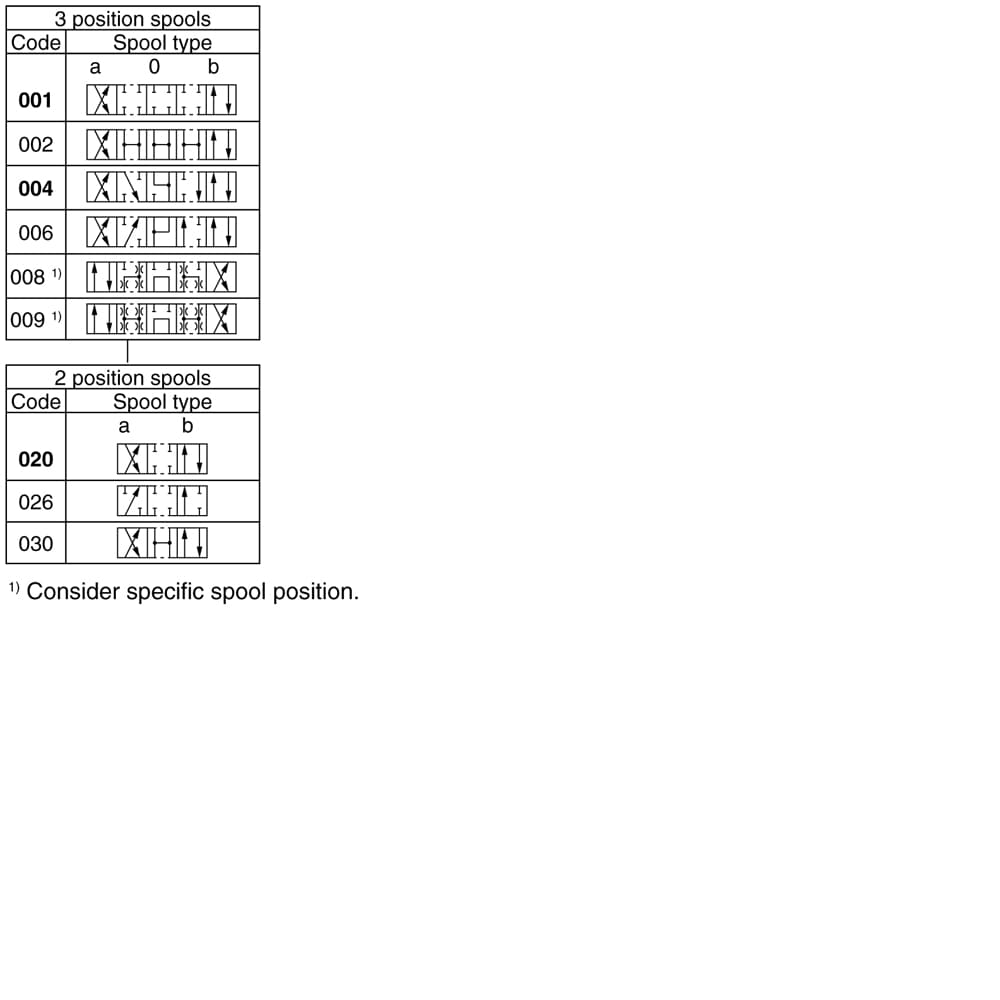

Productos Material de la junta Posición del carrete Código del carrete
D1VA001CN4L NBR 3 positions, spring offset in position 0, operated in position a or b 001
D1VA001EN4L NBR 2 positions, spring offset in position 0, operated in position a 001
D1VA002CN4L NBR 3 positions, spring offset in position 0, operated in position a or b 002
D1VA002EN4L NBR 2 positions, spring offset in position 0, operated in position a 002
D1VA002FN4L NBR 2 positions, operated in position 0, spring offset in position b 002
D1VA004CN4L NBR 3 positions, spring offset in position 0, operated in position a or b 004
D1VA004EN4L NBR 2 positions, spring offset in position 0, operated in position a 004
D1VA004EV4L FPM 2 positions, spring offset in position 0, operated in position a 004
D1VA006CN4L NBR 3 positions, spring offset in position 0, operated in position a or b 006
D1VA008CN4L NBR 3 positions, spring offset in position 0, operated in position a or b 008
D1VA009CN4L NBR 3 positions, spring offset in position 0, operated in position a or b 009
D1VA020BN4L NBR 2 positions, spring offset in position b, operated in position a 020
D1VA020BV4L FPM 2 positions, spring offset in position b, operated in position a 020
D1VA020DN4L NBR 2 positions, detent, operated in position a or b, no center position, no offset position 020
D1VA020HN4L NBR 2 positions, spring offset in position a, operated in position b 020
D1VA026BN4L NBR 2 positions, spring offset in position b, operated in position a 026
D1VA026BV4L FPM 2 positions, spring offset in position b, operated in position a 026
D1VA026HN4L NBR 2 positions, spring offset in position a, operated in position b 026
D1VA030BN4L NBR 2 positions, spring offset in position b, operated in position a 030
D1VA030HN4L NBR 2 positions, spring offset in position a, operated in position b 030
D1VA001FN4L NBR 2 positions, operated in position 0, spring offset in position b 001
D1VA001KN4L NBR 2 positions, spring offset in position 0, operated in position b 001
D1VA004CV4L FPM 3 positions, spring offset in position 0, operated in position a or b 004
D1VA001CV4L FPM 3 positions, spring offset in position 0, operated in position a or b 001
