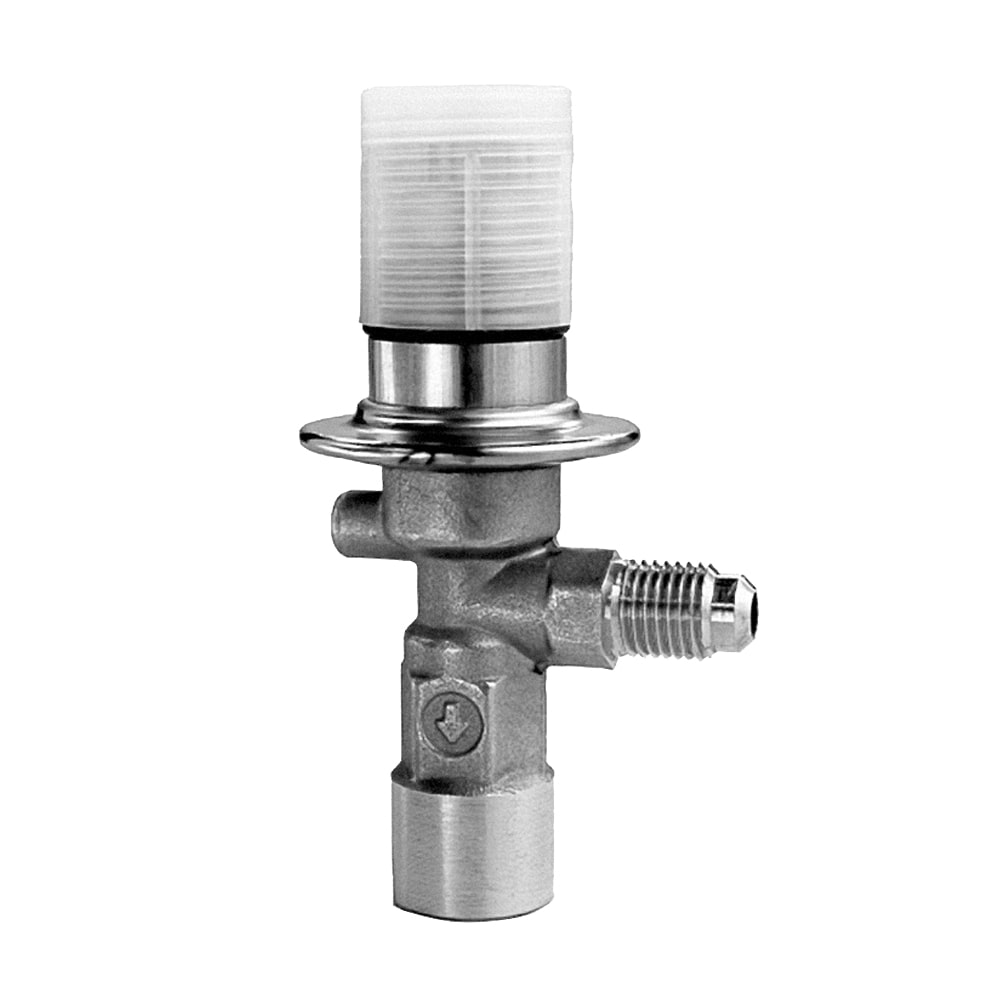

Automatic Expansion Valves- Parker A Series | #040054-01


LOADING IMAGES
040054-01
Click to View CAD Model

Automatic Expansion Valves- Parker A Series | #040054-01

A1 40 OUTPSI F2X2 PX2


Technical Specifications

  • Outlet Connection: 1/4" NPTF
  • Inlet Connection: 1/4" SAE
  • Valve Option: N/A
  • Orifice: B
  • Type: A1
  • Refrigerant Type: R-134A, R-22, R-404A
  • Strainer Type: Without Strainer
Safety Warning

Item Information

The Parker A Series automatic expansion valves (AXV) regulate downstream pressure in a refrigeration system. They all feature a 0-90 psig adjustment range.

Markets:

• Air Conditioning
• Refrigeration – Food Retail
• Transportation
• Industrial – Food Storage units

Features and Benefits:

• 0-90 psig adjustment range
• Bypass bleeds available
• Construction: Brass, copper, and stainless steel
• Maximum operating pressure of 500 psig high side, 225 psig low side

Applications:

• Ice Cream/Slush Machines (A1, A2, A3, A4, AS, A7, AT)
• Hot Gas Bypass (A1, A2, A3, A4, AS, A7, AT)
• Freeze Protection (A1, A2, A3, A4, AS, A7, AT)
• Refrigerant Reclaim (A1, A2, A3, A4, AS, A7, AT)
• PTAC/PTHP (AT, A7)
• High Cycle (AT, A7)
• Ice Machines (A1, A2, A3, A4, AS)

Read More Show Less
