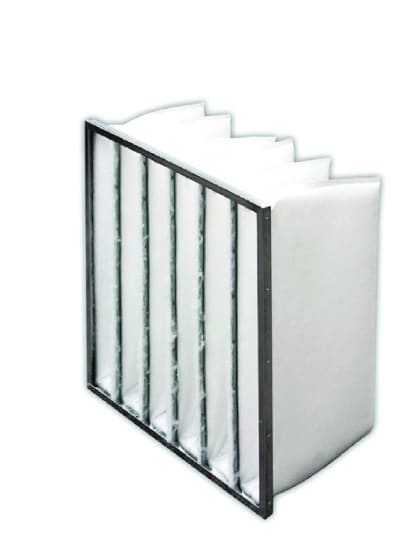

clearcurrent HSD Coalescing Bag Filters

Where to Buy

The clearcurrent HGE filter is a G4-rated (EN779) 24" deep pocket filter.

Technical Specifications

Brand: Clearcurrent
Division: Gas Turbine Filtration Division
Industry: Power Generation
Application: Landbased
Technology: Filtration
Product Type: Filter Bag, Filter Panel
Product Style: Pre-filter Bag
Media: 100% Synthetic
Flow Rate: 3400 m3/hour, 2000 CFM
Filter Efficiency Rating: G4, MERV 8
Materials of Construction: Galvanised G90
Operating Temperature: -40 to 70 °C, -40 to 158 °F
Outside Diameter: n/a
Inside Diameter: n/a
Height: 592 to 596 mm
Width: 543 to 592 mm
Depth: 620 mm
Weight: 2.2 kg, 4.9 lb

Full Product Description

The clearcurrent HSD filters are rated as G4, according to EN779 ensuring sufficient protection for high efficiency filters.
They are made of synthetic media pockets, which offer extended surface area, benefiting in low pressure loss across the filter and extended service life, even when operating in wet conditions. A metallic filter frame provides strength and stability for the filter pockets, even during operation in extreme conditions.
Features/Benefits:
• Low pressure loss
• Quick filter change-out reduces manpower and maintenance costs
• Offers good protection for the downstream high efficiency filters
• Easily disposable by incineration
Applications:

Pre-filter, multi-stage static filtration system

HSD/006199F

HSD/006289F
