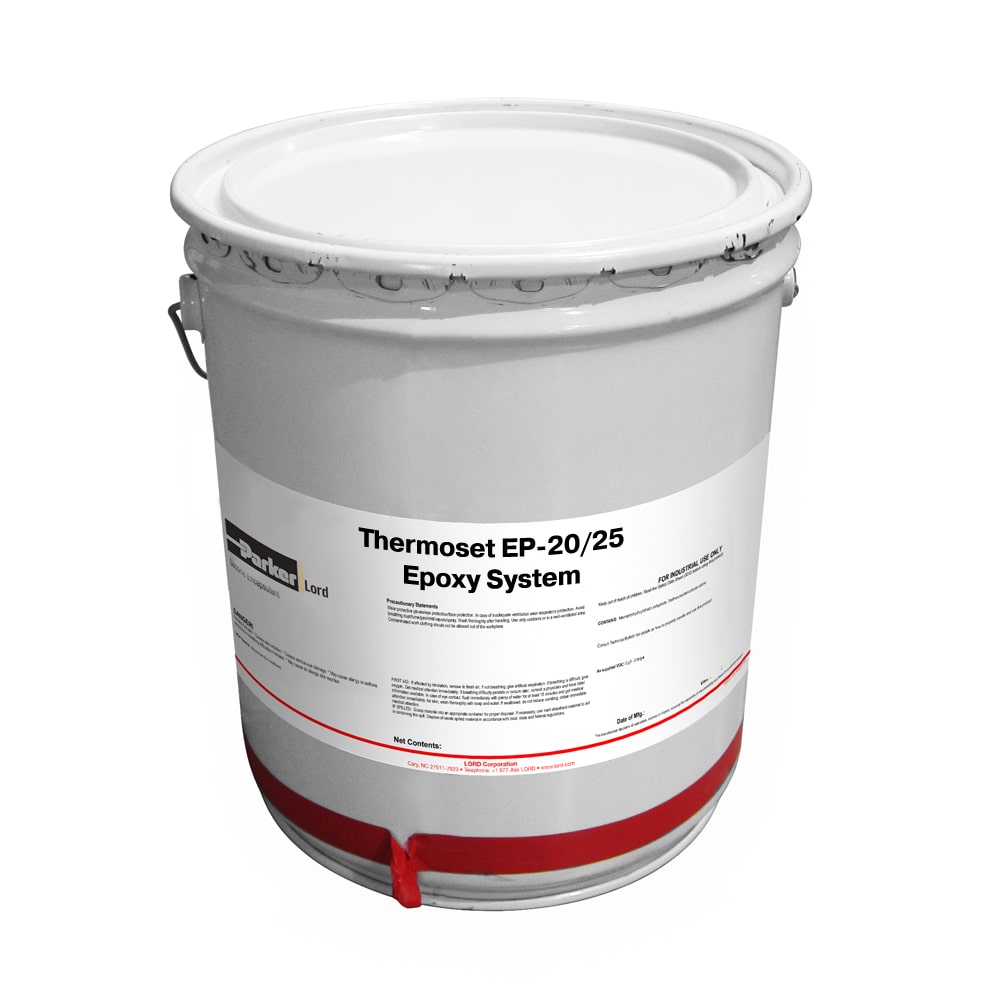

Thermoset EP-20/25 Epoxy System

Thermoset EP-20/25 Epoxy System

Thermoset EP-20/25 epoxy system is a two-component, general purpose system for use in many applications including adhesive, laminating and electrical/electronic insulation.

Technical Specifications

  • Dynamic Viscosity: 13000 cP @ 77°F (25°C) (resin), 5000 cP @ 77°F (25°C) (hardener)
  • Hardness: 80 Shore D
  • Cure Time: 24 Hours @ 77°F (25°C)
  • Working Time: 5 min @ 77°F (25°C)
  • Color: Black Liquid (resin), Clear Amber Liquid (hardener)
Safety Warning

Full Product Description

Thermoset EP-20/25 epoxy system is a two-component, general purpose system for use in many applications including adhesive, laminating and electrical/electronic insulation.

Features and Benefits:
• Excellent Appearance – cures to a high gloss surface, free of “sweat-out”; exhibits good mar resistance.
• Fast Cure – rapidly cures at room temperature (25°C).
• Moisture Insensitive – cured properties obtained even when cured in high humidity conditions.

Shelf Life/Storage:
Shelf life of Thermoset EP-20 resin is two years when stored at 25°C in original, unopened container. The material container must be periodically rotated to prevent settling.
Shelf life of Thermoset Hardener No. 25 is one year when stored in a well ventilated area at 25°C in original,unopened container.
