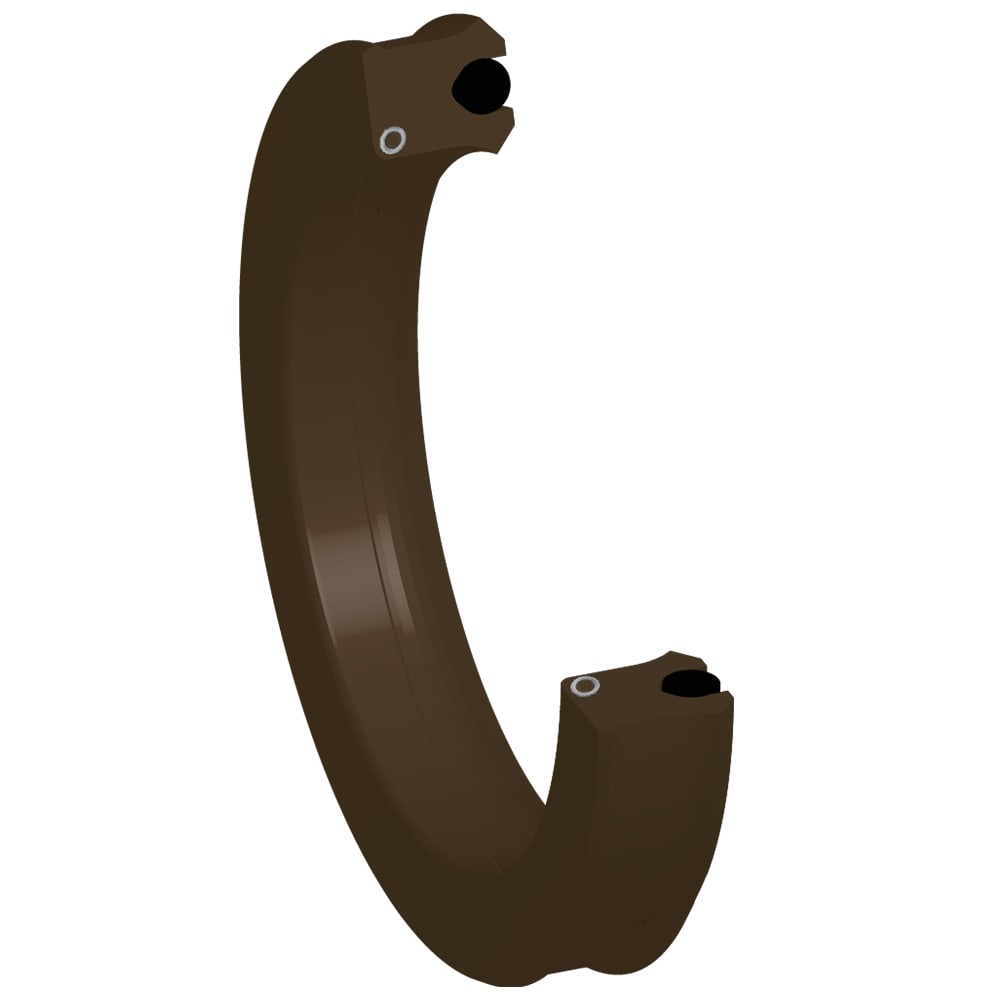

Parker's next generation CK Profile choke and kill rod seal is a proven subsea marine riser solution capable of reliably sealing in deep subsea high pressure, high temperature environments.  Capable of sealing to 20,000 psi, the CK Profile is manufactured from high performance elastomeric materials independently certified to meet the stringent requirements of API 16C Annex B for subsea marine riser applications

The rectangular shaped cross section ensures stability in the gland. A stabilizing lip is located just above the base of the seal, to provide enhanced sealing performance and prevent corrosion from harsh subsea environments.  Non-galling, PEEK-coated stainless steel anti-extrusion springs are molded-in to the heel of the seal to prevent extrusion under high pressure and temperatures.

Features of the CK Profile include
•    Validated to 20,000 psi working pressure
•    Temperature capable from 35°F to 350°F at 20ksi
•    Seal geometry and elastomer validated per API Specification 16C, Annex B, Sections B.9.4.3 and B.9.4.4
•    Elastomer materials qualified to API 16C (10% sour gas)
•    Worldwide availability

Standard Materials (Shell or Seal Body):
VG109 (FKM), 90 Shore A hardness

Energizer Spring Element Materials:
V1289 (FKM), 75 Shore A hardness

Anti Extrusion Device:
Non-galling PEEK-coated stainless steel spring

Typical applications:
•    Marine riser choke and kill equipment
