Ethylene Propylene Rubber O-Ring, 70 Shore A, General Industrial and Consumer Applications (Prädifa Series E9330-70)

Where to Buy

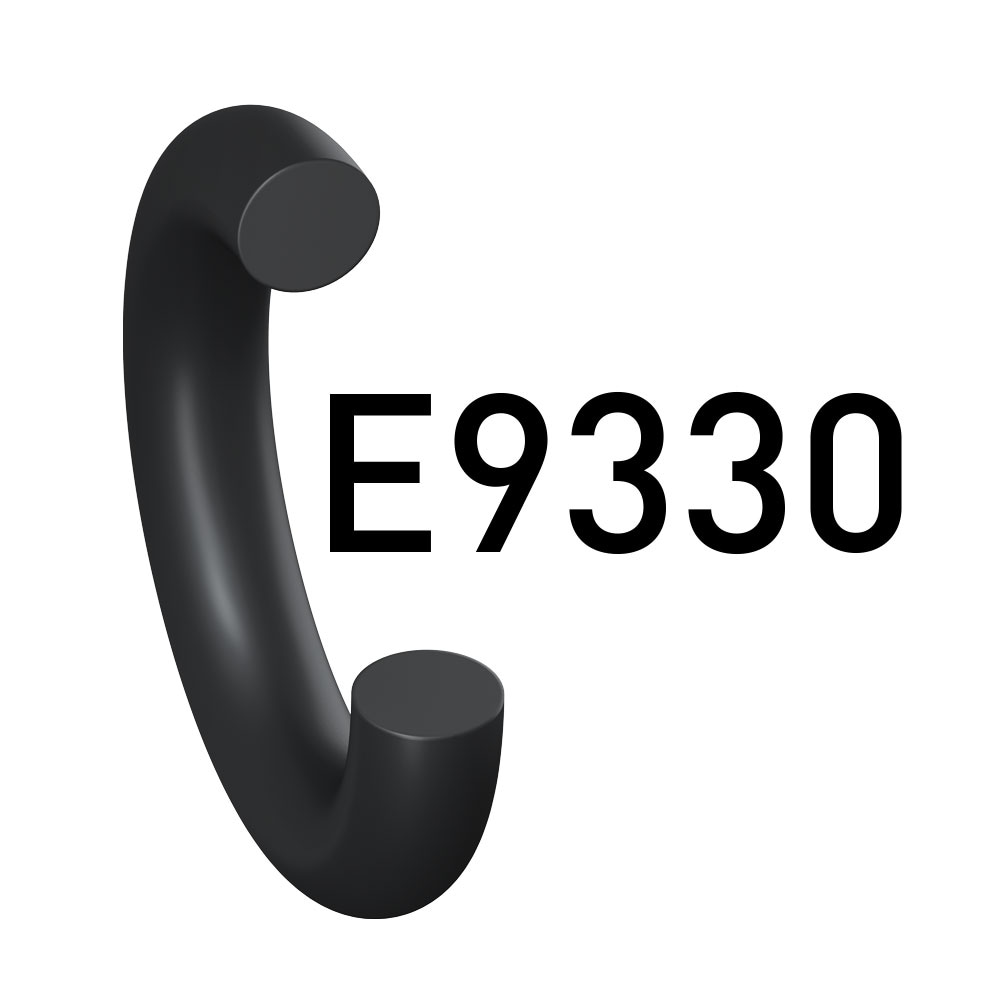

EPDM O-Ring with focus on heating ventilation air conditioning (HVAC) and refrigeration, consumer, general industrial and hydrogen applications, black.

Technical Specifications

Inside Diameter: n/a
Cross Section Width: n/a
Industry: General Industrial
Polymer Material Options: Ethylene Propylene Rubber (EPM, EPR, EPDM)
Minimum Operating Temperature: -58 °F, -50 °C
Maximum Operating Temperature: 302 °F, 150 °C
Durometer: 70 Shore A
Region of Origin: Europe
Color: Black
Trade Name: E9330-70, E9330

Full Product Description

The Parker Prädifa ethylene propylene rubber E9330-70 is suitable for a wide range of applications.

Special Features:
• Very good mechanical robustness
• Excellent resistance against water/glycol and acids, cleaning agents, many polar solvents
• Long life time

Chemical Resistance to:

• Air (oil-free)

• Steam

• Water

• Glysantin G48/water

• Water/glycol (1/1)

• R134a

• HFO1234yf

• Hydrochloric acid (3-molar)

• Hydrochloric acid (concentrated)

• Acetic acid (1-molar)

• AdBlue® urea / water (32,5/67,5)

• Ammonia 33%

• Methanol

• Ethanol

• Methyl-ethyl-ketone (MEK)

• Acetone

• DOT-4

• HEPG / Polyalkylene glycols

• HFC (Water/polyglycol)

• Ozone

• Hydrogen
