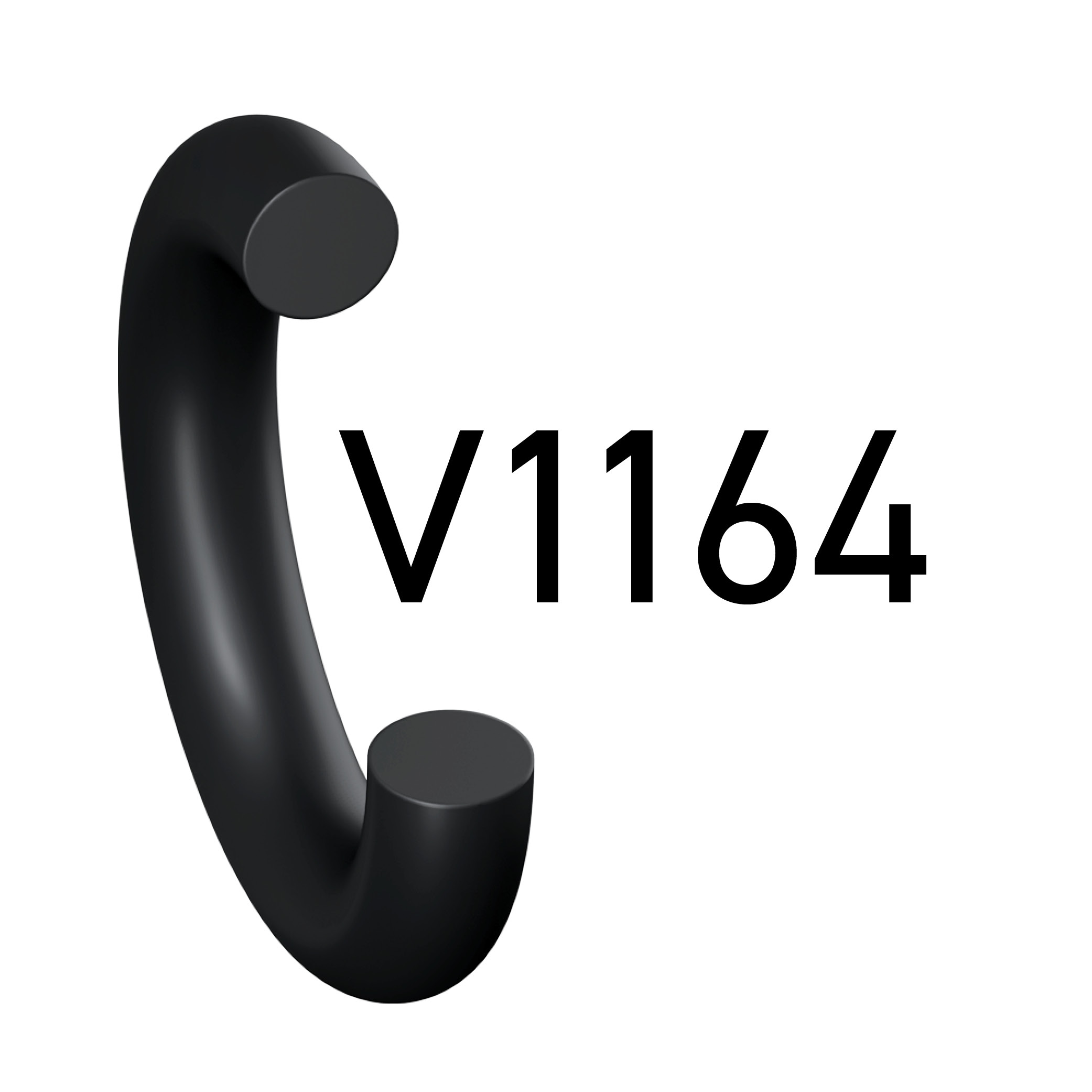

Fluorocarbon 75 Durometer O-Ring, Low Compression (V1164-75 GP)

Fluorocarbon 75 Durometer O-Ring, Low Compression (V1164-75 GP) OBSOLETE

Note: This product is no longer available - please contact us for further assistance.

Technical Specifications

  • Specifications Met: n/a
  • Inside Diameter: 0.029 to 25.940 inch
  • Width: 0.04 to 0.275 inch
  • Polymer Material Options: Fluorocarbon Rubber (FKM, FPM)
  • Minimum Operating Temperature: -15 °F
  • Maximum Operating Temperature: 400 °F
  • Durometer: 75 Shore A
  • For Fluid Type: Broad Range
  • Industry: General
  • Region of Origin: North America
  • Internally Lubricated: No
  • Color: Black
  • Thermal Application Type: High Temperature (260 to 400°F)

Full Product Description

Parker's Fluorocarbon 75 Durometer O-Ring, Low Compression (V1164-75 GP) has excellent compression set resistance coupled with the wide chemical resistance expected for a viton type of material.

Certifications include:
• UL listing

Chemical resistance
• Mineral oil and grease, ASTM oil No. 1, and IRM 902 and IRM 903 oils
• Non-flammable hydraulic fluids (HFD)
• Aerospace fuel systems and engine oil systems
• Mineral and vegetable oil and grease
• Aliphatic hydrocarbons (butane, propane, natural gas)
• Aromatic hydrocarbons (benzene, toluene)
• Chlorinated hydrocarbons (trichloroethylene and carbon tetrachloride)
• Gasoline (including high alcohol content)
• High vacuum
• Very good ozone, weather and aging resistance


Not compatible with:
• Glycol based brake fluids
• Ammonia gas, amines, alkalis
• Superheated steam
• Low molecular weight organic acids (formic and acetic acids)

*Custom sizes and coatings/markings are available upon request. Contact Parker O-Ring Division at 859-269-2351 for design and pricing assistance.
