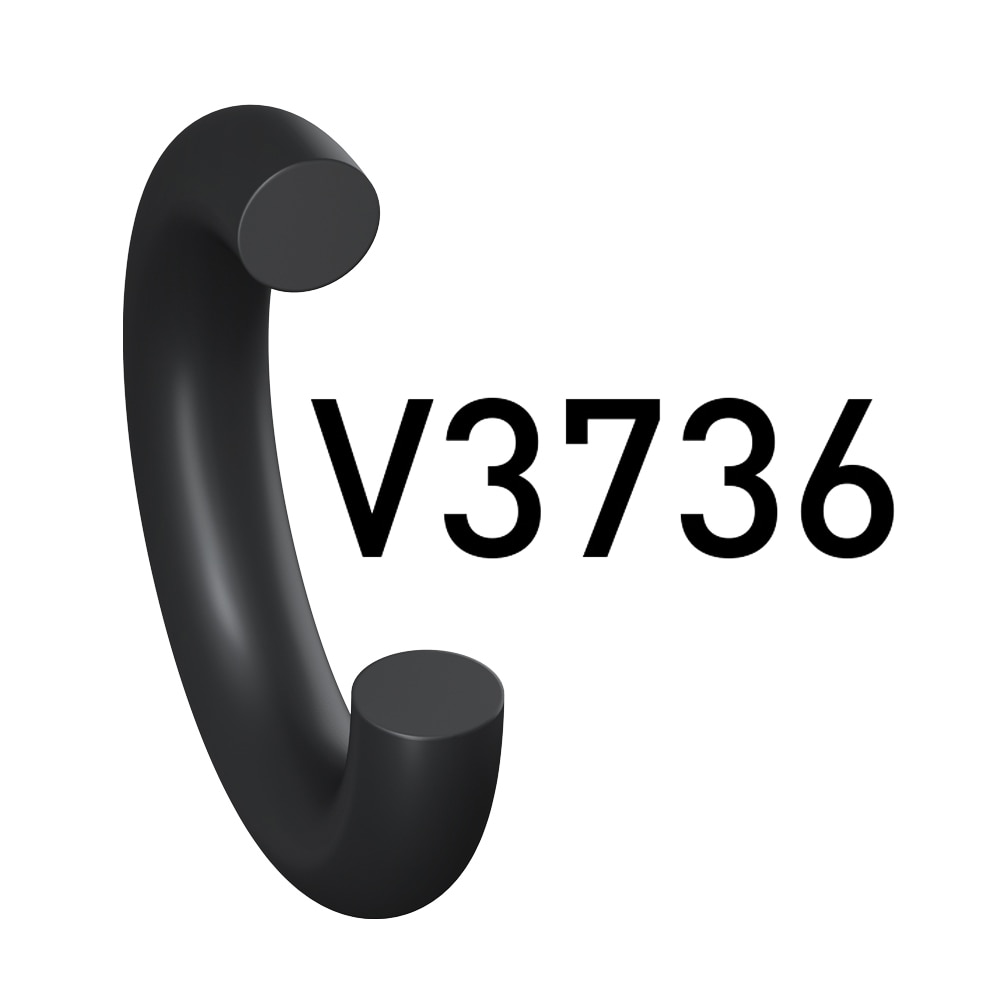

Fluorocarbon O-Ring, 75 Shore A, Automotive Applications (Prädifa Series V3736-75)

Fluorocarbon O-Ring, 75 Shore A, Automotive Applications (Prädifa Series V3736-75)

Where to Buy

FKM O-ring, for fuel injector systems, very good cold flexibility, black.

Technical Specifications

  • Polymer Material Options: Fluorocarbon Rubber (FKM, FPM)
  • Trade Name: V3736, V3637-75
  • Thermal Application Type: High Temperature (260 to 400°F), High Temperature (125 to 200°C)
  • Minimum Operating Temperature: -13 °F, -25 °C
  • Maximum Operating Temperature: 392 °F, 200 °C
  • Durometer: 75 Shore A
  • For Fluid Type: Broad Range
  • Industry: Automotive
  • Specifications Met: None, AS 528, ISO 3601, BS 1806, BS 4518, JIS B2401, NF T 47-501, SMS 1586
  • Region of Origin: Europe
  • Internally Lubricated: No
  • Color: Black
  • Inside Diameter: 0.7 to 996 mm
  • Width: 0.5 to 9.5 mm

Full Product Description

The Parker Prädifa fluorocarbon rubber V3736-75 is suitable for automotive applications where a very good cold flexibility is required.

Special Features:
• Very good cold flexibility
• Very good mechanical rebustness
• Good resistance to gap extrusions
• Good life time

Chemical Resistance to:
• Air (oil-free)
• Compressed air (oily)
• Fuel C
• Diesel (water-free)
• RME (water-free)
• Petrol (unleaded)
• FAM A (test fluid no. 1, DIN ISO 1817)
• Ethane
• Benzene
• Natural gas
• Petroleum (sulphur-free)
• Mineral oils (tests with NBR-1/ECI recommended prior to use with dynamic seals)
• Petroleum-based lubricating oils

Related Documents

Literature and Reference Materials
Aerospace Reference Guide--5800
O-Ring Guide-- PTD5712
O-Ring Handbook--PTD5705
Parker O-Ring eHandbook
Parker Tracking System and RFID Technology
Compound Data Sheet FKM V3736
Compound Data Sheet FKM V8792
Installation Guidelines for O-Rings--ODE5705
Training
Basic Technical Glossary -- seal technology training
Introduction to Sealing -- seal technology training
Parker´s O-Ring Selector Video
Compliance, Certifications & Safety
How to read a test report
Prop 65 General Statement
Product Demos & Tutorials
How to Properly Store and Clean Elastomer Seals
Mixing the right ingredients: Material Development at Parker-Prädifa
Parker Final Exam in Physics / Sealing Systems Put to the Test
Selector Guides
Healthcare and Life Sciences Solutions - Medical Devices Manufacturing Products
O-Ring Selector Tool (Metric)
Communities, Blogs & Industry Links
O-Rings Knowledge Base
×
View Catalog
Share / Email
Print
Products Inside Diameter (mm) Width (mm)
020145V3736 64.77 2.62
020148V3736 69.52 2.62
020150V3736 72.69 2.62
020151V3736 75.87 2.62
020332V3736 59.69 5.33
