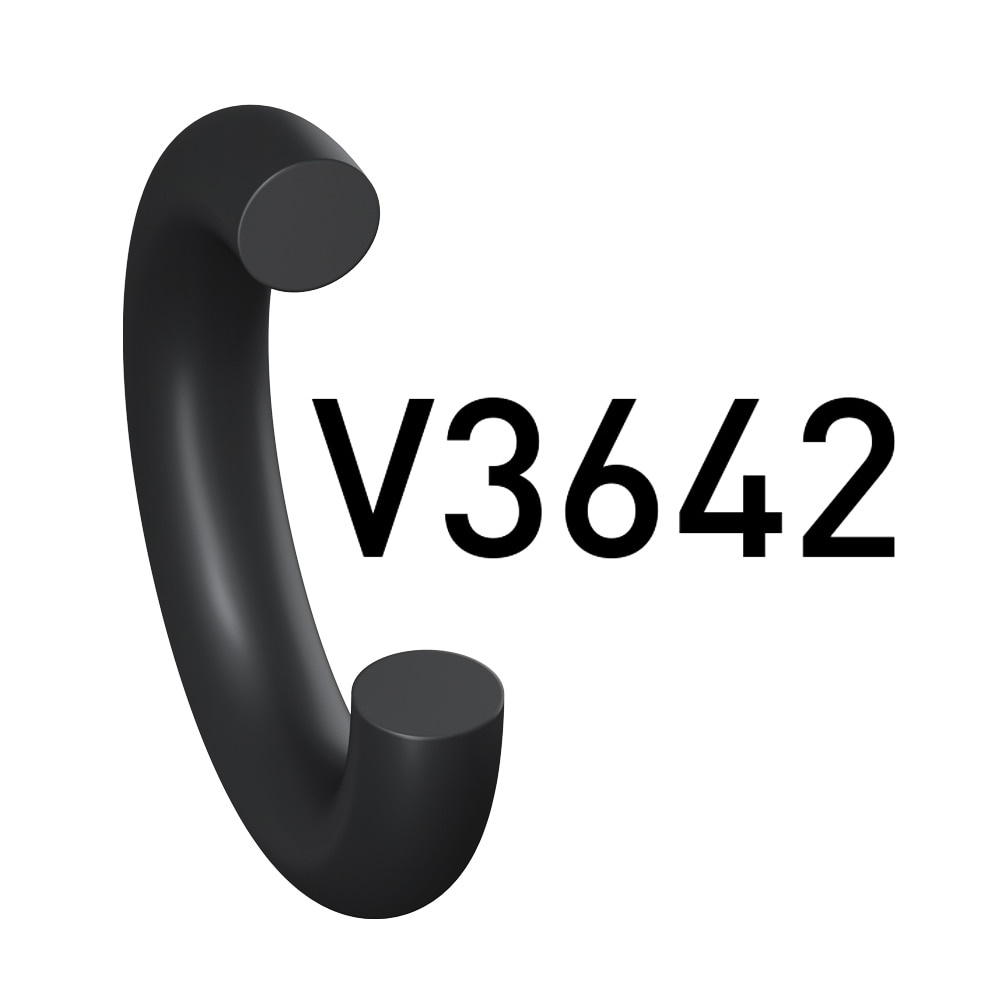

Fluorocarbon O-Ring, 75 Shore A, Automotive and Chemical Applications (Prädifa Series V3642-75)

Fluorocarbon O-Ring, 75 Shore A, Automotive and Chemical Applications (Prädifa Series V3642-75)

Where to Buy

FKM O-ring with improved media resistance, black.

Technical Specifications

  • Industry: Chemical Processing
  • Polymer Material Options: Fluorocarbon Rubber (FKM, FPM)
  • Trade Name: V3642, V3642-75
  • Thermal Application Type: High Temperature (260 to 400°F), High Temperature (125 to 200°C)
  • Minimum Operating Temperature: -13 °F, -25 °C
  • Maximum Operating Temperature: 392 °F, 200 °C
  • Durometer: 75 Shore A
  • For Fluid Type: Broad Range
  • Specifications Met: None, AS 528, ISO 3601, BS 1806, BS 4518, JIS B2401, NF T 47-501, SMS 1586
  • Region of Origin: Europe
  • Internally Lubricated: No
  • Color: Black
  • Inside Diameter: 0.7 to 996 mm
  • Width: 0.5 to 9.5 mm

Full Product Description

The Parker Prädifa fluorocarbon rubber V3642-75 is suitable for applications with demanding media.

Special Features:
• Very good mechanical robustness
• Good resistance to gap extrusion
• Long life time

Chemical Resistance to:
• Air (oil-free)
• Compressed air (oily)
• Fuel C
• Diesel (water-free)
• RME (water-free)
• Petrol (unleaded)
• FAM A (test fluid no. 1, DIN ISO 1817)
• Ethane
• Benzene
• Natural gas
• Petroleum (sulphur-free)
• Mineral oils (tests with NBR-1/ECI recommended prior to use with dynamic seals)
• Petroleum-based lubricating oils
