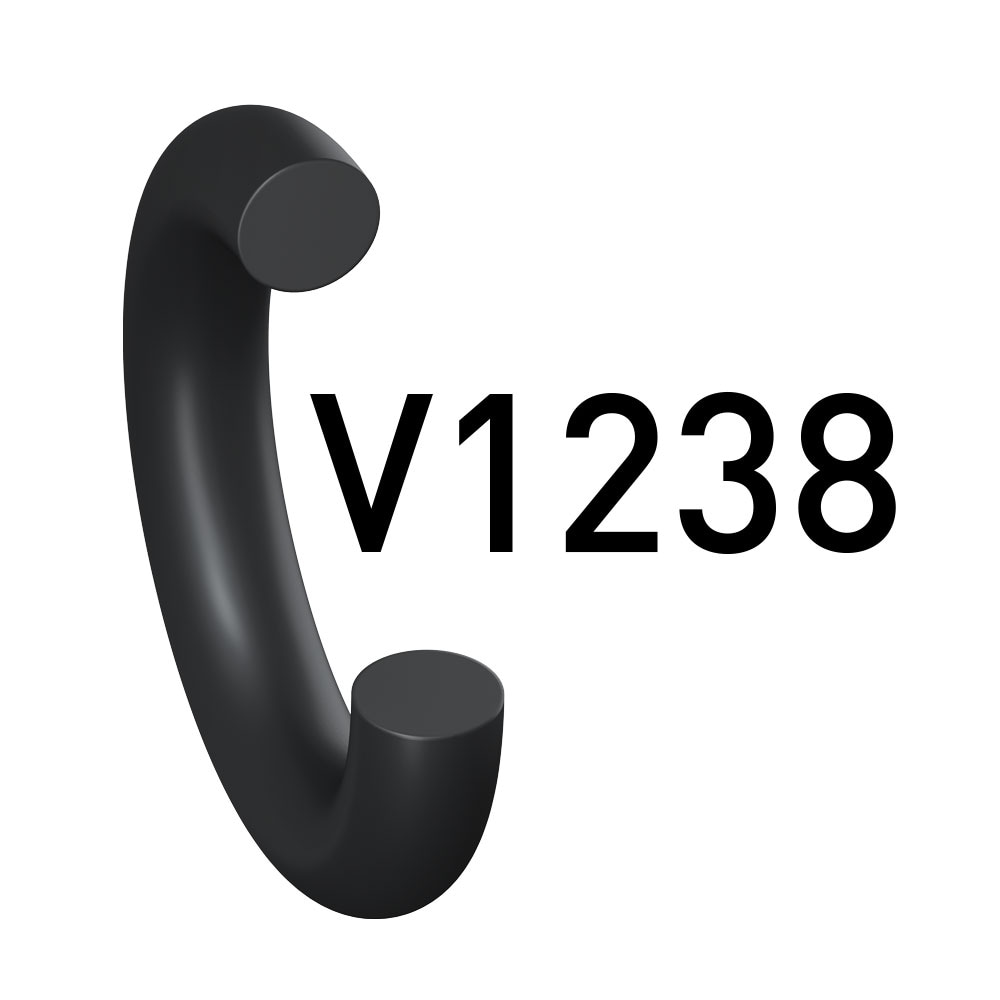

Fluorocarbon O-Ring, 95 Shore A, Oil & Gas Applications (Prädifa Series V1238-95)

Fluorocarbon O-Ring, 95 Shore A, Oil & Gas Applications (Prädifa Series V1238-95)

Where to Buy

FKM O-ring with focus on explosive decompression and oil & gas applications, black.

Technical Specifications

  • Cross Section Width: n/a
  • Inside Diameter: n/a
  • Polymer Material Options: Fluorocarbon Rubber (FKM, FPM)
  • Minimum Operating Temperature: -25 °C, -12 °F
  • Maximum Operating Temperature: 200 °C, 392 °F
  • Durometer: 95 Shore A
  • For Fluid Type: Broad Range
  • Industry: Oil & Gas, General Industrial
  • Region of Origin: Europe
  • Color: Black
  • Trade Name: V1238-95, V1238

Full Product Description

The Parker Prädifa fluorocarbon rubber V1238-95 is suitable for explosive decompression and oil & gas applications.

Special Features:
• Very good resistance against explosive decompression
• Excellent mechanical robustness
• Very good resistance to gap extrusion
• Long life time

Chemical Resistance to:
• Air (oil-free)
• Compressed air (oily)
• Water vapour
• Water
• Fuel C
• Diesel (water-free)
• RME (water-free)
• Petrol (unleaded)
• FAM A (test fluid no. 1, DIN ISO 1817)
• Ethane
• Benzene
• Natural gas
• Petroleum (sulphur-free)
• Mineral oils (tests with NBR-1 / ECI recommended prior to use with dynamic seals)
• Petroleum-based lubricating oils

Related Documents

Literature and Reference Materials
Aerospace Reference Guide--5800
Parker O-Ring eHandbook
Parker Tracking System and RFID Technology
Training
Basic Technical Glossary -- seal technology training
Introduction to Sealing -- seal technology training
Compliance, Certifications & Safety
How to read a test report
Prop 65 General Statement
Selector Guides
Healthcare and Life Sciences Solutions - Medical Devices Manufacturing Products
Communities, Blogs & Industry Links
O-Rings Knowledge Base
×
View Catalog
Share / Email
Print
Products Cross Section Width Inside Diameter (mm) Width (mm)
060427V1238 57 3
061415V1238 97 4
V1238 6-069 5 1.5
V1238 6-2287 422 8
V1238 6-2288 519 8
V1238 6-2289 620 8
020344V1238 5.33 mm 97.79
020380V1238 5.33 mm 291.47
020382V1238 5.33 mm 329.57
020386V1238 5.33 mm 430.66
