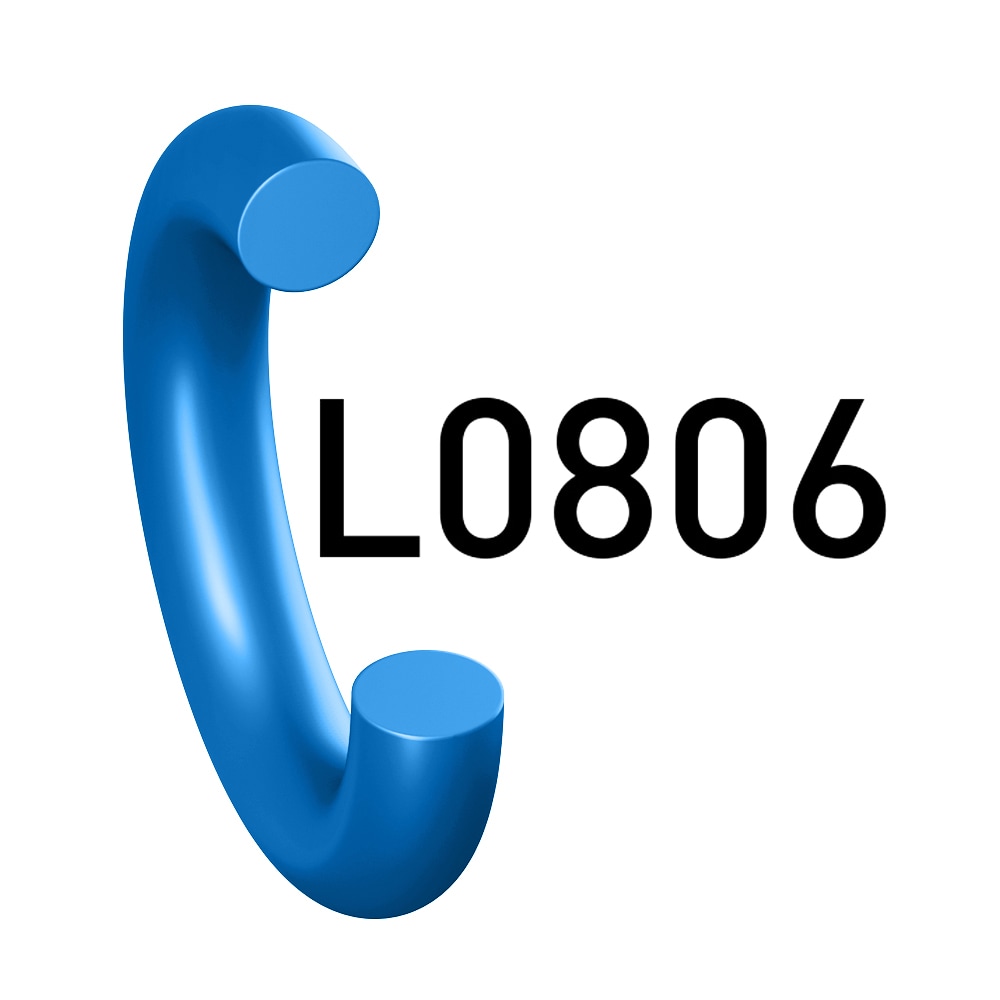

Fluorosilicone Rubber O-Ring, 80 Shore A, Demanding Applications (Prädifa Series L0806-80)

Fluorosilicone Rubber O-Ring, 80 Shore A, Demanding Applications (Prädifa Series L0806-80)

Where to Buy

FVMQ O-ring, excellent cold flexibility with equally excellent resistance to demanding media environment, blue.

Technical Specifications

  • Inside Diameter: 3.68 to 164.77 mm, 0.145 to 6.487 inch
  • Polymer Material Options: Fluorosilicone Rubber (FVMQ)
  • Maximum Operating Temperature: 170 °C, 338 °F
  • Durometer: 80 Shore A
  • Minimum Operating Temperature: -60 °C, -76 °F
  • For Fluid Type: Fuel
  • Industry: Aerospace
  • Specifications Met: WL 5.5813, AS 528, ISO 3601, BS 1806, BS 4518, JIS B2401, NF T 47-501, SMS 1586
  • Region of Origin: Europe
  • Color: Blue
  • Cross Section Width: 1.78 to 3.53 mm, 0.07 to 0.139 inch
  • Trade Name: L0806, L0806-80

Full Product Description

The Parker Prädifa fluorosilicone rubber L0806-80 is suitable for automotive, general industrial and aerospace.

Special Features:
• Excellent cold flexibility
• Very good biofuel and biodiesel resistance
• Long life time

Chemical Resistance to:
• Air (oil-free)
• Compressed air (oily)
• Water
• Fuel C
• Diesel (water-free)
• RME (water-free)
• Petrol (unleaded)
• Ethanol
• FAM A (test fluid no. 1, DIN ISO 1817)
• FAM B (test fluid no. 2, DIN ISO 1817)
• Glysantin G48/water
• Water/glycol (1/1)
• Methanol
• Benzene
• Petroleum (sulphur-free)
• DOT-4
• PAO (Polyalphaolefines)

Related Documents

Literature and Reference Materials
Aerospace Reference Guide--5800
O-Ring Guide-- PTD5712
O-Ring Handbook--PTD5705
Parker O-Ring eHandbook
Parker Tracking System and RFID Technology
Compound Data Sheet FVMQ L0806
Installation Guidelines for O-Rings--ODE5705
Training
Basic Technical Glossary -- seal technology training
Introduction to Sealing -- seal technology training
Parker´s O-Ring Selector Video
Compliance, Certifications & Safety
How to read a test report
Prop 65 General Statement
Product Demos & Tutorials
How to Properly Store and Clean Elastomer Seals
Mixing the right ingredients: Material Development at Parker-Prädifa
Parker Final Exam in Physics / Sealing Systems Put to the Test
Selector Guides
Healthcare and Life Sciences Solutions - Medical Devices Manufacturing Products
O-Ring Selector Tool (Metric)
Communities, Blogs & Industry Links
O-Rings Knowledge Base
×
View Catalog
Share / Email
Print
Products Inside Diameter (mm) Cross Section Width
020007L0806 3.68 1.78 mm
020014L0806 12.42 1.78 mm
060907L0806 6.8 1.8 mm
020114L0806 15.54 2.62 mm
020123L0806 29.82 2.62 mm
020165L0806 164.77 2.62 mm
020256L0806 145.64 3.53 mm
020258L0806 151.99 3.53 mm
