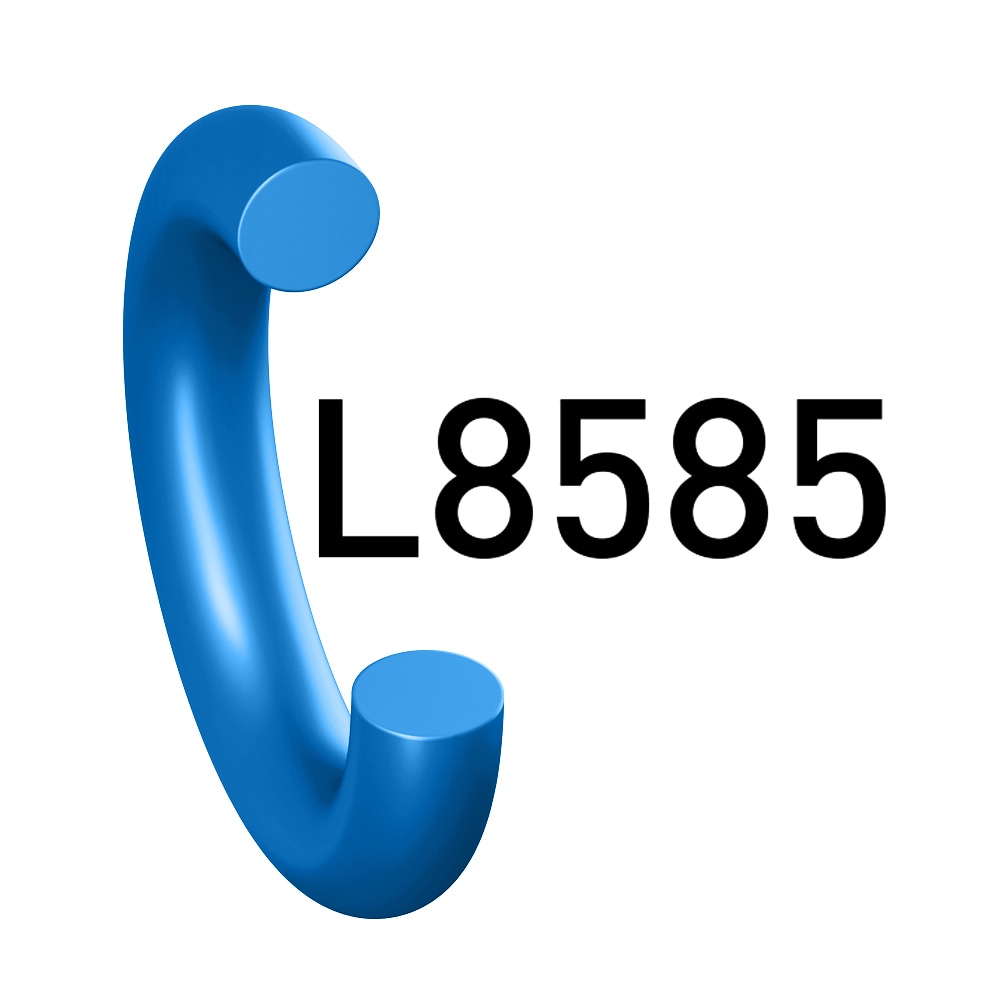

Fluorosilicone Rubber O-Ring, 80 Shore A, Demanding Applications (Prädifa Series L8585-80)

Fluorosilicone Rubber O-Ring, 80 Shore A, Demanding Applications (Prädifa Series L8585-80)

Where to Buy

FVMQ O-ring, excellent cold flexibility with equally excellent resistance to demanding media environment, blue.

Technical Specifications

  • Polymer Material Options: Fluorosilicone Rubber (FVMQ)
  • Minimum Operating Temperature: -60 °C, -76 °F
  • Maximum Operating Temperature: 170 °C, 338 °F
  • Durometer: 80 Shore A
  • For Fluid Type: Fuel
  • Industry: Aerospace
  • Specifications Met: NSA 8200, NSA 8203, NF L17-261 Category 61D8, AS 528, ISO 3601, BS 1806, BS 4518, JIS B2401, NF T 47-501, SMS 1586
  • Region of Origin: Europe
  • Color: Blue
  • Inside Diameter: 145.72 mm, 171.12 mm
  • Cross Section Width: 2.62 mm
  • Trade Name: L8585, L8585-80

Full Product Description

The Parker Prädifa fluorosilicone rubber L8585-80 is suitable for general industry sensors, automotive and aerospace applications.

Special features:
• Very good mechanical robustness
• Good resistance to gap extrusion
• Long life time

Chemical resistance to:
• Air (oil-free)
• Compressed air (oily)
• Water
• Fuel C
• Diesel (water-free)
• RME (water-free)
• Petrol (unleaded)
• Ethanol
• FAM A (test fluid no. 1, DIN ISO 1817)
• FAM B (test fluid no. 2, DIN ISO 1817)
• Glysantin G48/water
• Water/glycol (1/1)
• Methanol
• Petroleum (sulphur-free)
• DOT-4
• PAO (Polyalphaolefines)
