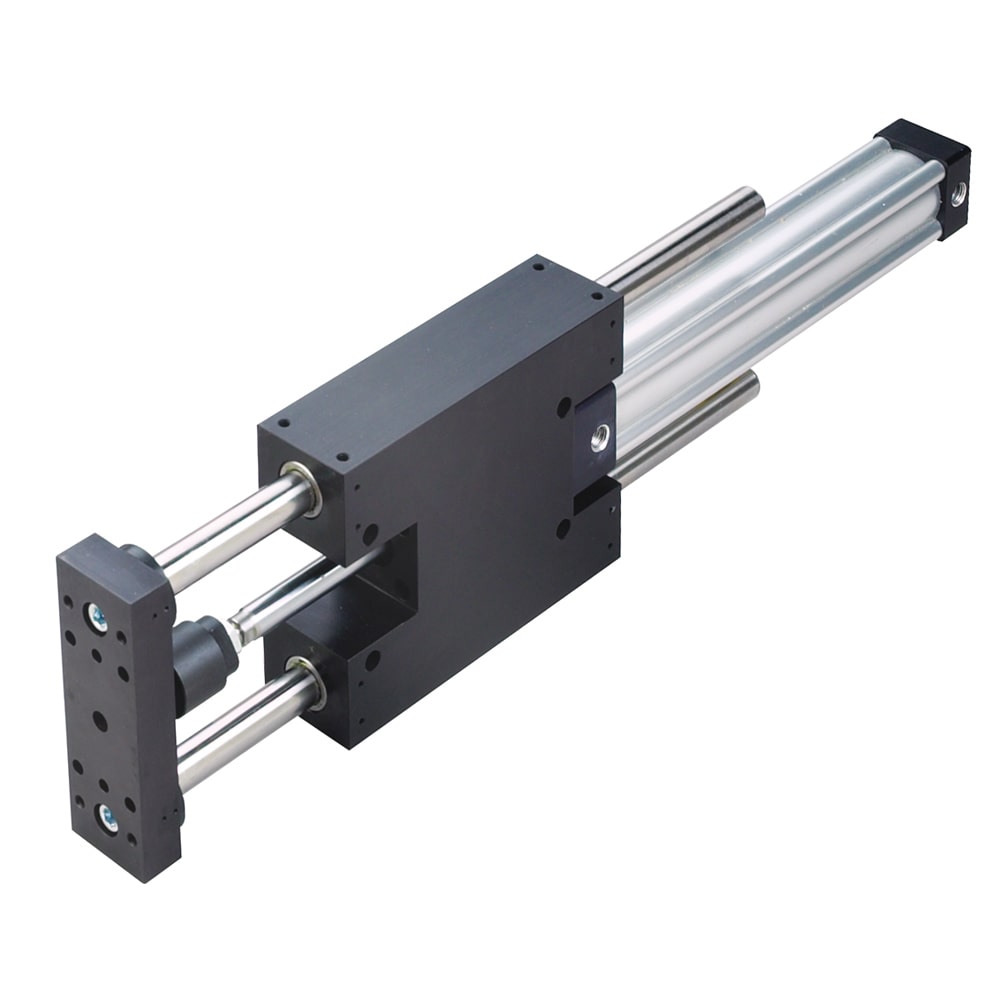

The HBR series linear slides are capable of handling heavy duty guided linear motion applications.  The HBR, or ""reach"" version, is designed to extend and retract a load beyond the support point into the work area. Two parallel precision ground case hardened, or stainless steel, support shafts are guided by four linear bushings and incorporated into the body assembly.  The bearings are prelubricated to provide millions of trouble-free cycles. Composite bushings with standard or oversized shafting or linear ball bearings are available.

The HBR series features a machined, anodized one-piece aluminum body with tapped and counterbored through holes for mounting flexibility. Standard dowel pin holes provide precision mounting for the body and tool plate. The power behind the HBR series is Parker's premium NFPA aluminum, steel, or ISO cylinder. The HBR utilizes an alignment coupler which prevents the piston rod from deflecting under high loads or long strokes. Standard piston wear bands allow the piston rod assembly to ""float"" in the bore thereby eliminating metal-to-metal contact. The result is dramatically greater cylinder seal life especially when the support shafts deflect under load. This ensures very long cylinder life with reduced maintenance and downtime. Available options include 3-position cylinders and slides without cylinders. Consult factory for other application needs.

Markets:
• Industrial
• Factory Automation
• Automotive

Features/Benefits:
• Durable construction and design
• Increased seal life
• Metal-to-metal contact eliminated for increased productivity
• Less maintenance and downtime
• Flexible mounting ability

Applications:
• General industrial
• Assembly
• Conveyence
