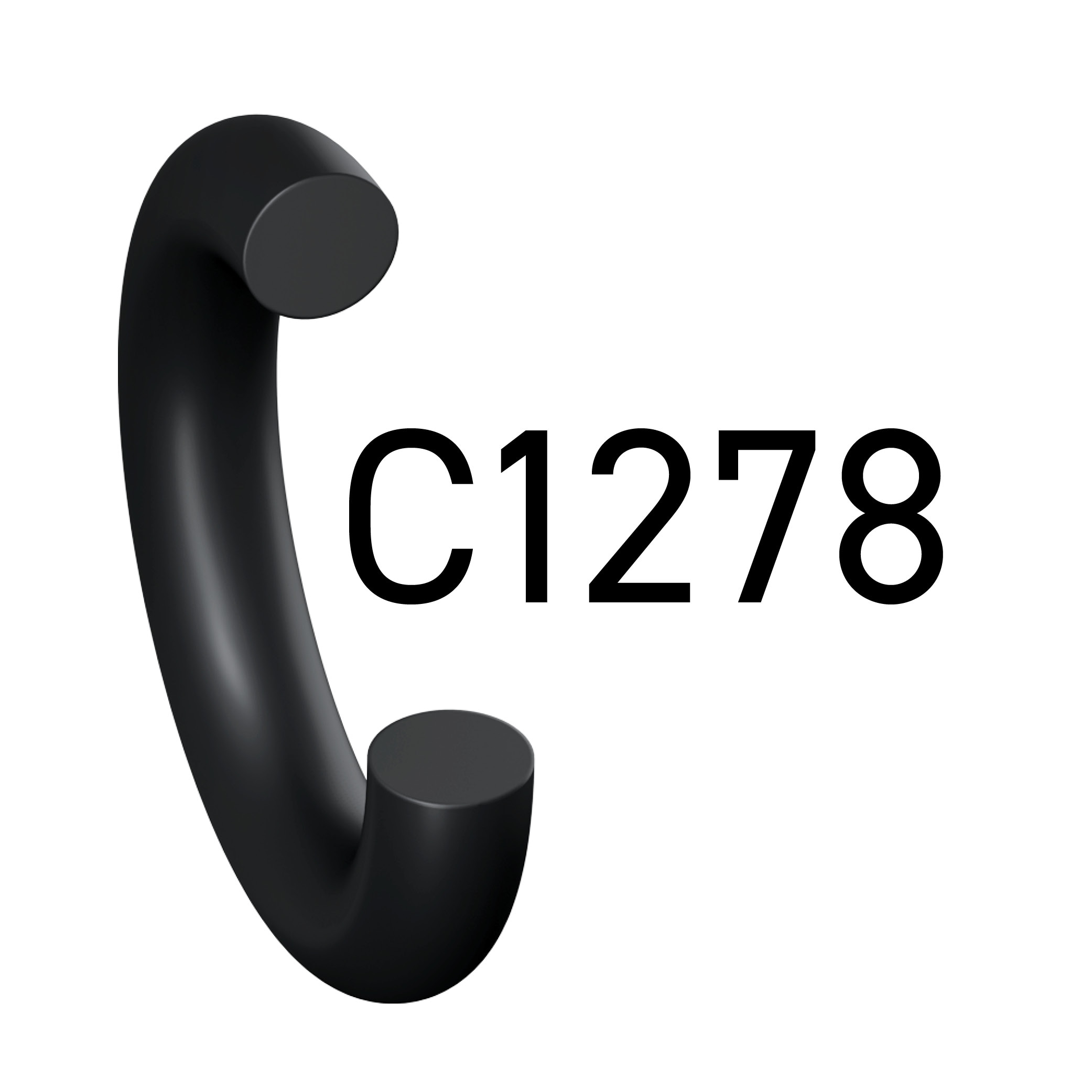

Polychloroprene 80 Durometer O-Ring, Low Compression (C1278-80)

Polychloroprene 80 Durometer O-Ring, Low Compression (C1278-80)

Parker's polychloroprene rubber (CR) O-rings are compatible with oils and gases.

Technical Specifications

  • Inside Diameter: 0.029 to 25.940 inch
  • Width: 0.04 to 0.275 inch
  • Polymer Material Options: Polychloroprene Rubber (CR, Neoprene)
  • Minimum Operating Temperature: -35 °F
  • Maximum Operating Temperature: 250 °F
  • Durometer: 80 Shore A
  • Specifications Met: None
  • Region of Origin: North America
  • Internally Lubricated: No
  • Color: Black
  • Thermal Application Type: Standard (-30 to 250°F)
  • For Fluid Type: Refrigerants

Full Product Description

Parker's Polychloroprene was the first synthetic rubber developed commercially and exhibits generally good ozone, aging and chemical resistance. It has good mechanical properties over a wide temperature range.

• Heat resistance
• Up to approximately 121°C (250°F)
• Cold flexibility
• Down to approximately -40°C (-40°F)
• Chemical resistance
• Paraffin based mineral oil with low DPI, e.g. ASTM oil No. 1
• Silicone oil and grease
• Water and water solvents at low temperatures
• Refrigerants
• Ammonia
• Carbon dioxide
• Improved ozone, weathering and aging resistance compared with nitrile
• Limited compatibility
• Naphthalene based mineral oil (IRM 902 and IRM 903 oils)
• Low molecular weight aliphatic hydrocarbons
(propane, butane, fuel)
• Glycol based brake fluids

Not compatible with:
• Aromatic hydrocarbons (benzene)
• Chlorinated hydrocarbons (trichloroethylene)
• Polar solvents (ketones, esters, ethers)
• Used for Low Compression Set
