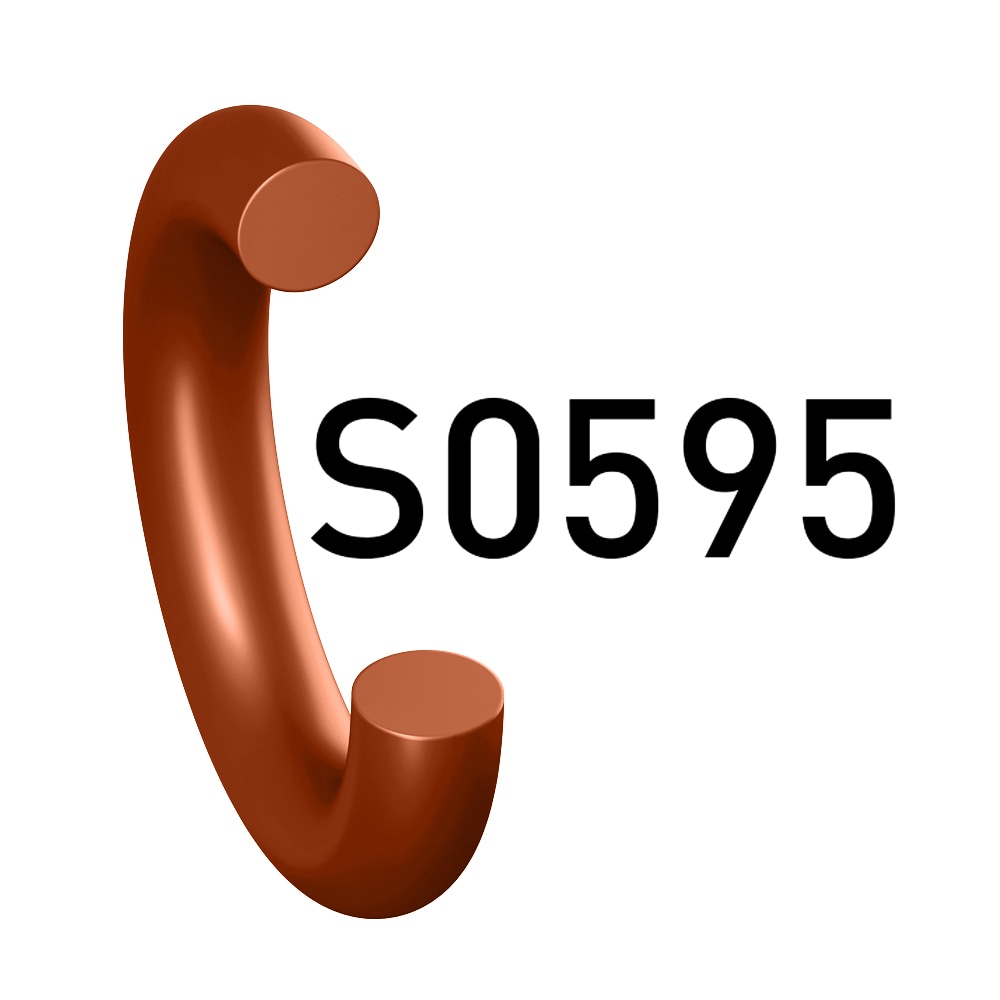

Silicone Rubber O-Ring, 50 Shore A, Broad Applicability (Prädifa Series S0595-50)

Silicone Rubber O-Ring, 50 Shore A, Broad Applicability (Prädifa Series S0595-50)

Where to Buy

VMQ O-ring, balanced media compatibility combined with excellent low-temperature performance and life-time durability, red.

Technical Specifications

  • Industry: Aerospace, Automotive, General Industrial, Industrial Manufacturing Equipment
  • Inside Diameter: 1.78 to 46.02 mm
  • Cross Section Width: 1.78 to 3.53 mm
  • Polymer Material Options: Silicone Rubber (VMQ, PVMQ)
  • Brand: Parker, Prädifa
  • Division: Prädifa Technology Division
  • Minimum Operating Temperature: -67 °F, -55 °C
  • Maximum Operating Temperature: 392 °F, 200 °C
  • Durometer: 50 Shore A
  • Technology: Sealing & Shielding
  • Product Type: O-Ring
  • For Fluid Type: Broad Range
  • Specifications Met: AMS3302, AS 528, ISO 3601, BS 1806, BS 4518, JIS B2401, NF T 47-501, SMS 1586
  • Region of Origin: Europe
  • Color: Red
  • Trade Name: S0595, S0595-50

Full Product Description

The Parker Prädifa silicone rubber S0595-50 is suitable for a wide range of low-temperature static applications.

Special Features:
• Excellent cold flexibility
• Long life time

Chemical Resistance to:
• Air (oil-free)
• Compressed air (oily)
• Water
• Glysantin G48/water
• Water/glycol (1/1)
• Methanol
• Ethanol
• DOT 4
• PAO (Polyalphaolefines)

Related Documents

Literature and Reference Materials
Aerospace Reference Guide--5800
O-Ring Guide-- PTD5712
O-Ring Handbook--PTD5705
Parker O-Ring eHandbook
Parker Tracking System and RFID Technology
Compound Data Sheet VMQ S0595
Training
Basic Technical Glossary -- seal technology training
Introduction to Sealing -- seal technology training
Parker´s O-Ring Selector Video
Compliance, Certifications & Safety
How to read a test report
Prop 65 General Statement
Product Demos & Tutorials
How to Properly Store and Clean Elastomer Seals
Mixing the right ingredients: Material Development at Parker-Prädifa
Parker Final Exam in Physics / Sealing Systems Put to the Test
Selector Guides
Healthcare and Life Sciences Solutions - Medical Devices Manufacturing Products
O-Ring Selector Tool (Metric)
Communities, Blogs & Industry Links
O-Rings Knowledge Base
×
View Catalog
Share / Email
Print
Products Cross Section Width Inside Diameter
020012S0595 1.78 9.25
020030S0595 1.78 41
060154S0595 1.78 36.3
060159S0595 3.53 46.02
020206S0595 3.53 12.29
