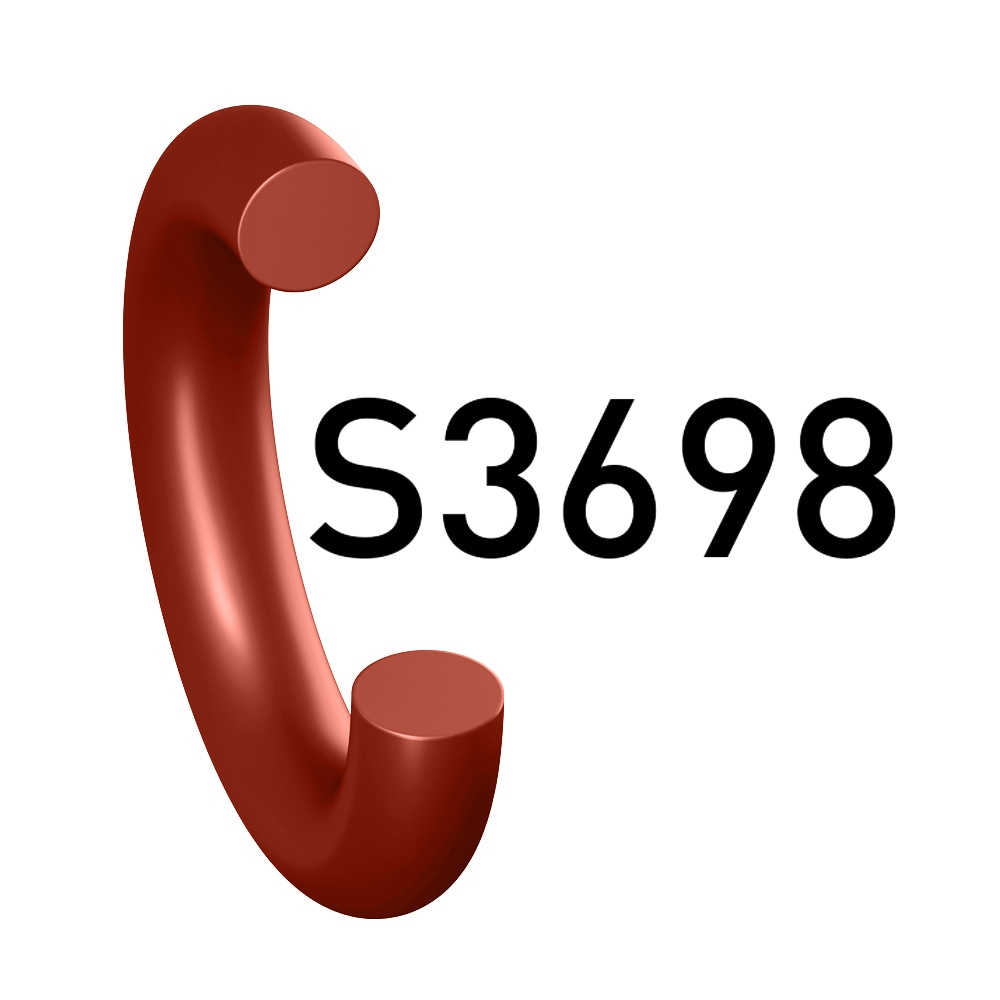

Liquid Silicone Rubber O-Ring, 70 Shore A, Broad Applicability (Prädifa Series S3698-70)

Liquid Silicone Rubber O-Ring, 70 Shore A, Broad Applicability (Prädifa Series S3698-70)

Where to Buy

LSR O-ring, balanced media compatibility combined with excellent low-temperature performance and life-time durability, reddish brown.

Technical Specifications

  • Inside Diameter: 0.7 to 996 mm
  • Industry: Fluidpower
  • Polymer Material Options: Liquid Silicone Rubber (LSR)
  • Trade Name: S3698, S3698-70
  • Thermal Application Type: Low Temperature (< -22°F), Low Temperature (<-30C)
  • Minimum Operating Temperature: -58 °F, -50 °C
  • Maximum Operating Temperature: 392 °F, 200 °C
  • Durometer: 70 Shore A
  • For Fluid Type: Broad Range
  • Specifications Met: None, FDA, BfR, (EC) No. 1935/2004, AS 528, ISO 3601, BS 1806, BS 4518, JIS B2401, NF T 47-501, SMS 1586
  • Region of Origin: Europe
  • Internally Lubricated: No
  • Color: Reddish Brown
  • Width: 0.5 to 9.5 mm

Full Product Description

The Parker Prädifa silicone rubber S3698-70 is suitable for a wide range of low-temperature static applications.

Special features:
• Excellent cold flexibility
• Long life time

Chemical resistance to:
• Air (oil-free)
• Compressed air (oily)
• Water
• Glysantin G48/water
• Water/glycol (1/1)
• Methanol
• Ethanol
• DOT 4
• PAO (Polyalphaolefines)

Related Documents

Literature and Reference Materials
Aerospace Reference Guide--5800
O-Ring Guide-- PTD5712
O-Ring Handbook--PTD5705
Parker O-Ring eHandbook
Parker Tracking System and RFID Technology
Compound Data Sheet LSR S3698
Installation Guidelines for O-Rings--ODE5705
Training
Basic Technical Glossary -- seal technology training
Introduction to Sealing -- seal technology training
Parker´s O-Ring Selector Video
Compliance, Certifications & Safety
How to read a test report
Prop 65 General Statement
Product Demos & Tutorials
How to Properly Store and Clean Elastomer Seals
Mixing the right ingredients: Material Development at Parker-Prädifa
Parker Final Exam in Physics / Sealing Systems Put to the Test
Selector Guides
Healthcare and Life Sciences Solutions - Medical Devices Manufacturing Products
O-Ring Selector Tool (Metric)
Communities, Blogs & Industry Links
O-Rings Knowledge Base
×
View Catalog
Share / Email
Print
Products Inside Diameter (mm) Width (mm)
060425S3698 18 3
060426S3698 25 4
