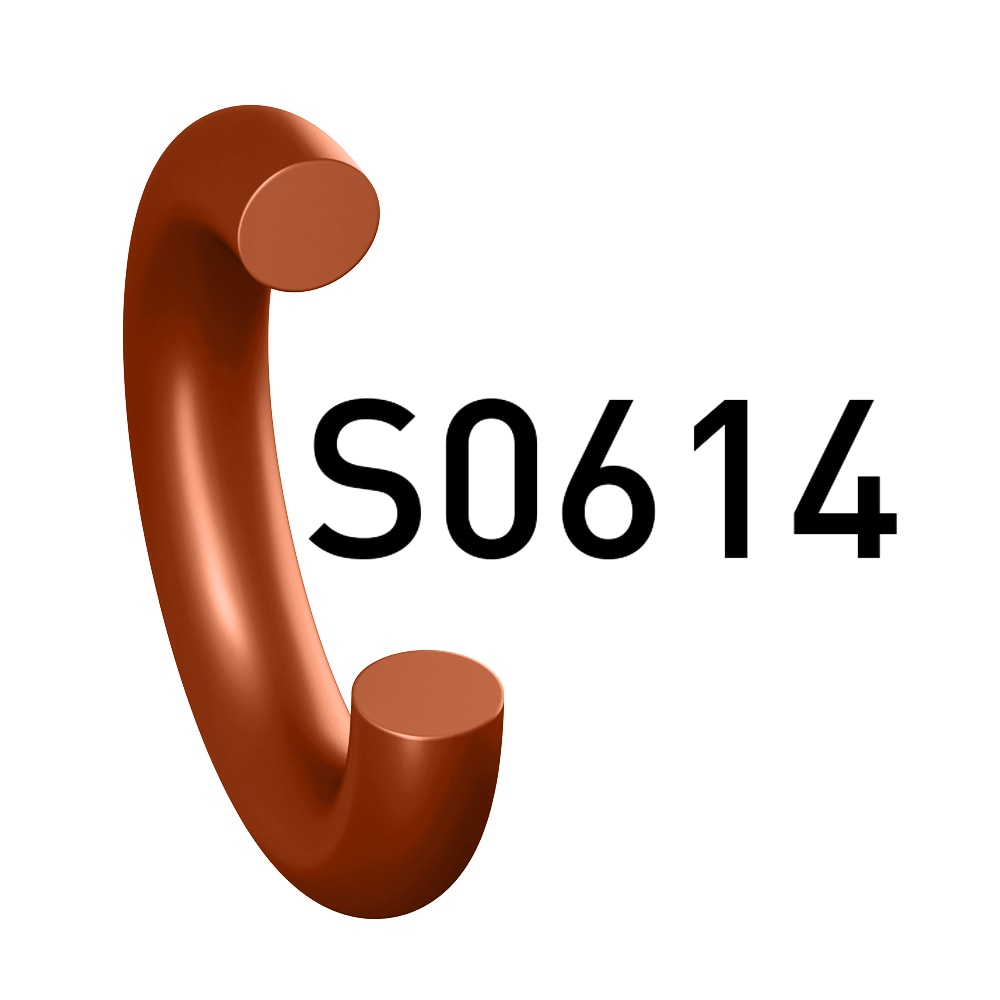

Silicone Rubber O-Ring, 80 Shore A, Broad Applicability (Prädifa Series S0614-80)

Silicone Rubber O-Ring, 80 Shore A, Broad Applicability (Prädifa Series S0614-80)

Where to Buy

VMQ O-ring, balanced media compatibility combined with excellent low-temperature performance and life-time durability, red.

Technical Specifications

  • Brand: Parker, Prädifa
  • Division: Prädifa Technology Division
  • Industry: Automotive, General Industrial, Aerospace
  • Durometer: 80 Shore A
  • Application: General Industrial, Industrial Manufacturing Equipment
  • Technology: Sealing & Shielding
  • Product Type: O-Ring
  • For Fluid Type: Broad Range
  • Specifications Met: AMS3305, WL 5.5814, AS 528, ISO 3601, BS 1806, BS 4518, JIS B2401, NF T 47-501, SMS 1586
  • Color: Red
  • Polymer Material Options: Silicone Rubber (VMQ, PVMQ)
  • Cross Section Width: 1 to 2 mm
  • Inside Diameter: 8 to 22 mm
  • Region of Origin: Europe
  • Trade Name: S0614, S0614-80
  • Maximum Operating Temperature: 392 °F, 200 °C
  • Minimum Operating Temperature: -67 °F, -55 °C

Full Product Description

The Parker Prädifa silicone rubber S0614-80 is suitable for a wide range of low-temperature static applications.

Special Features:
• Excellent cold flexibility
• Long life time

Chemical Resistance to:
• Air (oil-free)
• Compressed air (oily)
• Water
• Glysantin G48/water
• Water/glycol (1/1)
• Methanol
• Ethanol
• DOT 4
• PAO (Polyalphaolefines)
