Parker's PFX30 delivers robustness and improved service life in the Ultra High Pressure waterblast applications. The series is compliant with ISO23384 and DIN EN 1829-2.
"Parker's PFX30 hose series (3010 bar) delivers robustness and improved service life in the ultra-high pressure waterblast market. For extreme conditions with increased abrasion requirements a ToughJACKET TM version PFX30-TJ with a second cover is also available. PFX30 series incorporates an orange cover according WJTA color coding.
Qualified with standard 2X fitting Series, customers can select from a wide range of available connection types.
Markets:
• Waterblast/Waterjet
• Hydrodemolition
• Construction
Applications:
• Industrial cleaning equipment
Features/Benefits:
• Suitable for applications up to 3010 bar (43645 psi)
• According to ISO 23384 and DIN EN 1829-2
• Visual pressure indication increases safety
• Long life time & reduced machine down time in critical applications and in harsh environments
• Visual inspection of wear possible, that acts as a warning indicator of hose abrasive wear
• Less weight and drag, making it easier for operators to maneuver the hose, less operator fatigue

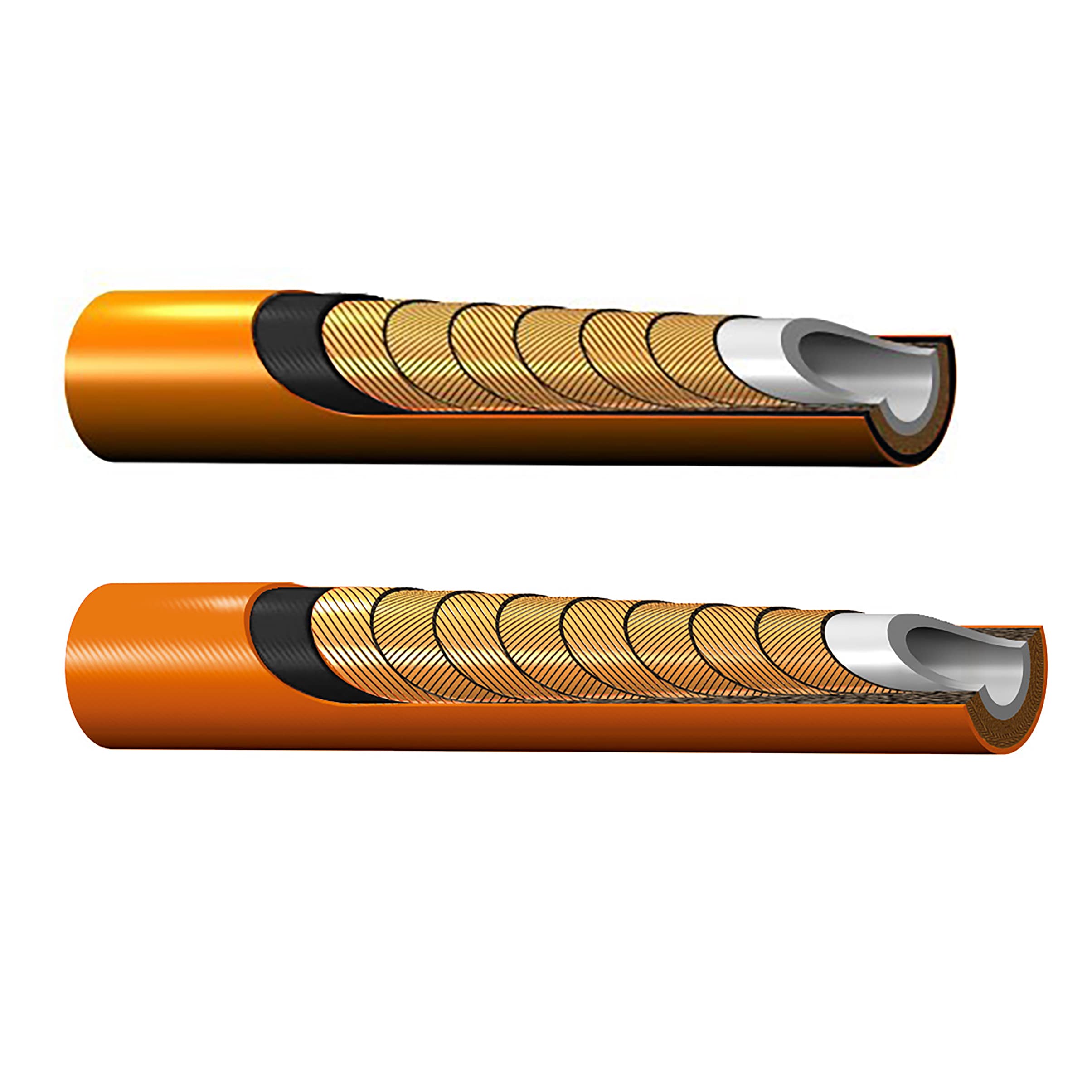

Technical Specifications:
• Inner tube: POM
• Pressure reinforcement: six / eight spiral layers of maximum tensile steel wire
• Cover: polyamide
• TOUGHJACKET on request (second outer cover layer that contrasts with the outer cover color)
• Standard color: orange
• Temperature range: -10°C to +70°C"
| Literature and Reference Materials |
|---|
| Parker Thermoplastic Hoses for Ultra High Pressure Catalog_4462_UK--(English) |
| Produkter | Slanghölje, typ | Maximalt drifttryck | Utvändig diameter |
|---|---|---|---|
| PFX30-05 | Standard | 3010 BAR | 18.7 mm |
| PFX30-05-TJ | Double cover ToughJACKET™ | 3010 BAR | 22.7 mm |
| PFX30-025 | Standard | 3010 BAR | 12.0 mm |
| PFX30-03 | Standard | 3010 BAR | 13.3 mm |
| PFX30-03-TJ | Double cover ToughJACKET™ | 3010 BAR | 17.3 mm |
| PFX30-06 | Standard | 3010 BAR | 22.7 mm |
| PFX30-06-TJ | Double cover ToughJACKET™ | 3010 BAR | 26.7 mm |
| PFX30-08 | Standard | 3010 BAR | 29.9 mm |
| PFX30-08-TJ | Double cover ToughJACKET™ | 3010 BAR | 34.0 mm |
| PFX30-025-PL | Prolance | 3010 BAR | 9.9 mm |
