Flange seal Prädifa series NAI, FlexiSeal®

Email Print

Click for Larger View

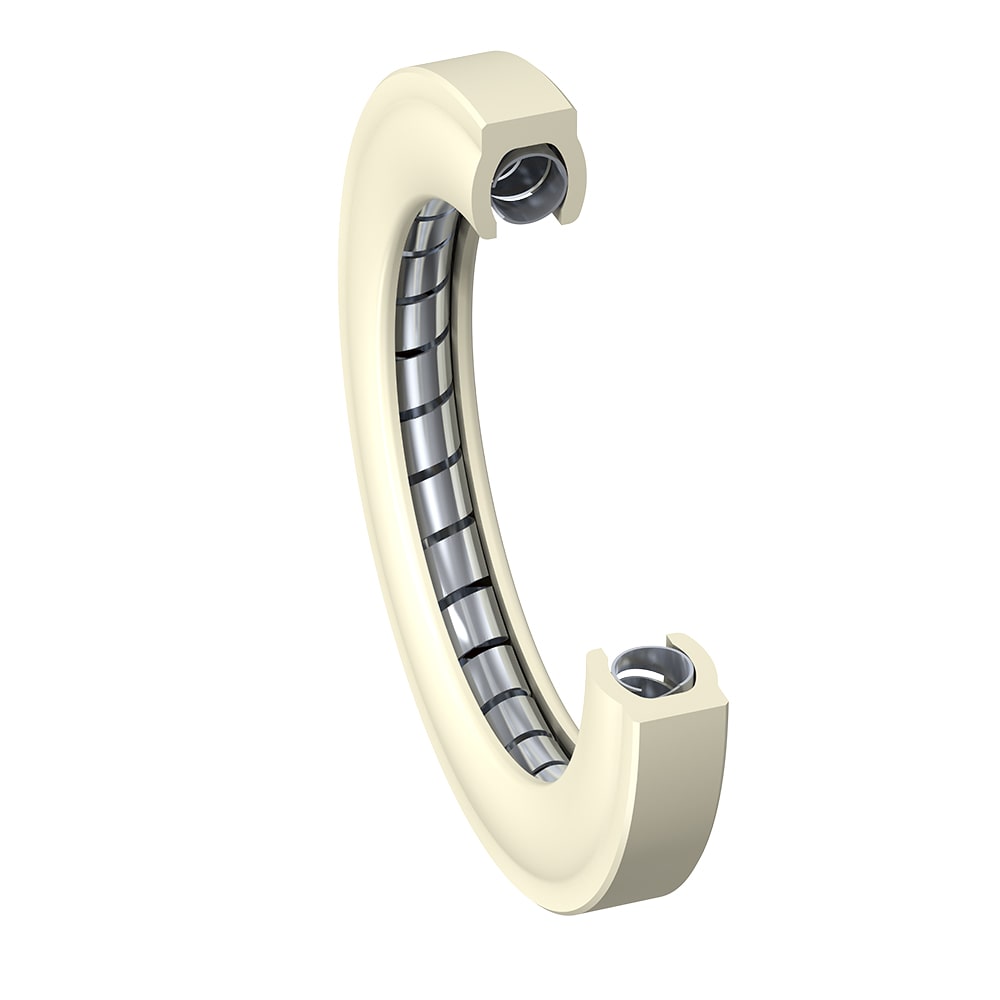

Flange seal. Internal pressure. Static and intermittently dynamic. FlexiSeal. Spring-energized PTFE seal.

Select attributes to refine your product search.

[ { "catentry_id" : "1481369", "partNumber" : "NAI-M001450-01-009-1", "partName" : "NAI-M001450-01-009-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m001450-01-009-1", "Attributes" : { "Outside Diameter (mm)_14.5":"1" , "Inside Diameter (mm)_9.7":"2" , "Groove Width_2.4":"3" , "Minimum Working Temperature (C)_-190":"4" , "Element Height (mm)_1.45":"5" , "Maximum Working Temperature (C)_230":"6" , "Seal Material_Polytetrafluorethylene additives":"7" } , "prodAttributes" : { "Outside Diameter (mm)_22":"1" , "Outside Diameter (mm)_30":"1" , "Outside Diameter (mm)_50":"1" , "Outside Diameter (mm)_25":"1" , "Outside Diameter (mm)_60":"1" , "Outside Diameter (mm)_68":"1" , "Outside Diameter (mm)_115":"1" , "Outside Diameter (mm)_18":"1" , "Outside Diameter (mm)_82":"1" , "Outside Diameter (mm)_59":"1" , "Outside Diameter (mm)_56":"1" , "Outside Diameter (mm)_85":"1" , "Outside Diameter (mm)_19":"1" , "Outside Diameter (mm)_94":"1" , "Outside Diameter (mm)_127":"1" , "Outside Diameter (mm)_177":"1" , "Outside Diameter (mm)_112":"1" , "Outside Diameter (mm)_14.5":"1" , "Outside Diameter (mm)_190.5":"1" , "Outside Diameter (mm)_241":"1" , "Outside Diameter (mm)_97":"1" , "Outside Diameter (mm)_75":"1" , "Outside Diameter (mm)_106":"1" , "Outside Diameter (mm)_114":"1" , "Outside Diameter (mm)_117":"1" , "Outside Diameter (mm)_130":"1" , "Outside Diameter (mm)_134":"1" , "Outside Diameter (mm)_142":"1" , "Outside Diameter (mm)_22.1":"1" , "Outside Diameter (mm)_32.78":"1" , "Outside Diameter (mm)_48.5":"1" , "Outside Diameter (mm)_93.6":"1" , "Outside Diameter (mm)_99.56":"1" , "Outside Diameter (mm)_122":"1" , "Outside Diameter (mm)_171.45":"1" , "Outside Diameter (mm)_184.1":"1" , "Outside Diameter (mm)_184.15":"1" , "Outside Diameter (mm)_385":"1" , "Outside Diameter (mm)_608":"1" , "Outside Diameter (mm)_662":"1" , "Inside Diameter (mm)_579":"2" , "Inside Diameter (mm)_84":"2" , "Inside Diameter (mm)_11.8":"2" , "Inside Diameter (mm)_20.2":"2" , "Inside Diameter (mm)_43.7":"2" , "Inside Diameter (mm)_9.7":"2" , "Inside Diameter (mm)_10.8":"2" , "Inside Diameter (mm)_84.4":"2" , "Inside Diameter (mm)_14.8":"2" , "Inside Diameter (mm)_14.9":"2" , "Inside Diameter (mm)_22.8":"2" , "Inside Diameter (mm)_25.2":"2" , "Inside Diameter (mm)_27.98":"2" , "Inside Diameter (mm)_40.4":"2" , "Inside Diameter (mm)_48.8":"2" , "Inside Diameter (mm)_52.8":"2" , "Inside Diameter (mm)_54.2":"2" , "Inside Diameter (mm)_58.4":"2" , "Inside Diameter (mm)_65.4":"2" , "Inside Diameter (mm)_72.4":"2" , "Inside Diameter (mm)_75.4":"2" , "Inside Diameter (mm)_87.4":"2" , "Inside Diameter (mm)_89.96":"2" , "Inside Diameter (mm)_100.8":"2" , "Inside Diameter (mm)_102.4":"2" , "Inside Diameter (mm)_104.4":"2" , "Inside Diameter (mm)_107.4":"2" , "Inside Diameter (mm)_107.8":"2" , "Inside Diameter (mm)_112.8":"2" , "Inside Diameter (mm)_120.4":"2" , "Inside Diameter (mm)_124.4":"2" , "Inside Diameter (mm)_132.4":"2" , "Inside Diameter (mm)_152.45":"2" , "Inside Diameter (mm)_169.95":"2" , "Inside Diameter (mm)_174.5":"2" , "Inside Diameter (mm)_180.9":"2" , "Inside Diameter (mm)_226.8":"2" , "Inside Diameter (mm)_356":"2" , "Inside Diameter (mm)_633":"2" , "Inside Diameter (mm)_49.4":"2" , "Inside Diameter (mm)_60.8":"2" , "Inside Diameter (mm)_96.4":"2" , "Inside Diameter (mm)_167.4":"2" , "Element Height (mm)_1.45":"3" , "Element Height (mm)_2.3":"3" , "Element Height (mm)_3.1":"3" , "Element Height (mm)_4.65":"3" , "Element Height (mm)_6.1":"3" , "Element Height (mm)_9.5":"3" , "Groove Width_9.5":"4" , "Groove Width_3.6":"4" , "Groove Width_2.4":"4" , "Groove Width_4.8":"4" , "Groove Width_7.1":"4" , "Groove Width_14.5":"4" , "Minimum Working Temperature (C)_-200":"5" , "Minimum Working Temperature (C)_-190":"5" , "Maximum Working Temperature (C)_80":"6" , "Maximum Working Temperature (C)_230":"6" , "Seal Material_Polytetrafluorethylene 10% Ekonol":"7" , "Seal Material_Polytetrafluorethylene 15% glass fiber":"7" , "Seal Material_Polytetrafluorethylene 20% glass fiber":"7" , "Seal Material_Polytetrafluorethylene additives":"7" , "Seal Material_Polytetrafluorethylene modified":"7" , "Seal Material_Polytetrafluorethylene virgin":"7" , "Seal Material_Ultra-high molecular weight polyethylene":"7" } }, { "catentry_id" : "3801249", "partNumber" : "NAI-M001800-02-009-2", "partName" : "NAI-M001800-02-009-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m001800-02-009-2", "Attributes" : { "Seal Material_Polytetrafluorethylene additives":"1" , "Outside Diameter (mm)_18":"2" , "Groove Width_3.6":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_2.3":"5" , "Minimum Working Temperature (C)_-190":"6" , "Inside Diameter (mm)_10.8":"7" } }, { "catentry_id" : "1481370", "partNumber" : "NAI-M001900-02-001-2", "partName" : "NAI-M001900-02-001-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m001900-02-001-2", "Attributes" : { "Outside Diameter (mm)_19":"1" , "Inside Diameter (mm)_11.8":"2" , "Groove Width_3.6":"3" , "Minimum Working Temperature (C)_-190":"4" , "Maximum Working Temperature (C)_230":"5" , "Element Height (mm)_2.3":"6" , "Seal Material_Polytetrafluorethylene virgin":"7" } }, { "catentry_id" : "1481375", "partNumber" : "NAI-M002200-02-020-2", "partName" : "NAI-M002200-02-020-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m002200-02-020-2", "Attributes" : { "Outside Diameter (mm)_22":"1" , "Groove Width_3.6":"2" , "Minimum Working Temperature (C)_-190":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_2.3":"5" , "Seal Material_Polytetrafluorethylene 20% glass fiber":"6" , "Inside Diameter (mm)_14.8":"7" } }, { "catentry_id" : "1481376", "partNumber" : "NAI-M002210-02-005-2", "partName" : "NAI-M002210-02-005-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m002210-02-005-2", "Attributes" : { "Groove Width_3.6":"1" , "Minimum Working Temperature (C)_-190":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_2.3":"4" , "Outside Diameter (mm)_22.1":"5" , "Seal Material_Polytetrafluorethylene 10% Ekonol":"6" , "Inside Diameter (mm)_14.9":"7" } }, { "catentry_id" : "1481377", "partNumber" : "NAI-M002500-01-022-1", "partName" : "NAI-M002500-01-022-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m002500-01-022-1", "Attributes" : { "Outside Diameter (mm)_25":"1" , "Inside Diameter (mm)_20.2":"2" , "Groove Width_2.4":"3" , "Minimum Working Temperature (C)_-190":"4" , "Element Height (mm)_1.45":"5" , "Maximum Working Temperature (C)_230":"6" , "Seal Material_Polytetrafluorethylene 15% glass fiber":"7" } }, { "catentry_id" : "1481381", "partNumber" : "NAI-M003000-01-022-1", "partName" : "NAI-M003000-01-022-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m003000-01-022-1", "Attributes" : { "Outside Diameter (mm)_30":"1" , "Groove Width_2.4":"2" , "Minimum Working Temperature (C)_-190":"3" , "Element Height (mm)_1.45":"4" , "Maximum Working Temperature (C)_230":"5" , "Seal Material_Polytetrafluorethylene 15% glass fiber":"6" , "Inside Diameter (mm)_25.2":"7" } }, { "catentry_id" : "1481382", "partNumber" : "NAI-M003000-02-020-2", "partName" : "NAI-M003000-02-020-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m003000-02-020-2", "Attributes" : { "Outside Diameter (mm)_30":"1" , "Groove Width_3.6":"2" , "Minimum Working Temperature (C)_-190":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_2.3":"5" , "Seal Material_Polytetrafluorethylene 20% glass fiber":"6" , "Inside Diameter (mm)_22.8":"7" } }, { "catentry_id" : "1481392", "partNumber" : "NAI-M003278-01-005-2", "partName" : "NAI-M003278-01-005-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m003278-01-005-2", "Attributes" : { "Groove Width_2.4":"1" , "Minimum Working Temperature (C)_-190":"2" , "Element Height (mm)_1.45":"3" , "Maximum Working Temperature (C)_230":"4" , "Outside Diameter (mm)_32.78":"5" , "Seal Material_Polytetrafluorethylene 10% Ekonol":"6" , "Inside Diameter (mm)_27.98":"7" } }, { "catentry_id" : "1481401", "partNumber" : "NAI-M004850-01-011-1", "partName" : "NAI-M004850-01-011-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m004850-01-011-1", "Attributes" : { "Inside Diameter (mm)_43.7":"1" , "Groove Width_2.4":"2" , "Minimum Working Temperature (C)_-190":"3" , "Element Height (mm)_1.45":"4" , "Maximum Working Temperature (C)_230":"5" , "Seal Material_Polytetrafluorethylene additives":"6" , "Outside Diameter (mm)_48.5":"7" } }, { "catentry_id" : "3801250", "partNumber" : "NAI-M005000-03-009-2", "partName" : "NAI-M005000-03-009-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m005000-03-009-2", "Attributes" : { "Seal Material_Polytetrafluorethylene additives":"1" , "Outside Diameter (mm)_50":"2" , "Groove Width_4.8":"3" , "Element Height (mm)_3.1":"4" , "Maximum Working Temperature (C)_230":"5" , "Minimum Working Temperature (C)_-190":"6" , "Inside Diameter (mm)_49.4":"7" } }, { "catentry_id" : "1481402", "partNumber" : "NAI-M005000-03-022-1", "partName" : "NAI-M005000-03-022-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m005000-03-022-1", "Attributes" : { "Outside Diameter (mm)_50":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_4.8":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_3.1":"5" , "Seal Material_Polytetrafluorethylene 15% glass fiber":"6" , "Inside Diameter (mm)_40.4":"7" } }, { "catentry_id" : "1481406", "partNumber" : "NAI-M005600-02-001-1", "partName" : "NAI-M005600-02-001-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m005600-02-001-1", "Attributes" : { "Outside Diameter (mm)_56":"1" , "Groove Width_3.6":"2" , "Minimum Working Temperature (C)_-190":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_2.3":"5" , "Seal Material_Polytetrafluorethylene virgin":"6" , "Inside Diameter (mm)_48.8":"7" } }, { "catentry_id" : "1481407", "partNumber" : "NAI-M005900-01-005-1", "partName" : "NAI-M005900-01-005-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m005900-01-005-1", "Attributes" : { "Outside Diameter (mm)_59":"1" , "Groove Width_2.4":"2" , "Minimum Working Temperature (C)_-190":"3" , "Element Height (mm)_1.45":"4" , "Maximum Working Temperature (C)_230":"5" , "Seal Material_Polytetrafluorethylene 10% Ekonol":"6" , "Inside Diameter (mm)_54.2":"7" } }, { "catentry_id" : "1481408", "partNumber" : "NAI-M006000-02-009-1", "partName" : "NAI-M006000-02-009-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m006000-02-009-1", "Attributes" : { "Outside Diameter (mm)_60":"1" , "Groove Width_3.6":"2" , "Minimum Working Temperature (C)_-190":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_2.3":"5" , "Seal Material_Polytetrafluorethylene additives":"6" , "Inside Diameter (mm)_52.8":"7" } }, { "catentry_id" : "1481413", "partNumber" : "NAI-M006800-03-022-1", "partName" : "NAI-M006800-03-022-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m006800-03-022-1", "Attributes" : { "Outside Diameter (mm)_68":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_4.8":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_3.1":"5" , "Seal Material_Polytetrafluorethylene 15% glass fiber":"6" , "Inside Diameter (mm)_58.4":"7" } }, { "catentry_id" : "1481417", "partNumber" : "NAI-M007500-03-009-2", "partName" : "NAI-M007500-03-009-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m007500-03-009-2", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_4.8":"2" , "Maximum Working Temperature (C)_230":"3" , "Outside Diameter (mm)_75":"4" , "Element Height (mm)_3.1":"5" , "Seal Material_Polytetrafluorethylene additives":"6" , "Inside Diameter (mm)_65.4":"7" } }, { "catentry_id" : "3801251", "partNumber" : "NAI-M007500-04-002-1", "partName" : "NAI-M007500-04-002-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m007500-04-002-1", "Attributes" : { "Seal Material_Polytetrafluorethylene additives":"1" , "Outside Diameter (mm)_75":"2" , "Groove Width_7.1":"3" , "Element Height (mm)_4.65":"4" , "Maximum Working Temperature (C)_230":"5" , "Minimum Working Temperature (C)_-190":"6" , "Inside Diameter (mm)_60.8":"7" } }, { "catentry_id" : "1481421", "partNumber" : "NAI-M008200-03-022-1", "partName" : "NAI-M008200-03-022-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m008200-03-022-1", "Attributes" : { "Outside Diameter (mm)_82":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_4.8":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_3.1":"5" , "Seal Material_Polytetrafluorethylene 15% glass fiber":"6" , "Inside Diameter (mm)_72.4":"7" } }, { "catentry_id" : "1481423", "partNumber" : "NAI-M008500-03-002-1", "partName" : "NAI-M008500-03-002-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m008500-03-002-1", "Attributes" : { "Outside Diameter (mm)_85":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_4.8":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_3.1":"5" , "Seal Material_Polytetrafluorethylene modified":"6" , "Inside Diameter (mm)_75.4":"7" } }, { "catentry_id" : "1481425", "partNumber" : "NAI-M009360-03-009-2X", "partName" : "NAI-M009360-03-009-2X", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m009360-03-009-2x", "Attributes" : { "Inside Diameter (mm)_84":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_4.8":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_3.1":"5" , "Seal Material_Polytetrafluorethylene additives":"6" , "Outside Diameter (mm)_93.6":"7" } }, { "catentry_id" : "3801252", "partNumber" : "NAI-M009400-03-009-2", "partName" : "NAI-M009400-03-009-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m009400-03-009-2", "Attributes" : { "Seal Material_Polytetrafluorethylene additives":"1" , "Outside Diameter (mm)_94":"2" , "Maximum Working Temperature (C)_230":"3" , "Groove Width_4.8":"4" , "Element Height (mm)_3.1":"5" , "Minimum Working Temperature (C)_-190":"6" , "Inside Diameter (mm)_84.4":"7" } }, { "catentry_id" : "1481428", "partNumber" : "NAI-M009700-03-020-2", "partName" : "NAI-M009700-03-020-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m009700-03-020-2", "Attributes" : { "Outside Diameter (mm)_97":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_4.8":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_3.1":"5" , "Seal Material_Polytetrafluorethylene 20% glass fiber":"6" , "Inside Diameter (mm)_87.4":"7" } }, { "catentry_id" : "1481429", "partNumber" : "NAI-M009956-03-001-2", "partName" : "NAI-M009956-03-001-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m009956-03-001-2", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_4.8":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_3.1":"4" , "Seal Material_Polytetrafluorethylene virgin":"5" , "Outside Diameter (mm)_99.56":"6" , "Inside Diameter (mm)_89.96":"7" } }, { "catentry_id" : "3801253", "partNumber" : "NAI-M010600-03-001-2", "partName" : "NAI-M010600-03-001-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m010600-03-001-2", "Attributes" : { "Seal Material_Polytetrafluorethylene virgin":"1" , "Outside Diameter (mm)_106":"2" , "Element Height (mm)_3.1":"3" , "Groove Width_4.8":"4" , "Maximum Working Temperature (C)_230":"5" , "Minimum Working Temperature (C)_-190":"6" , "Inside Diameter (mm)_96.4":"7" } }, { "catentry_id" : "1481433", "partNumber" : "NAI-M011200-03-001-2", "partName" : "NAI-M011200-03-001-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m011200-03-001-2", "Attributes" : { "Outside Diameter (mm)_112":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_4.8":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_3.1":"5" , "Seal Material_Polytetrafluorethylene virgin":"6" , "Inside Diameter (mm)_102.4":"7" } }, { "catentry_id" : "1481435", "partNumber" : "NAI-M011400-03-009-2X", "partName" : "NAI-M011400-03-009-2X", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m011400-03-009-2x", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_4.8":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_3.1":"4" , "Outside Diameter (mm)_114":"5" , "Seal Material_Polytetrafluorethylene additives":"6" , "Inside Diameter (mm)_104.4":"7" } }, { "catentry_id" : "1481436", "partNumber" : "NAI-M011500-04-009-1", "partName" : "NAI-M011500-04-009-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m011500-04-009-1", "Attributes" : { "Outside Diameter (mm)_115":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_7.1":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_4.65":"5" , "Seal Material_Polytetrafluorethylene additives":"6" , "Inside Diameter (mm)_100.8":"7" } }, { "catentry_id" : "1481437", "partNumber" : "NAI-M011700-03-020-2", "partName" : "NAI-M011700-03-020-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m011700-03-020-2", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_4.8":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_3.1":"4" , "Outside Diameter (mm)_117":"5" , "Seal Material_Polytetrafluorethylene 20% glass fiber":"6" , "Inside Diameter (mm)_107.4":"7" } }, { "catentry_id" : "1481444", "partNumber" : "NAI-M012200-04-006-1", "partName" : "NAI-M012200-04-006-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m012200-04-006-1", "Attributes" : { "Maximum Working Temperature (C)_80":"1" , "Minimum Working Temperature (C)_-200":"2" , "Groove Width_7.1":"3" , "Element Height (mm)_4.65":"4" , "Seal Material_Ultra-high molecular weight polyethylene":"5" , "Outside Diameter (mm)_122":"6" , "Inside Diameter (mm)_107.8":"7" } }, { "catentry_id" : "1481445", "partNumber" : "NAI-M012700-04-001-2", "partName" : "NAI-M012700-04-001-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m012700-04-001-2", "Attributes" : { "Outside Diameter (mm)_127":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_7.1":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_4.65":"5" , "Seal Material_Polytetrafluorethylene virgin":"6" , "Inside Diameter (mm)_112.8":"7" } }, { "catentry_id" : "3801254", "partNumber" : "NAI-M013000-03-009-2", "partName" : "NAI-M013000-03-009-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m013000-03-009-2", "Attributes" : { "Seal Material_Polytetrafluorethylene additives":"1" , "Outside Diameter (mm)_130":"2" , "Groove Width_4.8":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_3.1":"5" , "Minimum Working Temperature (C)_-190":"6" , "Inside Diameter (mm)_120.4":"7" } }, { "catentry_id" : "1481451", "partNumber" : "NAI-M013400-03-005-2", "partName" : "NAI-M013400-03-005-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m013400-03-005-2", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_4.8":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_3.1":"4" , "Outside Diameter (mm)_134":"5" , "Seal Material_Polytetrafluorethylene 10% Ekonol":"6" , "Inside Diameter (mm)_124.4":"7" } }, { "catentry_id" : "1481453", "partNumber" : "NAI-M014200-03-001-2", "partName" : "NAI-M014200-03-001-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m014200-03-001-2", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_4.8":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_3.1":"4" , "Outside Diameter (mm)_142":"5" , "Seal Material_Polytetrafluorethylene virgin":"6" , "Inside Diameter (mm)_132.4":"7" } }, { "catentry_id" : "1481460", "partNumber" : "NAI-M017145-05-005-1", "partName" : "NAI-M017145-05-005-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m017145-05-005-1", "Attributes" : { "Groove Width_9.5":"1" , "Minimum Working Temperature (C)_-190":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_6.1":"4" , "Seal Material_Polytetrafluorethylene 10% Ekonol":"5" , "Outside Diameter (mm)_171.45":"6" , "Inside Diameter (mm)_152.45":"7" } }, { "catentry_id" : "3883234", "partNumber" : "NAI-M017700-03-001-2", "partName" : "NAI-M017700-03-001-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m017700-03-001-2", "Attributes" : { "Seal Material_Polytetrafluorethylene virgin":"1" , "Outside Diameter (mm)_177":"2" , "Groove Width_4.8":"3" , "Element Height (mm)_3.1":"4" , "Maximum Working Temperature (C)_230":"5" , "Minimum Working Temperature (C)_-190":"6" , "Inside Diameter (mm)_167.4":"7" } }, { "catentry_id" : "1481462", "partNumber" : "NAI-M018410-03-001-2", "partName" : "NAI-M018410-03-001-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m018410-03-001-2", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_4.8":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_3.1":"4" , "Seal Material_Polytetrafluorethylene virgin":"5" , "Outside Diameter (mm)_184.1":"6" , "Inside Diameter (mm)_174.5":"7" } }, { "catentry_id" : "1481463", "partNumber" : "NAI-M018415-04-001-2", "partName" : "NAI-M018415-04-001-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m018415-04-001-2", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_7.1":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_4.65":"4" , "Seal Material_Polytetrafluorethylene virgin":"5" , "Outside Diameter (mm)_184.15":"6" , "Inside Diameter (mm)_169.95":"7" } }, { "catentry_id" : "1481466", "partNumber" : "NAI-M019050-03-002-2", "partName" : "NAI-M019050-03-002-2", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m019050-03-002-2", "Attributes" : { "Outside Diameter (mm)_190.5":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_4.8":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_3.1":"5" , "Seal Material_Polytetrafluorethylene modified":"6" , "Inside Diameter (mm)_180.9":"7" } }, { "catentry_id" : "1481470", "partNumber" : "NAI-M024100-04-001-1", "partName" : "NAI-M024100-04-001-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m024100-04-001-1", "Attributes" : { "Outside Diameter (mm)_241":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_7.1":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_4.65":"5" , "Seal Material_Polytetrafluorethylene virgin":"6" , "Inside Diameter (mm)_226.8":"7" } }, { "catentry_id" : "1481479", "partNumber" : "NAI-M038500-06-009-2X", "partName" : "NAI-M038500-06-009-2X", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m038500-06-009-2x", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_14.5":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_9.5":"4" , "Seal Material_Polytetrafluorethylene additives":"5" , "Outside Diameter (mm)_385":"6" , "Inside Diameter (mm)_356":"7" } }, { "catentry_id" : "1481482", "partNumber" : "NAI-M060800-06-005-1", "partName" : "NAI-M060800-06-005-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m060800-06-005-1", "Attributes" : { "Inside Diameter (mm)_579":"1" , "Minimum Working Temperature (C)_-190":"2" , "Groove Width_14.5":"3" , "Maximum Working Temperature (C)_230":"4" , "Element Height (mm)_9.5":"5" , "Seal Material_Polytetrafluorethylene 10% Ekonol":"6" , "Outside Diameter (mm)_608":"7" } }, { "catentry_id" : "1481484", "partNumber" : "NAI-M066200-06-005-1", "partName" : "NAI-M066200-06-005-1", "inventory" : "0.0", "offerPrice" : "", "buyable" : "0", "productBuyable" : "0", "partDetailDisplayUrl" : "https://ph.parker.com/us/17061/en/flange-seal-praedifa-series-nai-flexiseal/nai-m066200-06-005-1", "Attributes" : { "Minimum Working Temperature (C)_-190":"1" , "Groove Width_14.5":"2" , "Maximum Working Temperature (C)_230":"3" , "Element Height (mm)_9.5":"4" , "Seal Material_Polytetrafluorethylene 10% Ekonol":"5" , "Outside Diameter (mm)_662":"6" , "Inside Diameter (mm)_633":"7" } } ]

Outside Diameter (mm):

Inside Diameter (mm):

Element Height (mm):

Groove Width:

Minimum Working Temperature (C):

Maximum Working Temperature (C):

Seal Material:

SKU:

Reset Attributes

Print Product Overview

Description

Print Product Overview

Print Tech Specifications

Description

Performance Characteristics

Thermal Application Type

Low Temperature (< -35°C)
Expanded Low and High Temperature (< -35 to 140°C)

Media

Hydraulic

Polymer Material Options

Polytetrafluoroethylene (PTFE, mPTFE, TFM, Polon®)
Ultra-High Molecular Weight Polyethylene (UHMW-PE)

Maximum Operating Pressure

550 bar

Minimum Operating Temperature

-200 to -190 °C

Maximum Operating Temperature

80 to 230 °C

Maximum Surface Speed

0.005 m/sec

Unit of Measure

Length: mm

Cushioning Mechanism

Pressure Rating

Extremely High Pressure (> 500 bar)

Operating Pressure

Internal Pressure

Outside Diameter

8 to 691 mm

Inside Diameter

3.2 to 662 mm

Print Tech Specifications
