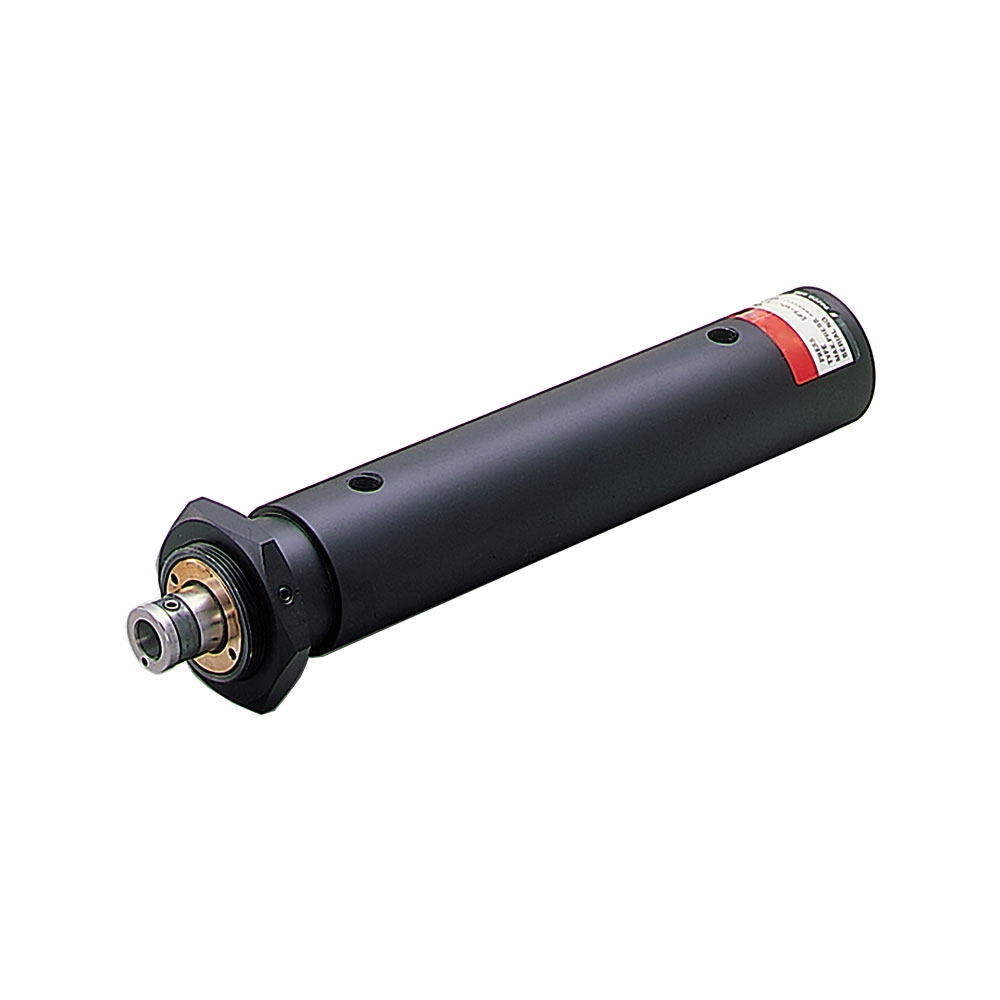

Direct Press Cylinder Model:DP

Direct Press Cylinder Model:DP

Cylinder for hole-punching

Technical Specifications

  • Product Type: Standard Type, Non-rotating Type
  • Direction of Rotation: Standard Type: Round Hole, Non-rotating Type: Square Hole, Different Diameter Hole
  • Bore Diameter: 26 to 50 mm (Standard Type), 40 to 50 mm (Non-rotating Type)
  • Maximum Operating Pressure: 14 MPa
  • Minimum Operating Pressure: 0.6 MPa
  • Operating Temperature: -10 to 80 °C (No freezing)
  • For Fluid Type: Petroleum-based Fluid
  • Rod End Deflection: Standard type:0.05mm or less Non-rotating type:0.03mm or less(One-side run-out of 1kgf horizontal load on the rod end.)
Safety Warning

Full Product Description

・Direct press cylinder from bores of 26 and 40 and 50mm.
・Designed for punching either round or sguare holes without the guides.
