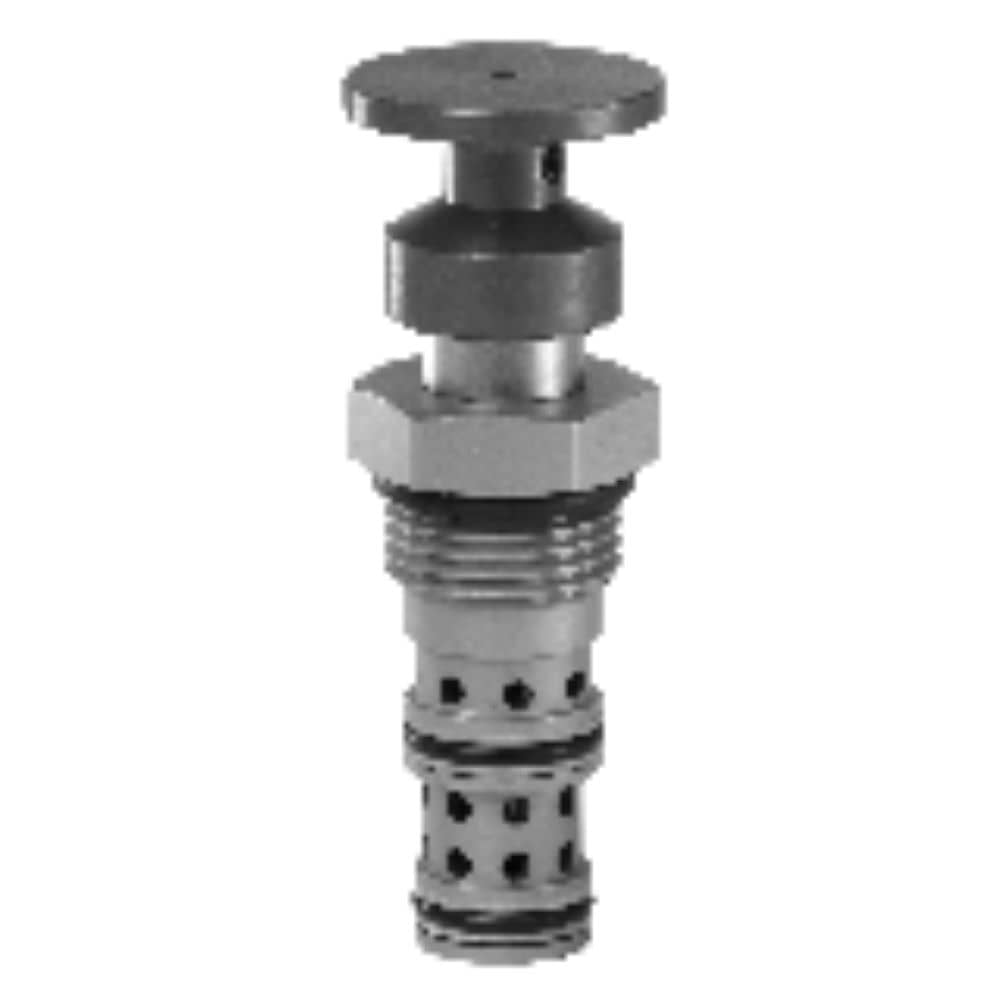

2 Position, 3 Way Pull to Shift Spool Type Manual Valve | #GM0233V


LOADING IMAGES
GM0233V

2 Position, 3 Way Pull to Shift Spool Type Manual Valve | #GM0233V OBSOLETE

Note: This product is no longer available - please contact us for further assistance.


Technical Specifications

  • Flow Rate: 5 GAL/MIN, 19 L/MIN
  • Configuration: 2 position, 3 way selector
  • Actuation Type: Knob
  • Seal Material: Fluorocarbon
  • Division: Hydraulic Valve Systems Division
  • Flow Rate: 5 gal/min, 19 L/min
  • Configuration: 2 position, 3 way selector
  • Actuation Type: Knob
  • Seal Material: Fluorocarbon
  • Maximum Flow Rate: 5 gal/min, 19 L/min
  • Maximum Operating Pressure: 5000 psi, 350 bar
  • Maximum Inlet Pressure Rating: 5000 psi, 350 bar
  • Maximum Tank Pressure: 500 psi, 35 bar
  • Force: 11 lbf, 5 kgf
  • Leak Rate: 160 @ 5000 PSI (350 BAR) cm3/min
  • Cavity Size: C08-3
  • Function: Spool Type
  • Operation Type: Manual
  • Detents: No
  • For Fluid Type: Mineral-based or synthetic hydraulic fluids
  • Maximum Kinematic Viscosity: 45-2000 SSU (6 to 420 cSt)
  • Filter Efficiency Rating: ISO 4406 18/16/13, SAE Class 4
  • Valve Material: All parts steel. All operating parts hardened steel
  • Installation Torque: 22 lb-ft, 30 Nm
  • Operating Temperature: -15 to +400 °F, -26 to +204 °C
  • Maximum Operating Temperature: +400 °F, +204 °C
  • Minimum Operating Temperature: -15 °F, -26 °C
  • Weight: 0.2 lb, 0.1 kg
  • Body Material: N/A
Safety Warning

Item Information

Parker’s 2-position, 3-way manual spool valves provide precise operator control for diverter type applications with a simple pull style knob actuator. These valves are capable of flows up to 19 lpm (5 gpm) and pressures as high as 350 bar (5000 psi). Parker’s 2-position, 3-way manual spool valves return to their normal or original position when the knob is released and allow flows for normally-open, normally-closed, and selector style circuits. These valves are ideal for single direction applications, such as uni-directional motors, single acting circuits, and pilot circuits on a variety of machinery within the construction, material handling, or industrial markets.

Markets:
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Mobile

Features/Benefits:
• High flow capacity
• Low mechanical operating force
• Detent optional
• External parts zinc plated

Applications:
• Single acting circuits
• Pilot circuits
• Uni-directional motors
