Linear Positioners

Linear Positioners

Parker manufacture high-performance, high-quality and high-strength precision linear positioners. Our positioners are available in both standard and bespoke configurations with a range of different drive technologies available. We offer linear positioners ideal for high speeds and high accelerations. But also linear actuators suitable for high precision and smooth motion applications. This range serves a wide variety of applications that are trusted across many of today's major industrial markets.

The MX80L is a high-precision miniature linear stage comprising an ironcore linear motor, integrated high resolution feedback and cross-roller guidance. Measuring just 80mm wide by 25mm tall, it offers strokes of up to 200mm and a load capacity of 78N

Where to Buy
Viewing 10 of
Show More

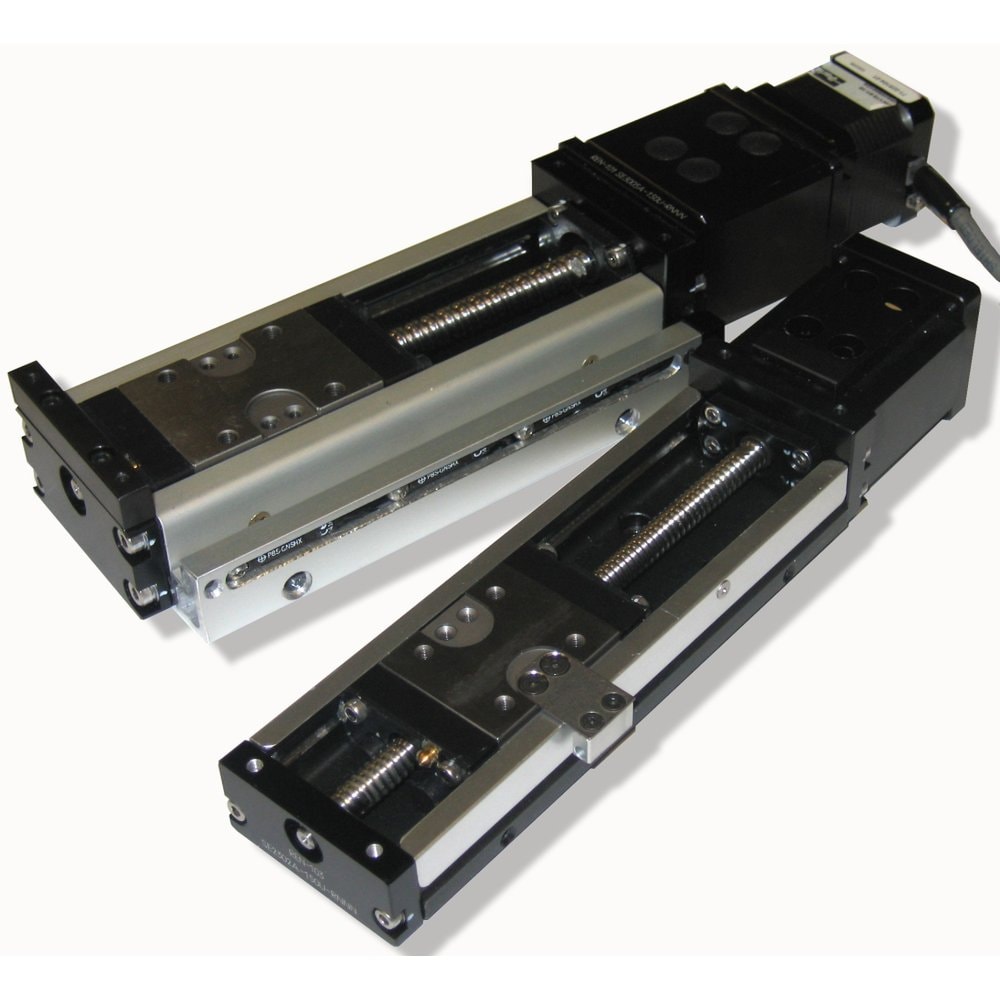

The 401XE tables use a highly integrated monocarrier as its drive train and guidance. Just 30mm wide, with strokes to 160mm and loads to 157N, its size and performance make it ideal for applications ranging from life science to electronic manufacturing

Where to Buy
Viewing 10 of
Show More

The 402XE tables use a highly integrated monocarrier as its drive train and guidance. Just 50mm wide, with strokes to 220mm and loads to 883N, its size and performance make it ideal for applications ranging from life science to electronic manufacturing

Where to Buy
Viewing 10 of
Show More

The 403XE tables use a highly integrated monocarrier as its drive train and guidance. Just 60mm wide, with strokes to 655mm and loads to 1569N, its size and performance make it ideal for applications ranging from life science to electronic manufacturing

Where to Buy
Viewing 10 of
Show More

The 404XE is an economic alternative to the 404XR for applications requiring medium precision/protection. Offering strokes to 700mm and a load capacity of 1201N, the 95mm wide 404XE has a precision ballscrew drive train and dual square rails for guidance

Where to Buy
Viewing 10 of
Show More

The 404XR high precision ballscrew driven positioning tables are 95mm wide and offer stroke lengths to 600mm, a load capacity of 1667N and a dual square rail guide system. Suitable for a variety of applications from life sciences to typical industrial

Where to Buy
Viewing 10 of
Show More

The 406XR high precision ballscrew driven positioning tables are 150mm wide and offer stroke lengths to 2000mm, a load capacity of 6178N and a dual square rail guide system. Suitable for a variety of applications from life sciences to general industrial

Where to Buy
Viewing 10 of
Show More

The MX80S ballscrew driven miniature cross roller linear stage is just 80mm wide. Offering high precision, stroke lengths of up to 150mm and a payload capacity of 80N, it is ideal for use in life science or optical adjustment applications

Where to Buy
Viewing 10 of
Show More

The MX80S leadscrew driven miniature cross roller linear stage is just 80mm wide. Offering smooth motion, stroke lengths of up to 150mm and a payload capacity of 80N, it is ideal for use in life science or optical adjustment applications

Where to Buy
Viewing 10 of
Show More

The mSR 80 is a high precision, miniature linear stage comprised of an ironcore linear motor, integrated high resolution feedback and precision square rail guidance. The mSR 80 measures just 80 mm wide by 25 mm tall.
Viewing 10 of 1
Show More

The mSR 100 is a high precision, miniature linear stage comprised of an ironless linear motor, integrated high resolution feedback and precision square rail guidance. The mSR 100 measures just 100 mm wide by 35 mm tall.
Viewing 10 of 1
Show More

The 404XR leadscrew driven positioning tables are 95mm wide and offer stroke lengths to 600mm, a load capacity of 1667N and a dual square rail guide system. Suitable for a wide variety of industrial and scientific applications with a duty cycle up to 70%

Where to Buy
Viewing 10 of
Show More

The 406XR high precision ballscrew driven positioning tables are 150mm wide and offer stroke lengths to 2000mm, a load capacity of 6178N and a dual square rail guide system. Suitable for a variety of applications from life sciences to general industrial
Viewing 10 of 1
Show More

The 412XR high precision ballscrew driven positioning tables are 285mm wide and offer stroke lengths to 2000mm, a load capacity of 14415N and a dual square rail guide system. Suitable for a variety of applications from life sciences to general industrial

Where to Buy
Viewing 10 of
Show More

The 404XE is an economic alternative to the 404XR for applications requiring medium precision/protection. Offering strokes to 700mm and a load capacity of 1201N, the 95mm wide 404XE has a precision ballscrew drive train and dual square rails for guidance

Where to Buy
Viewing 10 of
Show More

The 404XR high precision ballscrew driven positioning tables are 95mm wide and offer stroke lengths to 600mm, a load capacity of 1667N and a dual square rail guide system. Suitable for a variety of applications from life sciences to typical industrial
Viewing 10 of 1
Show More

The 404LXR high precision linear motor positioner has 2 square rails for guidance and a high resolution linear encoder. With strokes to 1.0m and a load capacity of 441N it is ideal for high speeds/accelerations and applications requiring smooth motion

Where to Buy
Viewing 10 of
Show More

The 406LXR high precision linear motor positioner has 2 square rails for guidance and a high resolution linear encoder. With strokes to 1.9m and a load capacity of 1766N it is ideal for high speeds/accelerations and applications requiring smooth motion

Where to Buy
Viewing 10 of
Show More

The 401XE tables use a highly integrated monocarrier as its drive train and guidance. Just 30mm wide, with strokes to 160mm and loads to 157N, its size and performance make it ideal for applications ranging from life science to electronic manufacturing
Viewing 10 of 1
Show More

The 402XE tables use a highly integrated monocarrier as its drive train and guidance. Just 50mm wide, with strokes to 220mm and loads to 883N, its size and performance make it ideal for applications ranging from life science to electronic manufacturing
Viewing 10 of 1
Show More

The MX80L is a high-precision miniature linear stage comprising an ironcore linear motor, integrated high resolution feedback and cross-roller guidance. Measuring just 80mm wide by 25mm tall, it offers strokes of up to 200mm and a load capacity of 78N
Viewing 10 of 1
Show More

The 403XE tables use a highly integrated monocarrier as its drive train and guidance. Just 60mm wide, with strokes to 655mm and loads to 1569N, its size and performance make it ideal for applications ranging from life science to electronic manufacturing
Viewing 10 of 1
Show More

The XLM series is a precision machined, profiled guide linear positioner driven with linear servo motor technology. Its modular design allows multi-axis systems to easily be assembled.
Viewing 10 of 1
Show More

The Parker ZFA Series Optomechanical Focusing Nano Positioner offers nanometer-level stability, rapid settling times, and high precision in a compact form, ideal for life sciences, semiconductor, and metrology applications.

Where to Buy
Viewing 10 of
Show More

The GDL series are lightweight, aluminum roller guides that provide smooth operation and high load carrying capacity for industrial automation. They are designed for high speeds making them ideal for many applications.
Viewing 10 of 1
Show More
