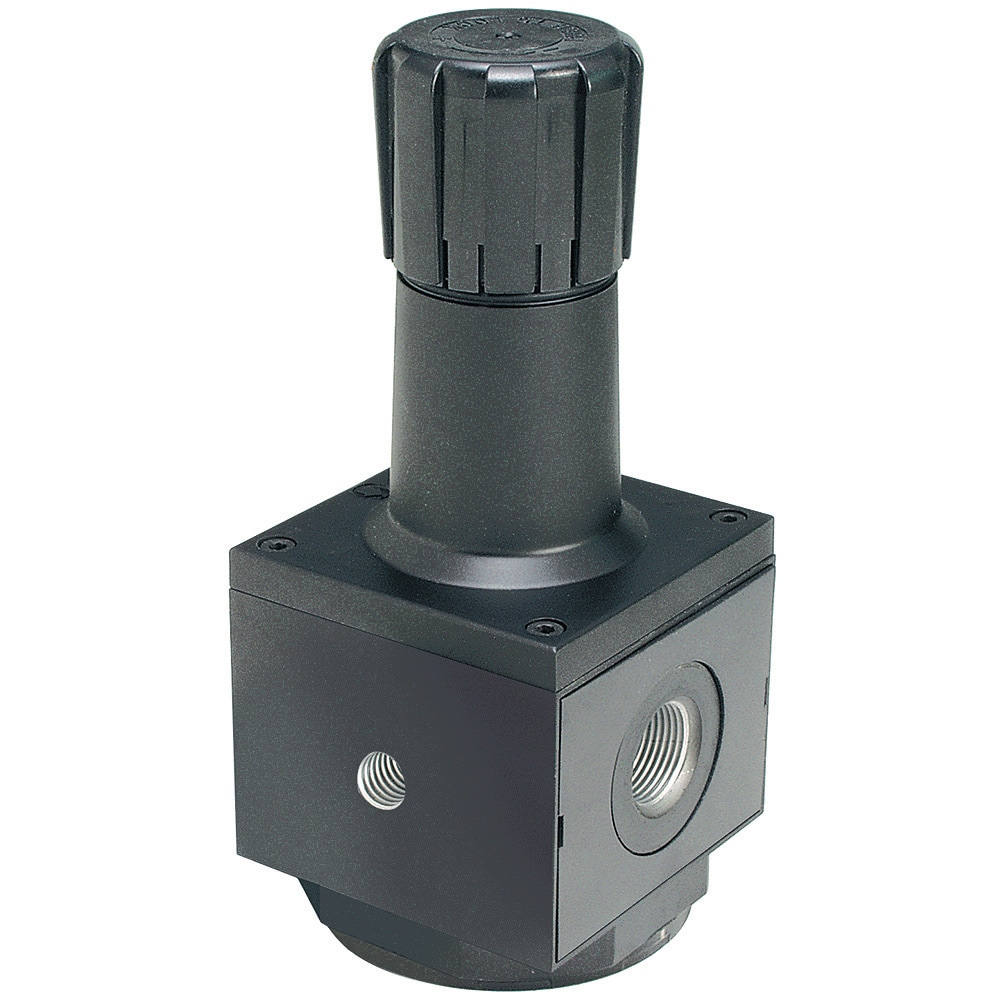

P3NR Pilot Controlled and High-Flow Regulators provide accurate pressure regulation and quick response times for many industrial applications.
P3NR Pilot Controlled and High-Flow Regulators provide accurate pressure regulation and quick response times. P3NR regulators are generally used in a wide variety of applications where reduced pressure is highly desirable for energy conservation, safety requirements, air circuit control and air instrumentation.
Â
The P3NR offers port blocks which provide 1-1/2" port extension to 1" ported bodies and a solid control piston for extended life. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. With various options available, P3NR can be easily configured for your application. The P3NR can be mounted using a semi-modular bolt connection to other P3N global air preparation products.| Literature and Reference Materials |
|---|
| 0700P Catalog_P3N FRL Products |
| 0700P Catalog_Regulator Products |
| Regulators, Installation and Service Manuals |
| Selector Guides |
|---|
| Pneumatic Calculator |
| Products | Port Size | Outlet Pressure Rating | Pressure Gauge Type | Pressure Regulator Type | Operation Type | Product Type | Gauge Port Size |
|---|---|---|---|---|---|---|---|
| P3NRA16BNG | 3/4" | 125 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA16BNH | 3/4" | 250 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA16BNJ | 3/4" | 250 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA16BNN | 3/4" | 125 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA16BPP | 3/4" | 250 PSI | None | Relieving | Pilot | Standard | 1/4" |
| P3NRA18BNG | 1" | 125 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA18BNH | 1" | 250 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA18BNJ | 1" | 250 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA18BNN | 1" | 125 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA18BPP | 1" | 250 PSI | None | Relieving | Pilot | Standard | 1/4" |
| P3NRA1PBNG | 1-1/2" | 125 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA1PBNN | 1-1/2" | 125 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA1PBPP | 1-1/2" | 250 PSI | None | Relieving | Pilot | Standard | 1/4" |
| P3NRA96BNG | 3/4" | 125 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA96BNH | 3/4" | 250 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA96BNJ | 3/4" | 250 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA96BPP | 3/4" | 250 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA98BNG | 1" | 125 PSI | None | Relieving | Pilot | Standard | 1/4" |
| P3NRA98BNH | 1" | 250 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA98BNJ | 1" | 250 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA98BPP | 1" | 250 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA9PBNG | 1-1/2" | 125 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA9PBNH | 1-1/2" | 250 PSI | None | Relieving | Pilot | Standard | 1/4" |
| P3NRA9PBNJ | 1-1/2" | 250 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA9PBPP | 1-1/2" | 250 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA96BNN | 3/4" | 125 PSI | Gauge | Relieving | Standard | Standard | 1/4" |
| P3NRA98BNN | 1" | 125 PSI | None | Relieving | Standard | Standard | 1/4" |
| P3NRA9PBNN | 1-1/2" | 125 PSI | None | Relieving | Pilot | Standard | 1/4" |
