100R7 Hydraulic Hose - 510D

100R7 Hydraulic Hose - 510D

Where to Buy

Parker's 510D hydraulic hose reduces noise in hydraulic systems. Quick connect fittings to speed up installation and it has a low for to flex for tighter routing.

Technical Specifications

  • Minimum Operating Temperature: -40 °F, -40 °C
  • Design Factor: 4
  • Media: Petroleum Hydraulic Fluids
  • Specifications Met: DNV GL, ISO 3949, Type R7-1, MSHA, SAE 100R7

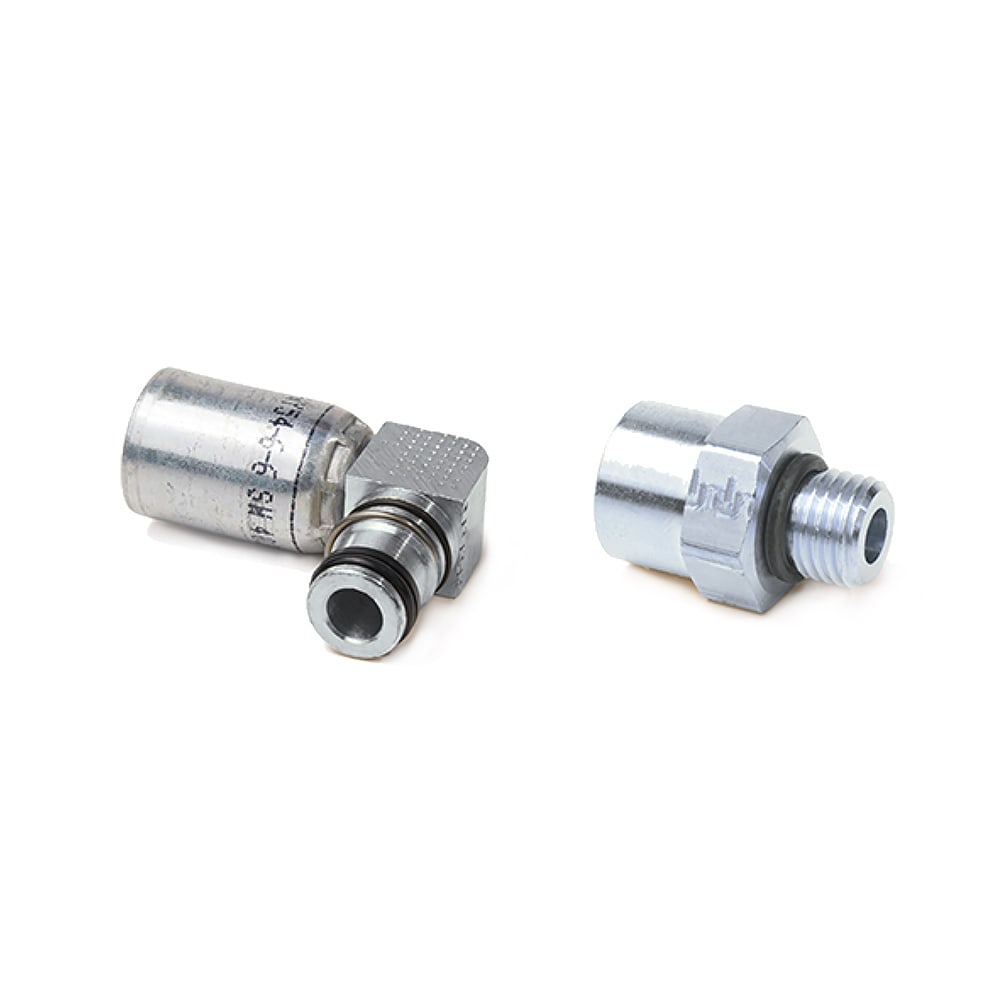

  • Compatible Fitting: 56 Series, 51R Series
  • Inside Diameter: 3/16 to 1 inch, 5 to 25 mm
  • Maximum Operating Pressure: 70 to 224 bar, 7.0 to 22.4 MPa, 1000 to 3250 psi
  • Maximum Operating Temperature: 212 °F, 100 °C
  • Application: Agriculture Equipment, Construction Equipment, Forestry, Hydraulics, Industrial, Manufacturing
  • Weight: 0.05 to 0.27 lb/ft, 0.07 to 0.40 kg/m
  • Minimum Bend Radius: 3/4 to 8 inch, 19 to 203 mm
  • Outside Diameter: 0.470 inch, 0.570 inch, 0.640 inch, 0.810 inch, 0.980 inch, 1.050 inch, 1.320 inch, 11.9 to 33.5 mm
  • Size: -2 to -16
  • Hose Inner Tube Material: Polyamide (PA), Copolyester
  • Cover Material: Polyurethane
  • Hose Reinforcement Material: Fiber
Safety Warning

Full Product Description

Parker’s 510D thermoplastic 100R7 hose stands apart from most of our other SAE 100R7 hydraulic hoses because some sizes use field attachable fittings, in addition to crimp fittings. This improved design allows for quicker installations and maintenance change outs. The 510D hoses features an improved force to flex and a matte cover for low coefficient of friction

Features/Benefits:
• Features low force to flex in sizes -3 through -8•Reduces noise in hydraulic systems
• Twin-line or multi-line bonded hose constructions available
•Formed hose assemblies available
• High density braid for maximum impulse life without loss of flexibility
• Designed to use with quick-connect field attachable fittings or crimp fittings in sizes -3, -4, -6 or -8
• Nylon core material allows for greater chemical compatibility

Applications:
• Medium pressure hydraulic service
• Turf equipment and grounds maintenance
• Utility trucks
• Aerial Lift


Technical Specifications:
• +/- 2% Change in length at maximum working pressure
• Hose I.D. is nominal
• Hose O.D. is maximum

Related Documents

Training
VIDEO: Parflex - Bridging the Gap
Compliance, Certifications & Safety
Parflex Division DNV - 510D 518D Certification
Parflex Division EPA 6h Regulation
Parflex Division Manufacturers Directive
Parflex Division REACH Compliance
Parflex Division RoHS Certificate / WEEE Certificate Directive
Parflex Division SDS
Parflex Ravenna ISO 9001:2015 Certificate
Parker Division Proposition 65 Warning Language--Required_Prop_65_Warning
Parker Safety Guide for Selecting Hose, Tubing, Fittings and Accessories - Parflex
Selector Guides
Crimpsource Online
Product Demos & Tutorials
VIDEO: Parflex Rapid Assembly Fittings Video--Rapid Assembly
VIDEO: Parker 51R Assembly – How To Video--51R Assembly
Video: MiniKrimp Instructional Video
Literature and Reference Materials
Catalog 4660 Parflex Thermoplastic & Fluoropolymer Hose and Tubing--CAT-4660
BUL_4460_510D_518D-UK
Parflex Bonded Hose Assemblies--4660-thermoplastic-bonded
Parflex Hose Pressure Quick Reference Guide--4660-Parflex_Hose_Pressure
Parker Offer of Sale
Rapid Assembly Fittings for 100R7 Hose - 4660 Rapid Assembly System
Spray Foam Market Brochure
×
View Catalog
Share / Email
Print
Products Hose I.D. (inch)
510D-3 3/16
510D-4 1/4
510D-5 5/16
510D-6 3/8
510D-8 1/2
510D-10 5/8
510D-12 3/4
510D-16 1
