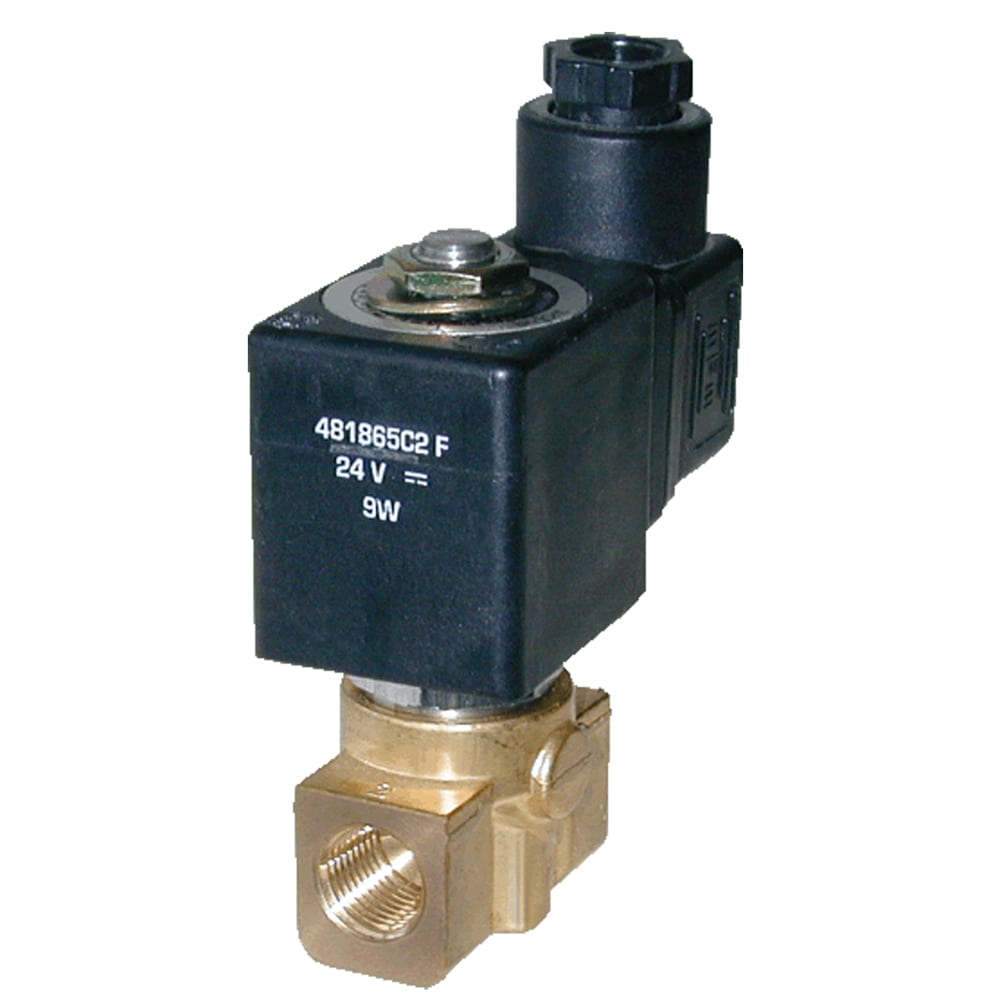

Parker 2-Way Normally Closed, 1/8" General Purpose Solenoid Valves

Where to Buy

Parkers' 2-Way Normally Closed G 1/8" Solenoid Valves provide operating pressures up to 70 bar and flow factors up to 0.318 m3/h. They offer multiple body and sealing materials for all general purpose fluid control applications.

Technical Specifications

  • Product Series: General Purpose Solenoid Valves
  • Valve Type: 2-Way
  • Function: Normally Closed
  • Port Size: 1/8 inch
  • Input Voltage: 115VAC/50-60Hz or 24VDC
  • Body Material: Brass and 316 Stainless St.
  • Seal Material: FKM, NBR, PCTFE or RUBY
  • Orifice 1 Size: 1.2 to 4 mm
  • Flow Coefficient 1: 0.04 to 0.318 m3/hour, 0.7 to 5.3 L/min
  • Power Consumption: 2 to 19 W
  • Coil Type: Coil for DIN and with Screw terminal, from 22 to 40mm
  • Maximum Pressure Differential: 2 to 70 bar
  • Minimum Pressure Differential: 0 bar
  • Number of Ports: 2
  • Actuation Type: Direct Operated
  • Media: General Purpose for Air, Liquids, Gases and Oil
  • Port Type: BSP
  • Orifice 2 Size: n/a
  • Flow Coefficient 2: n/a
  • Minimum Fluid Temperature: -30 °C
  • Maximum Fluid Temperature: 140 °C
  • Coil Specifications Met: IP44, IP65 or IP67
Safety Warning

Full Product Description

Parkers' 2-Way  Normally Closed G 1/8" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities





Markets:

• Beverage

• Life Science

• Industrial Equipment





Features/Benefits:

• Best performances for minimum and maximum operating pressure diff erential

• One of the Fastest in electrical and hydraulic opening response time

• Modular concept: a wide range of electrical parts increases the versatility of this product

• Robust design: areas under mechanical stress have been studied and oversized

• Manual override control option: valve can be easily activated also when there’s no energy supply

• Easy access to internal parts, to permit easy and quick maintenance

• Media: Air, gases, water and light oil





Applications:

• Compressors

• Water dispensing & purification

• Cooling systems

• Sterilizers

• Analyzers and diagnostic equipment

• Medical and dental devices

• Welding equipment

• Lubrication equipment

• Beverage dispensing & vending machines

• Oil burners

• Humidification and misting equipment

• Mobile equipment

• Textile and dry cleaning machines

• Irrigation

View Catalog
Share / Email
Print
Products Voltage (V) Body Material Seal Material Orifice 1 Size (mm) Flow Factor 1 (l/min) Power (Watts) Coil Type
121K1302-2995-4818653D 220-230VAC/50Hz Brass FKM 3 4.5 8 Coil for DIN plug connection, 32 mm
121K1302-2995-481865C2 24VDC Brass FKM 3 4.5 9 Coil for DIN plug connection, 32 mm
390120 24VDC Brass NBR 1.7 1.4 10 Coil for DIN plug connection
390215 24VDC Brass NBR 2.2 2 10 Coil for DIN plug connection
390505 24VDC Brass FKM 2.8 2.9 10 Coil for DIN plug connection
390802 24VDC Brass NBR 4 5.3 10 Coil for DIN plug connection
392370 24VDC Brass FKM 2.2 2 10 Coil for DIN plug connection
398014 230VAC/50-60Hz Brass FKM 1.5 1 4.5 Coil for DIN plug connection, 22 mm
398016 24VDC Brass FKM 1.5 1 5 Coil for DIN plug connection, 22 mm
398018 115VAC/50-60Hz Brass FKM 1.2 0.7 4.5 Coil for DIN plug connection, 22 mm
550000DIS 24VDC 316L Stainless St. FKM 1.5 1 5 -
550001DIS 220-230VAC/50Hz 316L Stainless St. FKM 1.5 1 4 -
550058DIS 24VDC Brass FKM 2 1.5 5 Coil for DIN plug connection, 22 mm
550059DIS 230VAC/50-60Hz Brass FKM 2.5 2.2 4.5 Coil for DIN plug connection, 22 mm
550088DIS 24VDC Brass Ruby 2.5 3.2 12 Coil for DIN plug connection
550089DIS 230VAC/50-60Hz Brass Ruby 2.5 3.2 9 Coil for DIN plug connection, UL for AC
550093DIS 24VDC Brass FKM 2.5 3.3 12 Coil for DIN plug connection
550094DIS 230VAC/50-60Hz Brass FKM 2.5 3.3 9 Coil for DIN plug connection, UL for AC
550095DIS 24VDC Brass FKM 3 4.5 12 Coil for DIN plug connection
550096DIS 230VAC/50-60Hz Brass FKM 3 4.5 9 Coil for DIN plug connection, UL for AC
550193DIS 230VAC/50-60Hz Brass FKM 2 1.5 4.5 Coil for DIN plug connection, 22 mm
550194DIS 24VDC Brass FKM 2.5 2.2 5 Coil for DIN plug connection, 22 mm
E121K14-2995-4818653D 220-230VAC/50Hz Brass PCTFE 1.5 1.5 8 Coil for DIN plug connection, 32 mm
E121K14-2995-481865C2 24VDC Brass PCTFE 1.5 1.5 9 Coil for DIN plug connection, 32 mm
E121K14-4270-481000C2 24VDC Brass PCTFE 1.5 1.5 8 Coil with screw terminal, 40 mm
E121K14-4270-486265C2 24VDC Brass PCTFE 1.5 1.5 14 Coil with screw terminal,high temperature-high power, 40 mm
E121K23-2995-481865C2 24VDC Brass Ruby 2.5 3.5 9 Coil for DIN plug connection, 32 mm
E121K23-4270-481000C2 24VDC Brass Ruby 2.5 3.5 8 Coil with screw terminal, 40 mm
E121K23-4270-486265F4 230VAC/50Hz Brass Ruby 2.5 3.5 14 Coil with screw terminal,high temperature-high power, 40 mm
