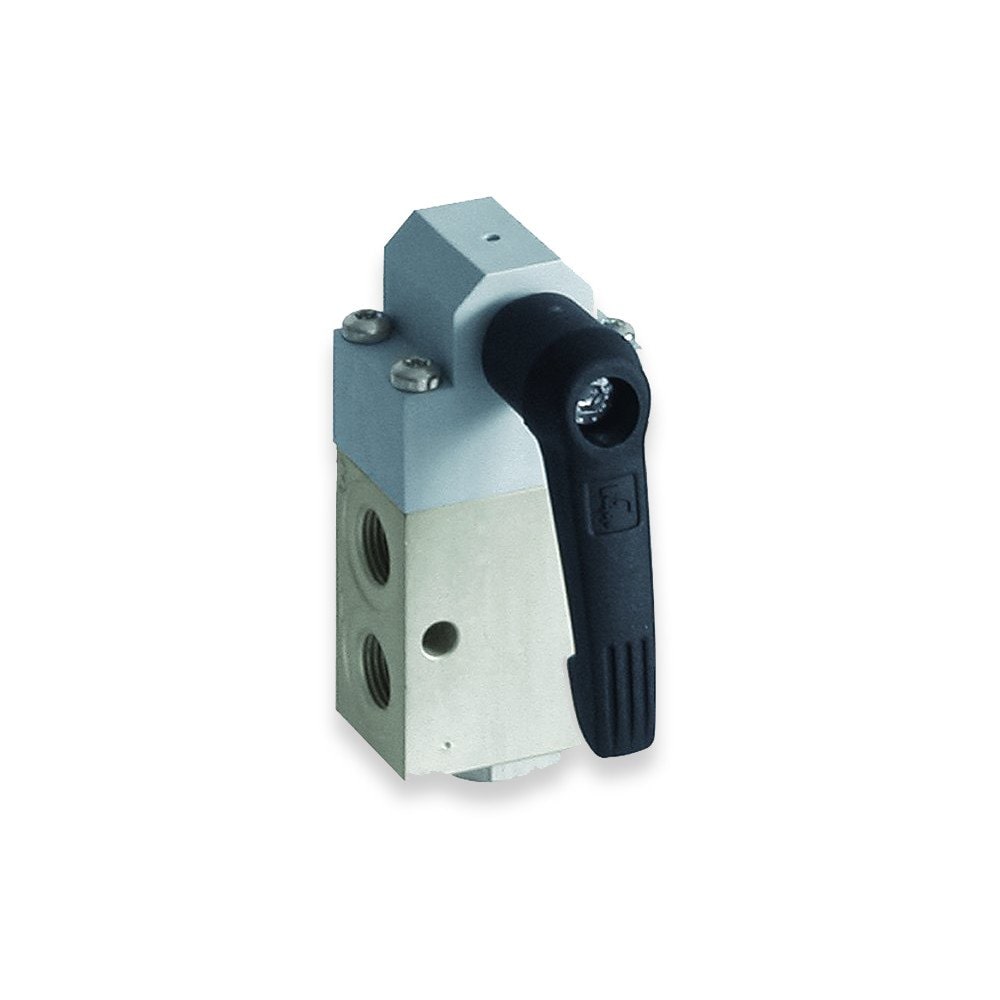

Pneumatic Manual Valve - K9 Series

Pneumatic Manual Valve - K9 Series

Non-overlapping poppet K9 valve features low actuating force and short response time. Applicable as normally closed or normally open valve. Many variations available: for every application the perfect solution.

Technical Specifications

  • Maximum Operating Temperature: 55 °C, 131 °F
  • Minimum Operating Temperature: -10 °C, -14 °F
  • Maximum Operating Pressure: 10 bar, 145 psig
  • Valve Type: Poppet valve
  • Number of Positions: 2
  • Number of Ports: 3
  • Actuation Type: Manual Operated
  • Override Functionality: Rotary lever, plunger, cam, pedal
  • Mounting Type: Inline
  • Port Size: 1/8"
  • Port Type: BSPP
  • Maximum Flow Rate: N/A
  • Nominal Flow Coefficient: 220 L/min
  • Pressure Rating: VAC to 145 psig, VAC to 10 bar
  • Operating Temperature: -10 to 55 °C, 14 to 131 °F
  • Media: Air
  • Lubricant: Non Lube
  • Body Material: Anodized Aluminium
  • Seal Material: N/A
Safety Warning

Full Product Description

The K9 Series is a family of manual or mechanical actuating 3/2 valves that can be mounted on a panel or in line connected. Available as normally open or normally closed with porting from 1/8” to ½” providing a range a flows allowing use in multiple applications.

Markets
• Machine Tools
• Miscellaneous Industrial
• Miscellaneous Manufacturing

Features/Benefits
• Panel mounting
• Manual or mechanical actuating
• Port range from 1/8” to ½”
• High flow with porting up to ½”

Applications
• Man Machine dialog
• Emergency Stop
• Cylinder end stroke detection
• High flow signal
