Pneumatic Round Body Cylinder - SRG_SRGM Series

Pneumatic Round Body Cylinder - SRG_SRGM Series

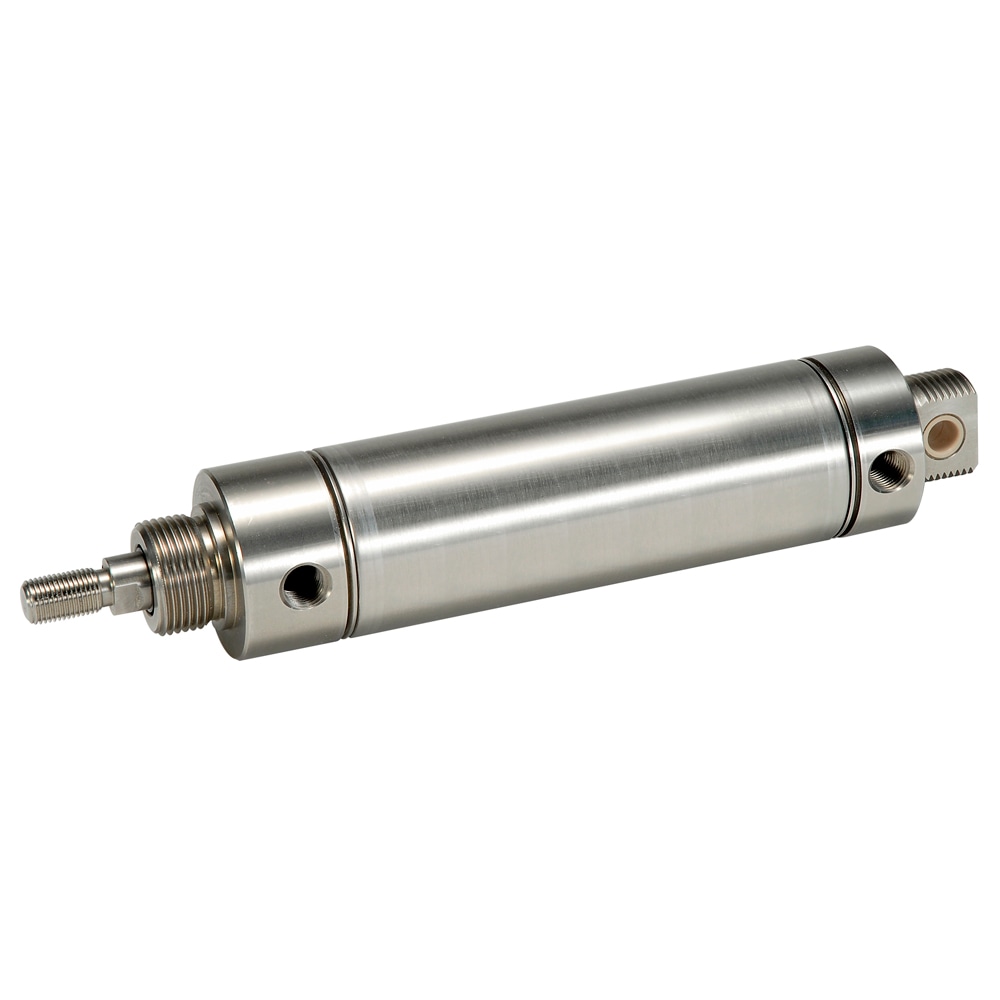

The SRG is an all stainless-steel round cylinder. SRG comes standard with 303 stainless-steel heads, caps, and a 304 stainless piston rod on all bore sizes. A urethane rod wiper is also standard. A magnetic version is available for sensing options.

Technical Specifications

  • Cylinder Type: Stainless Steel
  • Cylinder Action: Double Acting
  • Bore Diameter: 0.75 to 2.5 inch
  • Maximum Stroke Length: 304 mm, 12 inch
  • Extend Stroke Force: -, 44.18 to 490.8 lbs (at 100 psi)
  • Retract Stroke Force: -, 39.27 to 459.9 lbs (at 100 psi)
  • Cushioning Type: Bumper
  • Port Size: -
  • Rod End Thread Type: Male
  • Maximum Operating Pressure: -, 250 psi
  • Operating Temperature: -23 to 74 °C, -10 to 165 °F
  • Mounting Option: No
  • Specifications Met: -
  • Piston Rod Material: Stainless Steel
  • Body Material: Stainless Steel
  • End Cap Material: Stainless Steel AISI 303
  • Body Type: Round Body
  • Corrosion Resistance Included: Yes
  • Repairable: No
Safety Warning

Full Product Description

The SRG/SRGM Series cylinders are all stainless-steel round cylinders. The cylinders are standard with 303 stainless-steel heads and caps, and 304 stainless piston rod on all bore sizes. A urethene rod wiper is also standard, along with a magnetic version available for sensing options.

Markets:
• Factory Automation
• Automotive
• Industrial

Features/Benefits:
• Wide range of corrosion capability
• Design flexibility to meet specific requirements
• Point or continuous sensing
• Low weight
• Small Envelope

Applications:
• General industrial
• Assembly
• Conveyance
• Packaging
