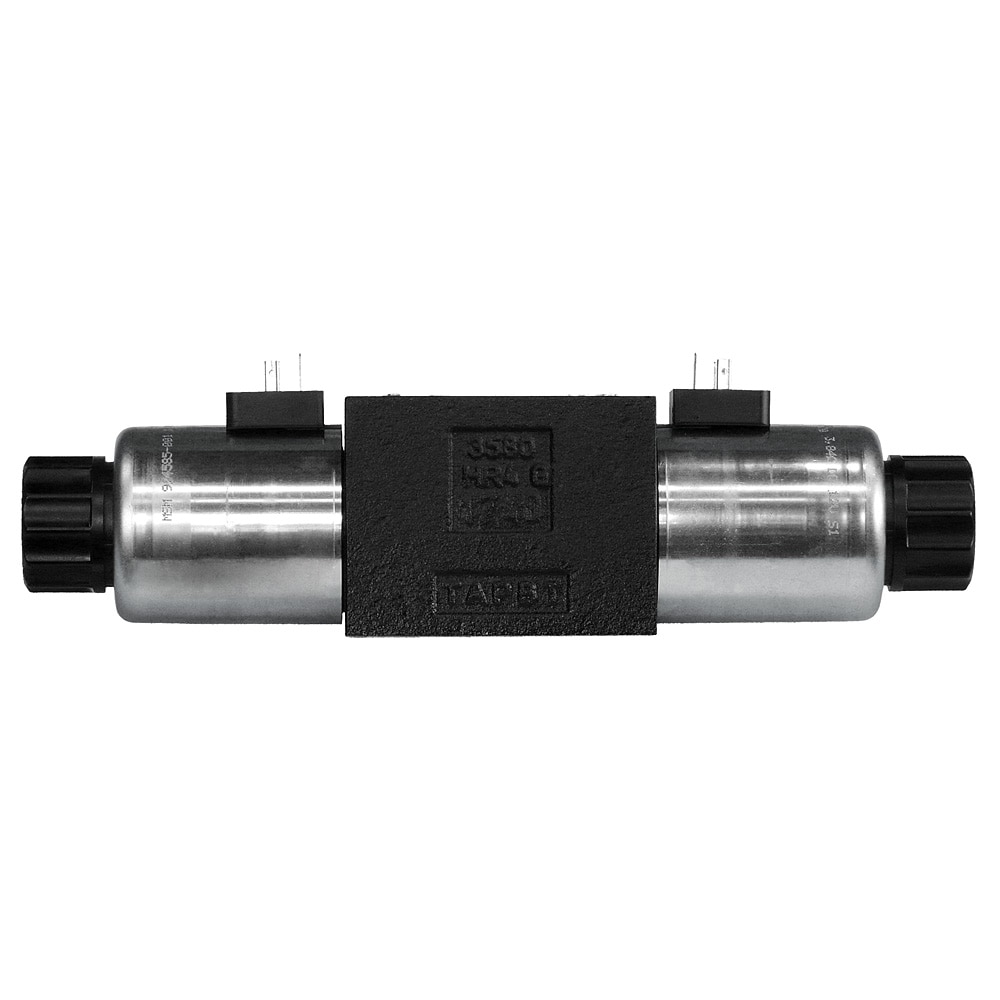

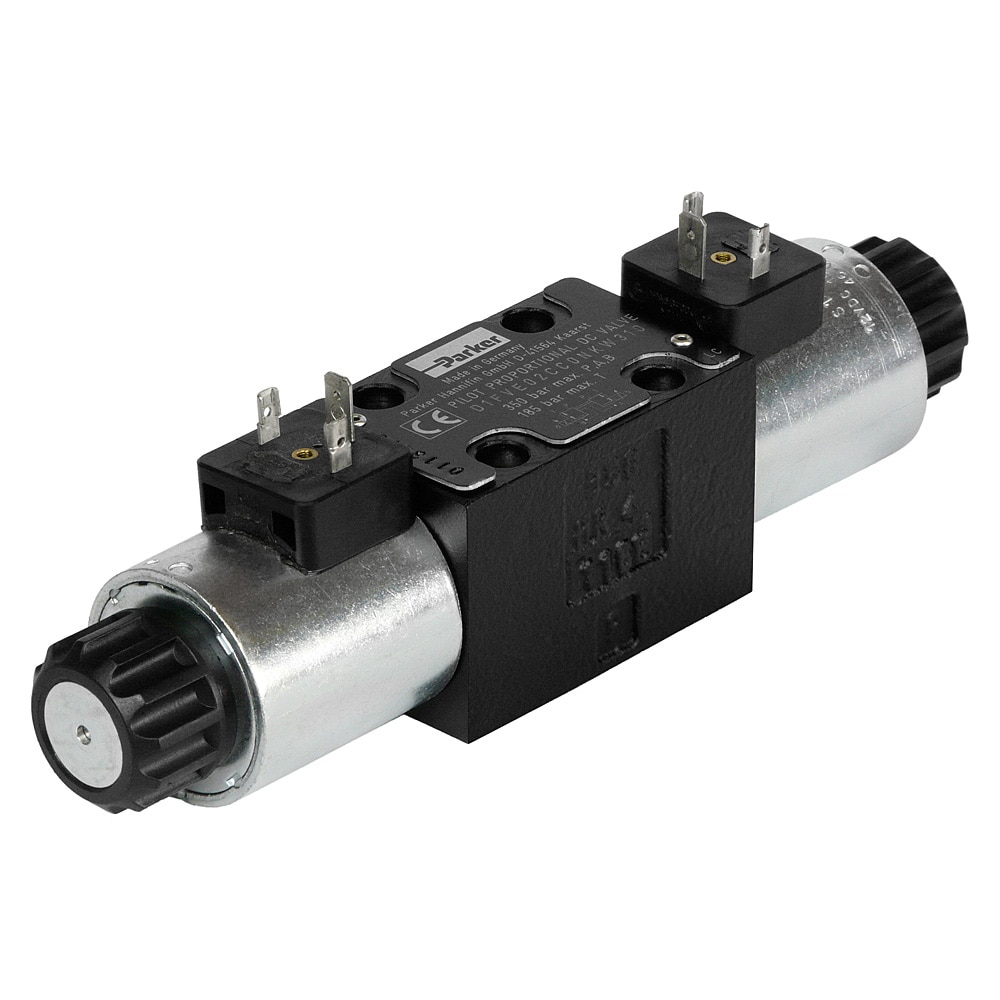

Proportional Pressure Reducing Valve Series - D1FV / D1FV*EE

Where to Buy

The robust and durable proportional pressure reducing valve series D1FV in NG06 (CETOP 03) provides a very good pressure control behaviour. It is optionally available as explosion proof version according to ATEX and IECEx.

Technical Specifications

  • Port Connection: NG06 / CETOP 03
  • Mounting Type: Subplate mounting
  • Actuation Type: Proportional, solenoid
  • Operation Type: Direct
  • Function: 2-way, 3-way
  • Maximum Operating Pressure: 350 bar
  • Maximum Flow Rate: 10 L/min
  • Maximum Operating Temperature: 60 (explosion-proof version: 40) °C
  • Minimum Operating Temperature: -20 (standard with NBR seal: -25) °C
  • For Fluid Type: Hydraulic Oil (according to DIN 51524 ... 535), Water Glycol
  • Mounting Position: Unrestricted
  • Weight: D1FV: 2.2, D1FV*EE: 3.5 kg
  • Seal Material: FPM, NBR
  • Body Material: Cast iron

chemicalComposition California Residents: Prop-65 Warning

Safety Warning

Full Product Description

The robust proportional pressure reducing valve series D1FV in size NG06 / CETOP 03 is predestined for precise pilot controls due to its excellent pressure control behaviour, resulting in an optimized process accuracy.

D1FV*EE
The D1FV*EE with explosion proof solenoids is based on the standard D1FV series. It is not only ATEX certified (explosion proof class is Ex e mb II T4 Gb for use in zone 1 and 2) but also equipped with IECEx compliant solenoids which are  certified  in accordance with IECEx standard for equipment class 2 G.

Markets
• Industrial

Features/Benefits:
• Robust, proven design that represents our long-term experience in hydraulics
• Outstanding pressure behaviour - perfectly suitable for pilot controls
• Low hysteresis - ensures high repeatability and thus improved process and product accuracy
• Short delivery time - no warehousing necessary
• Manual override - allows to actuate the valve without current
• Barometric feedback
• Pressure stages 25 bar and 45 bar
• Optional for D1FV*EE: Coil to permit ambient temperature up to +60 °C, modification XG371

Applications:
• Suitable for general hydraulic applications

Technical specifications:
The D1FV controls the pressure in the A- or B-ports using the barometric feedback principle. The parameters can be saved, changed and duplicated in combination with the digital power amplifier PWD00A-400. The value parameters can be edited with the common ProPxD software.

Related Documents

Compliance, Certifications & Safety
CERTIFICATE - DIN ISO 9001:2015 Certificate ISDE
CERTIFICATE - EC Declaration of Conformity 2014/34/EU (ATEX) +40° C
CERTIFICATE - EC Declaration of Conformity 2014/34/EU (ATEX) +60° C
CERTIFICATE - Position Paper ISDE 2006/42/EC and EN ISO 13849
Selector Guides
Parker Cross Reference Tool
Literature and Reference Materials
CATALOGUE - Hydraulic Valves Industrial Standard, Offline Version--MSG11-3500/UK
CATALOGUE - Hydraulic Valves Industrial Standard, Online Version--MSG11-3500/UK
CATALOGUE - Proportional Pressure Reducing Valve Series D1FV (Europe and Asia)
BRIEF OPERATION MANUAL - IECEx Proportional Pressure Reducing Valves / Proportional DC Valves
CATALOGUE - Explosion-Proof Valves, According to Directive 2014/34/EU (ATEX) (Europe and Asia)--MSG11-3343/UK
GENERAL INSTRUCTIONS - for Industrial Hydraulic Valves
OPERATING INSTRUCTIONS - Proportional Pressure Reducing Valve Series D1FV*EE (ATEX), Design 13
Proportional Pressure Reducing Valve Catalog - D1FV Series (North America)
Proportional Pressure Reducing Valve D1FV Series (North America)
×
View Catalog
Share / Email
Print
Products Pressure Control Range Spool Position Seal Material Solenoid Option Solenoid Connection
D1FVE02CC0VJE3EE 25 Operated in position a or b FPM 24 V / 1.15 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CE0NKW3 25 Operated in position a NBR 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02CK0NKE3EE 25 Operated in position b NBR 12 V / 2.3 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CC0NJE3EE 25 Operated in position a or b NBR 24 V / 1.15 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CC0NKE3EE 25 Operated in position a or b NBR 12 V / 2.3 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CC0NKW3 25 Operated in position a or b NBR 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02CC0VKE3EE 25 Operated in position a or b FPM 12 V / 2.3 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CC0VKW3 25 Operated in position a or b FPM 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02CE0NJE3EE 25 Operated in position a NBR 24 V / 1.15 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CE0NKE3EE 25 Operated in position a NBR 12 V / 2.3 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CE0VJE3EE 25 Operated in position a FPM 24 V / 1.15 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CE0VKW3 25 Operated in position a FPM 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02CK0NKW3 25 Operated in position b NBR 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02CK0VJE3EE 25 Operated in position b FPM 24 V / 1.15 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CK0VKE3EE 25 Operated in position b FPM 12 V / 2.3 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CK0VKW3 25 Operated in position b FPM 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02DC0NKW3 45 Operated in position a or b NBR 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02DC0VKW3 45 Operated in position a or b FPM 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02DE0NKW3 45 Operated in position a NBR 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02DE0VKW3 45 Operated in position a FPM 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02DK0NKW3 45 Operated in position b NBR 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02DK0VKW3 45 Operated in position b FPM 12 V / 2.2 A Connector as per EN 175301-803
D1FVE02CE0VJE3EEXG371 25 Operated in position a FPM 24 V / 1.10 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
D1FVE02CE0VKE3EE 25 Operated in position a FPM 12 V / 2.3 A Explosion proof with cable glands, explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
