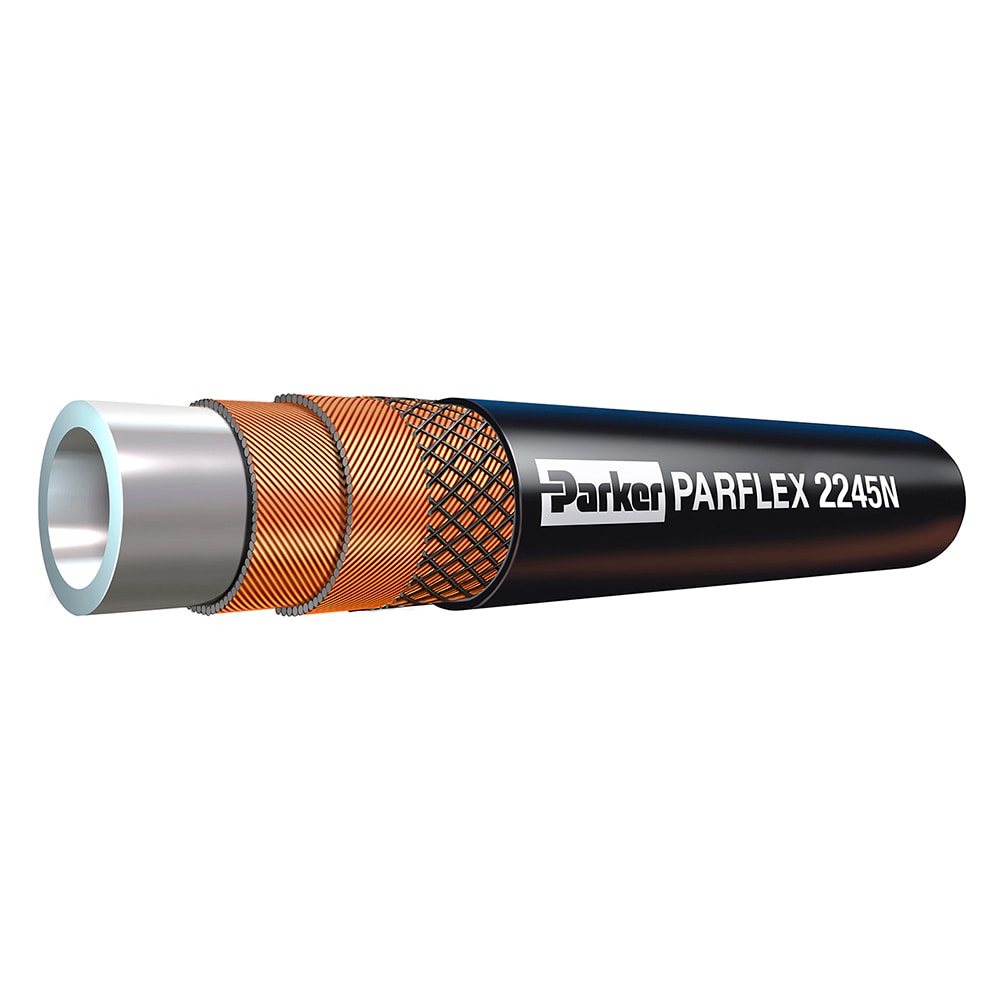

High Pressure Hose - 2245N

High Pressure Hose - 2245N

Where to Buy

High pressure hose handles pressures up to 6500 psi (45MPa).

Technical Specifications

  • Design Factor: 4
  • Media: Petroleum Hydraulic Fluids, Synthetic Hydraulic Fluids
  • Compatible Fitting: 43 Series
  • Specifications Met: SAE J517 and 100R2, Type AT, ISO 1436, Type 2SN
  • Weight: 0.25 to 0.92 kg/m, 0.17 to 0.62 lb/ft
  • Inside Diameter: 1/4 to 3/4 inch, 6 to 19 mm
  • Maximum Operating Temperature: 212 °F, 100 °C
  • Minimum Operating Temperature: -40 °F, -40 °C
  • Maximum Operating Pressure: 330 to 450 bar, 33.0 to 45.0 MPa, 4350 to 6525 psi
  • Application: Hydraulics, Industrial, Mobile Hydraulic Equipment
  • Cover Color: Black
  • Hose Reinforcement Material: 2 Spirals of High Tensile Steel Wire and 1 Braid of Steel Wire
  • Hose Inner Tube Material: Polyamide (PA)
  • Cover Material: Polyurethane, Polyamide (PA)
  • Minimum Bend Radius: 2-3/4 to 9-1/2 inch, 70 to 240 mm
  • Outside Diameter: 0.492 to 10.12 inch, 12.5 to 28.5 mm
  • Size: -4 to -12
Safety Warning

Full Product Description

Parker Polyflex High Pressure 2245N hose features high working pressures for larger sizes hoses and excellent chemical resistance. Typical applications general industrial applications including hydraulics, fluid transfer and gases.

Markets:
•Industrial
• Mobile Equipment
• Construction
• Refineries
• All markets requiring pressures over 4,000 psi

Features/Benefits:
• Compact design
• Excellent chemical resistance
• Wide range of fluid and gas compatibility

Applications:
• High Pressure Hydraulics • Gas Transfer
• Industrial Tools

Related Documents

Literature and Reference Materials
Catalog 4660 Parflex Thermoplastic & Fluoropolymer Hose and Tubing--CAT-4660
Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900
Parflex Hose Pressure Quick Reference Guide--4660-Parflex_Hose_Pressure
Parker Offer of Sale
Training
VIDEO: Parflex - Bridging the Gap
Contact & Support Information
Check Out Our Top-Quality Hoses and Fittings--(English)
Compliance, Certifications & Safety
Parflex Division EPA 6h Regulation
Parflex Division Manufacturers Directive
Parflex Division REACH Compliance
Parflex Division RoHS Certificate / WEEE Certificate Directive
Parflex Division SDS
Parflex Ravenna ISO 9001:2015 Certificate
Parflex Stafford ISO 9001 Certificate
Parker Division Proposition 65 Warning Language--Required_Prop_65_Warning
Product Demos & Tutorials
Parker_How to Video - For a Correct Hose Installation_UK--(English)
×
View Catalog
Share / Email
Print
Products Hose Inside Diameter Notes
 2245N-04V00 1/4 Polyurethane Jacket, Non-perforated cover
 2245N-06V30 3/8 Polyamide Jacket, Non-perforated cover
 2245N-08V00 1/2 Polyurethane Jacket, Non-perforated cover
 2245N-10V30 5/8 Polyamide Jacket, Non-perforated cover
 2245N-12V30 3/4 Polyamide Jacket, Non-perforated cover
