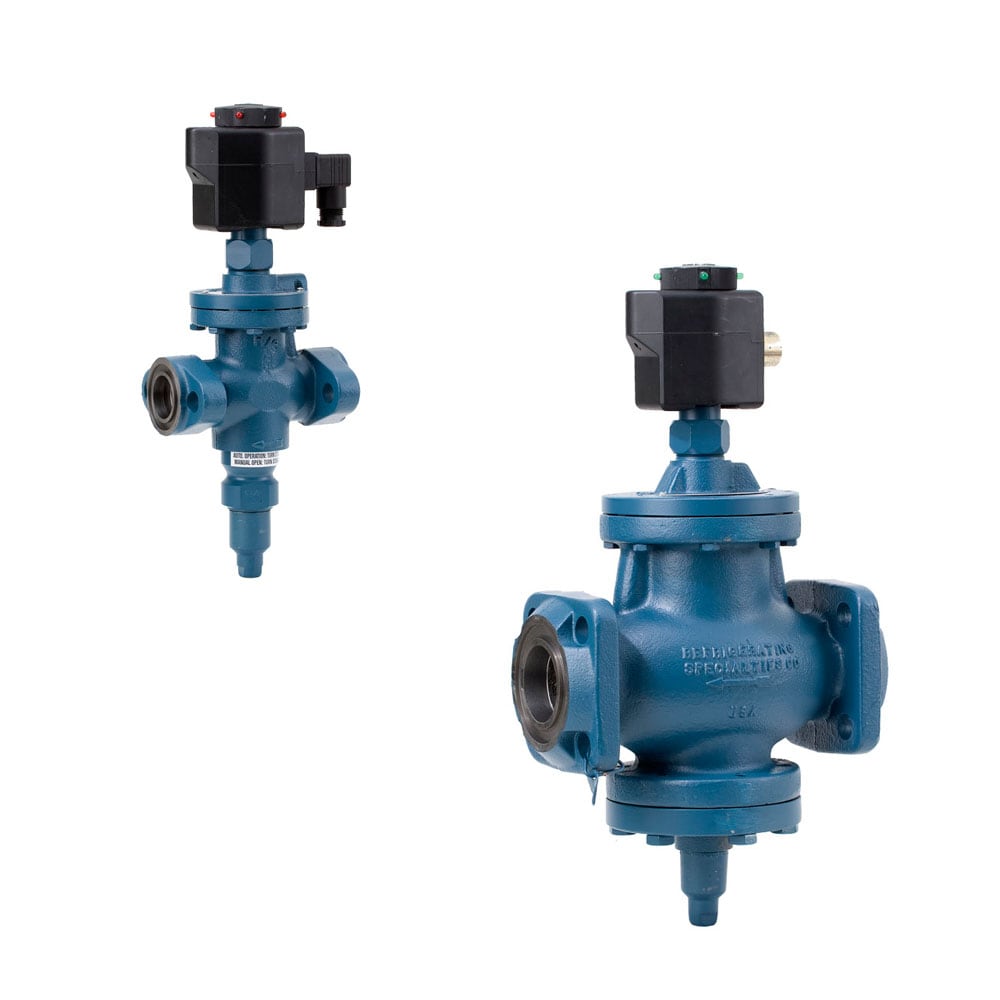

Solenoid Valves- S4A Type

Solenoid Valves- S4A Type

Where to Buy

The Type S4W, S4A, S4AD, and S4X are pilot operated valves made for easy field servicing.

Technical Specifications

  • Model Number: Please Configure Part for Model Number
  • Product Type: S4A, S4ASC, S4AE, S4W, S4AX, S4AD
  • Minimum Operating Temperature: -30 °C, -25 °F
  • Maximum Operating Temperature: 105 °C, 220 °F
  • Maximum Operating Pressure: 27.6 or 28 bar, 400 or 406 psig
  • Flow Coefficient: 1.2 to 470 Kv, 1.4 to 550 Cv
  • Operation Type: None, Slow Closing, External Actuating Pressure Supply, Explosion Proof, Dual Position
  • Port Size: 20 to 200 mm, 3/4" to 8" inch
  • Minimum Operating Capacity: Full Capacity, 17%, 50%, 35%
  • Strainer Type: Without Strainer or With Strainer
  • Flange Face Type: FPT, ODS, Socket Weld, Weld Neck, No Flange
  • Connection Size: None or 3/4" to 4"
  • Coil Type: Please Configure Part for Coil Style Specifications
  • Check Valve Included: No Check Valve, with CK-4, with CK-1
  • Valve Material: Standard Valve Material or Meets Pressure Equipment Directive (PED)
  • Plating Type: No Plating
  • Body Type: Flanged or Weld In
  • Body Material: Gray Iron, Ductile Iron, Cast Steel
  • Seat Material: PTFE or Metal
Safety Warning

Full Product Description

Parker’s S4 solenoids are the refrigeration industry’s standard for solenoid valves and have provided decades of safe and reliable operation.  These valves are highly configurable and can be provided with flanges for Socket Welding, Butt Welding, ODS connections, and Threaded connections.  The S4 is offered in sizes from ¾” (DN20) to 8” (DN200).  These valves may be opened by means of the manual opening stem for servicing or in case of electrical power failure.  As the S4 valves up to 4” feature a flanged connection they may be easily removed from the system for servicing.  The S4 valves are pilot operated and require a minimum 0.21 bar (3 psi) pressure drop to fully open.  The S4AD is a spring closing, pilot operated, dual-position solenoid valve which is crucial for evaporator control groups that use hot gas defrost.  The dual position function of the S4AD allows the system to equalize before fully opening and can prevent liquid hammer.  The S4X is an explosion proof hazardous environment type solenoid carrying a NEMA Type 4 and 7 classification.

Market:

• Industrial Refrigeration
• Commercial Refrigeration

Features and Benefits:
S4A
• Standard Coil Housing Meets NEMA 3R and NEMA 4- Rain Tight
• Coil Housing Surpasses NEMA Salt Spray Test
• Plunger-Needle Assembly Same for S4A, S5A, S6N, S6A, S8F
• Molded Class “F” Coil Construction
• Same Coil Fits Most Refrigerating Specialties Solenoid Valves
• Pilot Light Available
• Stainless Steel Needle
• Manual Opening Stem
• Design Pressure (MRP): 28 bar (400 PSIG)
S4W
• Cast Steel Body–Strong, Light Weight
• Welds Directly In The Line-No Flanges
• Removable Seat-Serviceable From Top Side
• Maximum Opening Pressure Difference (MOPD): 21 bar (300 psig)
• PTFE Pilot Seat
• Streamlined Fluid Flow Pattern
• Pilot Solenoid Parts Are Same As Used With Most Other R/S Solenoids
• Design Pressure (MRP):27.6 bar (400 psig)
• Manual Opening Stem
S4AD
• Prevents the damaging effects of vapor propelled liquid
• Combined use as a hot gas and soft gas valve
• Integrated S6A Pilot Solenoids
• Standard Coil Housing meets NEMA 3R and NEMA 4- Rain Tight
• Reduced installation costs
• Pilot light available
• Manual Opening Stem
• Maximum Rated Pressure (MRP): 27.6bar (400psig)
S4X
• Explosion Proof
• Hazardous Environment Type
• Standard Coil Housing meets NEMA Type 4 and 7

Application:
• Refrigerant Liquid Lines, Hot Gas Lines, or Suction Lines in a temperature range of -45° to 105° C (-50° to 220° F)
• The dual-position feature of the S4AD is specifically designed to help aid against the damaging effects of liquid hammer and sudden liquid deceleration.
• This valve is typically applied as a combination hot gas valve and soft gas valve or as a liquid solenoid.
• Hazardous Environment (S4X)
View Catalog
Share / Email
Print
Products Port Size (mm) Port Size (inch) Operation Style Minimum Operating Capacity Strainer Type Connection Flange Type Coil Type Check Valve Type Valve Material Plating Body Material Seat Material Body Type
S4X200NS25T1XSN 20mm 3/4" Explosion Proof Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200NX00T1XSN 20mm 3/4" Explosion Proof Full Capacity Without Strainer None No Flange 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200NX00W1XSN 20mm 3/4" Explosion Proof Full Capacity Without Strainer None No Flange 240AC~60Hz-220AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200NX00X0XSN 20mm 3/4" Explosion Proof Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200YF20T1XSN 20mm 3/4" Explosion Proof Full Capacity With Strainer 3/4" FPT 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200YK07T1XSN 20mm 3/4" Explosion Proof Full Capacity With Strainer 7/8" ODS 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200YK07X0XSN 20mm 3/4" Explosion Proof Full Capacity With Strainer 7/8" ODS No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200YS20T1XSN 20mm 3/4" Explosion Proof Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200YS25T14SN 20mm 3/4" Explosion Proof Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4A200YS20B31SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B34SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B3XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B44SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B4XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B54SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B5XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B64SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B6XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20D1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A500NX00B4XSN 50mm 2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NX00B5XSN 50mm 2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NX00B6XSN 50mm 2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NX00D1XSN 50mm 2" None Full Capacity Without Strainer None No Flange 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NX00F7XSN 50mm 2" None Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NX00H1XSN 50mm 2" None Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NX00X0XPN 50mm 2" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A500NX00X0XSN 50mm 2" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NX00Y0XPN 50mm 2" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A500YF50B1XSN 50mm 2" None Full Capacity With Strainer 2" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YF50B3XSN 50mm 2" None Full Capacity With Strainer 2" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YF50B6XSN 50mm 2" None Full Capacity With Strainer 2" FPT 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YF50X0XSN 50mm 2" None Full Capacity With Strainer 2" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YK17B1XSN 50mm 2" None Full Capacity With Strainer 2-1/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YK17M1XSN 50mm 2" None Full Capacity With Strainer 2-1/8" ODS 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YK21B2XSN 50mm 2" None Full Capacity With Strainer 2-5/8" ODS 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS38B1XSN 50mm 2" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS38B34SN 50mm 2" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS38B3XSN 50mm 2" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS38B6XSN 50mm 2" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4D320YS38B6XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS38R1XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS38X0XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YW32B4XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Weld Neck 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YX00B1XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YX00B4XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D400NS38B1XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NS38B3XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NS38B6XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NS38H1XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 1-1/2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650NX00X0XPN 65mm 2-1/2" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D650NX00X0XSN 65mm 2-1/2" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YS65B1XSN 65mm 2-1/2" Dual Position Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YS65B24SN 65mm 2-1/2" Dual Position Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YS65B3XSN 65mm 2-1/2" Dual Position Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YS65B6XSN 65mm 2-1/2" Dual Position Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YS75B3XSN 65mm 2-1/2" Dual Position Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YW65B1XSN 65mm 2-1/2" Dual Position Full Capacity With Strainer 2-1/2" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YW65B3XSN 65mm 2-1/2" Dual Position Full Capacity With Strainer 2-1/2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YW65F7XSN 65mm 2-1/2" Dual Position Full Capacity With Strainer 2-1/2" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4A250YW32B2XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Weld Neck 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YW32B3XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00B14SN 25mm 1" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00B1XSN 25mm 1" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00B2XSN 25mm 1" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00B34SN 25mm 1" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00B3XSN 25mm 1" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00B4XSN 25mm 1" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00B6XSN 25mm 1" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00F7XSN 25mm 1" None Full Capacity With Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A205YS32B34SN 20mm 3/4" None 50% With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS32B3XSN 20mm 3/4" None 50% With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS32F3XSN 20mm 3/4" None 50% With Strainer 1-1/4" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YX00B1XSN 20mm 3/4" None 50% With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A250NF20B2XSN 25mm 1" None Full Capacity Without Strainer 3/4" FPT 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF20B3XSN 25mm 1" None Full Capacity Without Strainer 3/4" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF20M1XSN 25mm 1" None Full Capacity Without Strainer 3/4" FPT 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF20X0XSN 25mm 1" None Full Capacity Without Strainer 3/4" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF25B1XSN 25mm 1" None Full Capacity Without Strainer 1" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF25B3XSN 25mm 1" None Full Capacity Without Strainer 1" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25G7XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 240AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25H1XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25H3XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25M1XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25R1XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25X04SN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25X0XPN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200YS25X0XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B14SN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B1XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A400NS38B6XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38D1XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38F1XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38F3XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38F7XPN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400NS38F7XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38G1XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 240AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38H1XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38L4XPN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 24AC~50Hz-DIN Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400NS38X0XPN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4X200YX00T1XSN 20mm 3/4" Explosion Proof Full Capacity With Strainer None No Flange 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X205NS20T1XSN 20mm 3/4" Explosion Proof 50% Without Strainer 3/4" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4X250NF25T1XSN 25mm 1" Explosion Proof Full Capacity Without Strainer 1" FPT 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X250NK09T1XSN 25mm 1" Explosion Proof Full Capacity Without Strainer 1-1/8" ODS 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X250NK11T1XSN 25mm 1" Explosion Proof Full Capacity Without Strainer 1-3/8" ODS 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X250NS25T1XSN 25mm 1" Explosion Proof Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X250NX00T1XSN 25mm 1" Explosion Proof Full Capacity Without Strainer None No Flange 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X250NX00W1XSN 25mm 1" Explosion Proof Full Capacity Without Strainer None No Flange 240AC~60Hz-220AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X250NX00X0XSN 25mm 1" Explosion Proof Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X250YS20T1XSN 25mm 1" Explosion Proof Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A200YS20E1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20F14SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 230AC~50Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20F1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20F3XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20F7XPN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200YS20F7XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20H14SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 240AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20H1XPN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200YS20H1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20H3XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4D400NS38X0XPN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D400NS38X0XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NS50B1XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NS50X0XPN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D400NS50X0XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NW38B3XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 1-1/2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NW50X0XPN 40mm 1-5/8" Dual Position Full Capacity Without Strainer 2" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D400NX00B1XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NX00B2XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NX00B3XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NX00B4XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YW75B3XPN 65mm 2-1/2" Dual Position Full Capacity With Strainer 3" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D650YW75B3XSN 65mm 2-1/2" Dual Position Full Capacity With Strainer 3" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650YX00B3XSN 65mm 2-1/2" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750NS75B1XSN 80mm 3" Dual Position Full Capacity Without Strainer 3" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750NW75B1XSN 80mm 3" Dual Position Full Capacity Without Strainer 3" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750NX00B1XSN 80mm 3" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750NX00X0XPN 80mm 3" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D750NX00X0XSN 80mm 3" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YS75B1XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YS75B3XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YS75B4XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4A250YX00H1XSN 25mm 1" None Full Capacity With Strainer None No Flange 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00R1XSN 25mm 1" None Full Capacity With Strainer None No Flange 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00X04PN 25mm 1" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style with CK-4 Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250YX00X04SN 25mm 1" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YX00X0XPN 25mm 1" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250YX00X0XSN 25mm 1" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NF32B1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NF32B2XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" FPT 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NF32F1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" FPT 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NF32H1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" FPT 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF25F1XSN 25mm 1" None Full Capacity Without Strainer 1" FPT 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF25H1XSN 25mm 1" None Full Capacity Without Strainer 1" FPT 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF25L1XSN 25mm 1" None Full Capacity Without Strainer 1" FPT 24AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF25M1XSN 25mm 1" None Full Capacity Without Strainer 1" FPT 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF25R1XSN 25mm 1" None Full Capacity Without Strainer 1" FPT 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NF25X0XSN 25mm 1" None Full Capacity Without Strainer 1" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NK09B1XSN 25mm 1" None Full Capacity Without Strainer 1-1/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NK11B4XSN 25mm 1" None Full Capacity Without Strainer 1-3/8" ODS 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS20B1XSN 25mm 1" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS20B3XSN 25mm 1" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B21SN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B24SN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B2XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B31SN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B34SN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B3XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B4XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B54SN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B5XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B64SN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A400NS38X0XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS50A1XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld 115AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS50B1XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS50B2XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS50B3XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS50B4XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS50B6XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS50F1XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YSP0F7XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YSP0H1XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4X250YS25T1XSN 25mm 1" Explosion Proof Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X320NS32T1XSN 32mm 1-1/4" Explosion Proof Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X320NS38T1XSN 32mm 1-1/4" Explosion Proof Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X320NX00T1XSN 32mm 1-1/4" Explosion Proof Full Capacity Without Strainer None No Flange 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X320NX00W1XSN 32mm 1-1/4" Explosion Proof Full Capacity Without Strainer None No Flange 240AC~60Hz-220AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X320NX00X0XSN 32mm 1-1/4" Explosion Proof Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X400NK17T1XSN 40mm 1-5/8" Explosion Proof Full Capacity Without Strainer 2-1/8" ODS 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4X400NX00T1XSN 40mm 1-5/8" Explosion Proof Full Capacity Without Strainer None No Flange 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4X400NX00W1XSN 40mm 1-5/8" Explosion Proof Full Capacity Without Strainer None No Flange 240AC~60Hz-220AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4X500NF50T1XSN 50mm 2" Explosion Proof Full Capacity Without Strainer 2" FPT 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4A200YS20M1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20R14SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 24DC-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20R1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20X04SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20X0XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B14SN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B1XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B21SN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B24SN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A400YF50B1XSN 40mm 1-5/8" None Full Capacity With Strainer 2" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS38F3XSN 50mm 2" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50B14SN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50B1XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50B2XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50B34SN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50B3XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50B4XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50B5XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50B64SN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50B6XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4D400NX00B6XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400NX00X0XSN 40mm 1-5/8" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YF38B3XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YK17B3XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 2-1/8" ODS 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS38B1XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS38B2XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS38B3XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS38B4XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS38B5XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS38B6XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YS75B5XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YS75B6XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YS75F1XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YS75H1XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YW75B2XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Weld Neck 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YW75B3XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YW75F7XSN 80mm 3" Dual Position Full Capacity With Strainer 3" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D750YX00B4XSN 80mm 3" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00NSP0B1XSN 100mm 4" Dual Position Full Capacity Without Strainer 4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00NSP0B3XSN 100mm 4" Dual Position Full Capacity Without Strainer 4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00NX00B1XSN 100mm 4" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4A320NF32X0XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NF38B1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/2" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32A1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 115AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32B14SN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32B1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32B2XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32B31SN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32B3XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32B4XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32B5XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS20B6XSN 25mm 1" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS20X0XSN 25mm 1" None Full Capacity Without Strainer 3/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25B1XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25B2XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25B34SN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25B3XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25B4XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25B5XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25B6XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25E1XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4D400YS38E1XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS38F7XPN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D400YS38H1XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS50B1XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS50B2XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS50B3XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS50B5XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS50B6XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS50E1XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YS50X0XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00NX00X0XSN 100mm 4" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00YSP0B1XSN 100mm 4" Dual Position Full Capacity With Strainer 4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00YSP0B3XSN 100mm 4" Dual Position Full Capacity With Strainer 4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00YWP0B1XSN 100mm 4" Dual Position Full Capacity With Strainer 4" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00YWP0B3XSN 100mm 4" Dual Position Full Capacity With Strainer 4" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00YWP0F7XSN 100mm 4" Dual Position Full Capacity With Strainer 4" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4DA00YX00B4XSN 100mm 4" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4A500YS50F7XPN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A500YS50F7XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50H1XPN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A320NS32B64SN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32B6XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32D1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32F1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS32F7XPN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320NS32F7XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NS38X0XPN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320NS38X0XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NW32B1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NW32D1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Weld Neck 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25F1XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25F7XPN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250NS25F7XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25G1XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 240AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25G7XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 240AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25H1XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25M1XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS25X0XPN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250NS25X0XSN 25mm 1" None Full Capacity Without Strainer 1" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS32B1XSN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32B6XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32D1XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32E1XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32F1XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32F3XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32F7XPN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200YS32H1XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32H3XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32H4XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32R1XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4AA00YSP0X0XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YWP0B1XSN 100mm 4" None Full Capacity With Strainer 4" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YWP0B3XSN 100mm 4" None Full Capacity With Strainer 4" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YWP0B6XSN 100mm 4" None Full Capacity With Strainer 4" Weld Neck 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YWP0F7XSN 100mm 4" None Full Capacity With Strainer 4" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YX00B1XSN 100mm 4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YX00B3XSN 100mm 4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YX00X0XSN 100mm 4" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C200NS20B4XSN 20mm 3/4" Slow Closing Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C200NX00B5XSN 20mm 3/4" Slow Closing Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4X500NS50T1XSN 50mm 2" Explosion Proof Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4X500NX00T1XSN 50mm 2" Explosion Proof Full Capacity Without Strainer None No Flange 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4X500NX00X0XSN 50mm 2" Explosion Proof Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4X500YS50T1XSN 50mm 2" Explosion Proof Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D200NF20B1XSN 20mm 3/4" Dual Position Full Capacity Without Strainer 3/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200NS20B1XSN 20mm 3/4" Dual Position Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200NS20F1XSN 20mm 3/4" Dual Position Full Capacity Without Strainer 3/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200NS25B1XSN 20mm 3/4" Dual Position Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200NS32B64SN 20mm 3/4" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200NX00B1XSN 20mm 3/4" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A400YS38B14SN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38B1XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38B24SN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38B2XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38B34SN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38B3XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38B4XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38B5XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38B64SN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38B6XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50E14SN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC EXT -Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50E1XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50F1XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4D200YS25B2XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS25B3XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS25B5XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS25B64SN 20mm 3/4" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS25B6XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS32B1XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS32B2XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4C200NX00X0XSN 20mm 3/4" Slow Closing Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C200YS20B1XSN 20mm 3/4" Slow Closing Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C200YS20B4XSN 20mm 3/4" Slow Closing Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C200YS20B5XSN 20mm 3/4" Slow Closing Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C200YS20H6XSN 20mm 3/4" Slow Closing Full Capacity With Strainer 3/4" Socket Weld 240AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C200YS25B5XSN 20mm 3/4" Slow Closing Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C200YS32B3XSN 20mm 3/4" Slow Closing Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C200YS32B5XSN 20mm 3/4" Slow Closing Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C205NS32X0XSN 20mm 3/4" Slow Closing 50% Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C205NX00X0XSN 20mm 3/4" Slow Closing 50% Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4D200NX00B3XSN 20mm 3/4" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200NX00B4XSN 20mm 3/4" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200NX00X0XSN 20mm 3/4" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS20B1XSN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS20B2XSN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS20B3XSN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS20B44SN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS20B4XSN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS20B5XSN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS20F1XSN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A400YS38E1XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38F1XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38F3XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38F7XPN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400YS38F7XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38F9XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-DIN CE Approved with Green Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38H1XPN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400YS38H1XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38R14SN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 24DC-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38R1XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4D200YS32B34SN 20mm 3/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS32B3XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS32B5XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS32B64SN 20mm 3/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS32B6XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS32X04SN 20mm 3/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YX00B14SN 20mm 3/4" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YX00B1XSN 20mm 3/4" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YX00B2XSN 20mm 3/4" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YX00B4XSN 20mm 3/4" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A250NW25B1XSN 25mm 1" None Full Capacity Without Strainer 1" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NW25D1XSN 25mm 1" None Full Capacity Without Strainer 1" Weld Neck 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NW25F7XSN 25mm 1" None Full Capacity Without Strainer 1" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NW25X0XPN 25mm 1" None Full Capacity Without Strainer 1" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250NW25X0XSN 25mm 1" None Full Capacity Without Strainer 1" Weld Neck No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NW32X0XPN 25mm 1" None Full Capacity Without Strainer 1-1/4" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250NW32X0XSN 25mm 1" None Full Capacity Without Strainer 1-1/4" Weld Neck No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00B14SN 25mm 1" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00B1XSN 25mm 1" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4D400YW50B3XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer 2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YX00B3XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D400YX00B4XSN 40mm 1-5/8" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500NS50B1XSN 50mm 2" Dual Position Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500NS50B3XSN 50mm 2" Dual Position Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500NS50X0XPN 50mm 2" Dual Position Full Capacity Without Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4A200NF20B1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF20B2XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" FPT 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF20B3XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF20B4XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" FPT 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A500YS50H1XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50M1XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50R1XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YS50X0XPN 50mm 2" None Full Capacity With Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A500YS50X0XSN 50mm 2" None Full Capacity With Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YW50B1XSN 50mm 2" None Full Capacity With Strainer 2" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YW50F1XSN 50mm 2" None Full Capacity With Strainer 2" Weld Neck 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YW50H4XSN 50mm 2" None Full Capacity With Strainer 2" Weld Neck 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YX00B14SN 50mm 2" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YX00B1XSN 50mm 2" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A320NW32F7XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NW32H4XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Weld Neck 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NW32X0XPN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A650YW65B34SN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YW65B3XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YW65B6XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Weld Neck 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YW65F7XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YW65R1XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Weld Neck 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YW75B3XSN 65mm 2-1/2" None Full Capacity With Strainer 3" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YX00B1XSN 65mm 2-1/2" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A250NS32B3XSN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS32B4XSN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS32B64SN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS32F1XSN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS32F7XSN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS32H1XSN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS32X04SN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NS32X0XPN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250NS32X0XSN 25mm 1" None Full Capacity Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NW32X0XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/4" Weld Neck No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS32X0XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YW20B3XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YW20F1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Weld Neck 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YW20F7XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YW20H4XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Weld Neck 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YW32B3XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00B14SN 20mm 3/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00B1XSN 20mm 3/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00B24SN 20mm 3/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00B2XSN 20mm 3/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00B24SN 25mm 1" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00B2XSN 25mm 1" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00B3XSN 25mm 1" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00B4XSN 25mm 1" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00B6XSN 25mm 1" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00E1XSN 25mm 1" None Full Capacity Without Strainer None No Flange 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00F1XPN 25mm 1" None Full Capacity Without Strainer None No Flange 230AC~50Hz-Leaded Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250NX00F1XSN 25mm 1" None Full Capacity Without Strainer None No Flange 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00F7XSN 25mm 1" None Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00H1XSN 25mm 1" None Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF20D1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" FPT 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF20F1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" FPT 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF20M1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" FPT 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF20R1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" FPT 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF20X0XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF25B1XSN 20mm 3/4" None Full Capacity Without Strainer 1" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF25B2XSN 20mm 3/4" None Full Capacity Without Strainer 1" FPT 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF25B3XSN 20mm 3/4" None Full Capacity Without Strainer 1" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF25X0XSN 20mm 3/4" None Full Capacity Without Strainer 1" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF32B1XSN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A500YX00B2XSN 50mm 2" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YX00B3XSN 50mm 2" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YX00B64SN 50mm 2" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YX00B6XSN 50mm 2" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YX00D1XSN 50mm 2" None Full Capacity With Strainer None No Flange 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YX00F7XSN 50mm 2" None Full Capacity With Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500YX00X0XSN 50mm 2" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NK21X0XPN 65mm 2-1/2" None Full Capacity Without Strainer 2-5/8" ODS No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A650NK27B1XSN 65mm 2-1/2" None Full Capacity Without Strainer 3-1/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NK27X0XPN 65mm 2-1/2" None Full Capacity Without Strainer 3-1/8" ODS No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A650YX00X0XSN 65mm 2-1/2" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NK27X0XPN 80mm 3" None Full Capacity Without Strainer 3-1/8" ODS No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A750NK27X0XSN 80mm 3" None Full Capacity Without Strainer 3-1/8" ODS No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NS75B1XPN4 80mm 3" None Full Capacity Without Strainer 3" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Gray Iron Metal Flanged
S4A750NS75B1XSN 80mm 3" None Full Capacity Without Strainer 3" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NS75B3XSN 80mm 3" None Full Capacity Without Strainer 3" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NS75B4XSN 80mm 3" None Full Capacity Without Strainer 3" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NS75H1XSN 80mm 3" None Full Capacity Without Strainer 3" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NS75M1XSN 80mm 3" None Full Capacity Without Strainer 3" Socket Weld 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NS75X0XSN 80mm 3" None Full Capacity Without Strainer 3" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A320NW38H1XSN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/2" Weld Neck 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NW38X0XPN 32mm 1-1/4" None Full Capacity Without Strainer 1-1/2" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320NX00A1XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 115AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00B1XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00B2XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00B3XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00B4XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00B5XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00B6XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00F1XPN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 230AC~50Hz-Leaded Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200YX00B34SN 20mm 3/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00B3XSN 20mm 3/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00B4XSN 20mm 3/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00B64SN 20mm 3/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00B6XSN 20mm 3/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00D1XSN 20mm 3/4" None Full Capacity With Strainer None No Flange 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00F7XSN 20mm 3/4" None Full Capacity With Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00M1XSN 20mm 3/4" None Full Capacity With Strainer None No Flange 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00X04SN 20mm 3/4" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00X0XPN 20mm 3/4" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4C205YS20B1XSN 20mm 3/4" Slow Closing 50% With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C250NF32B4XSN 25mm 1" Slow Closing Full Capacity Without Strainer 1-1/4" FPT 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C250NS25B1XSN 25mm 1" Slow Closing Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C250NS32B1XSN 25mm 1" Slow Closing Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C250NX00X0XSN 25mm 1" Slow Closing Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C250YS25B1XSN 25mm 1" Slow Closing Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C250YS25F14SN 25mm 1" Slow Closing Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C250YS32B1XSN 25mm 1" Slow Closing Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C250YS32B5XSN 25mm 1" Slow Closing Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C250YS32H1XSN 25mm 1" Slow Closing Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4D200YS20F3XSN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS20X04SN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS20X0XSN 20mm 3/4" Dual Position Full Capacity With Strainer 3/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D200YS25B1XSN 20mm 3/4" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A400NS50F7XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS50X0XPN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400NS50X0XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NW38F7XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NW38H1XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Weld Neck 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NW38X0XPN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400YS38R4XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld 24DC-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS38X0XPN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400YS38X0XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B14SN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B1XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B2XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B31SN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B34SN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B3XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B4XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4D205YS25R1XSN 20mm 3/4" Dual Position 50% With Strainer 1" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D250NF25B1XSN 25mm 1" Dual Position Full Capacity Without Strainer 1" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NS25B1XSN 25mm 1" Dual Position Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NS25B3XSN 25mm 1" Dual Position Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NS25F1XSN 25mm 1" Dual Position Full Capacity Without Strainer 1" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NS25M4XSN 25mm 1" Dual Position Full Capacity Without Strainer 1" Socket Weld 24AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NS25X0XSN 25mm 1" Dual Position Full Capacity Without Strainer 1" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NS32B2XSN 25mm 1" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NS32B3XSN 25mm 1" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NS32B6XSN 25mm 1" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NS32F1XSN 25mm 1" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A250NX00H3XSN 25mm 1" None Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00H4XSN 25mm 1" None Full Capacity Without Strainer None No Flange 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00M1XSN 25mm 1" None Full Capacity Without Strainer None No Flange 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00R4XSN 25mm 1" None Full Capacity Without Strainer None No Flange 24DC-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00X0XPN 25mm 1" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250NX00X0XSN 25mm 1" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250NX00Y0XPN 25mm 1" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250NX00Y0XSN 25mm 1" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF20B1XSN 25mm 1" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF20B3XSN 25mm 1" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NF32B4XSN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" FPT 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NK07B1XSN 20mm 3/4" None Full Capacity Without Strainer 7/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20B14SN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20B1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20B24SN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20B2XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20B34SN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20B3XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20B4XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20B5XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A650NS65B1XPN4 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Gray Iron Metal Flanged
S4A650NS65B1XSN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NS65B3XSN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NS65B4XSN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NS65B64SN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NS65F1XSN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NS65F7XPN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A650NS65H1XSN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NS65X0XPN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A650NS65X0XSN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NW75B1XSN 80mm 3" None Full Capacity Without Strainer 3" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NW75B3XSN 80mm 3" None Full Capacity Without Strainer 3" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NW75B4XSN 80mm 3" None Full Capacity Without Strainer 3" Weld Neck 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NW75F1XSN 80mm 3" None Full Capacity Without Strainer 3" Weld Neck 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NW75F7XSN 80mm 3" None Full Capacity Without Strainer 3" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NW75X0XSN 80mm 3" None Full Capacity Without Strainer 3" Weld Neck No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NX00B1XSN 80mm 3" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NX00B2XSN 80mm 3" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NX00B3XSN 80mm 3" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NX00B4XSN 80mm 3" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A320NX00F1XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00F7XPN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320NX00F7XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00H1XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00H3XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00R1XPN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 24DC-Leaded Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320NX00R1XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00R4XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 24DC-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00S4XPN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange 48DC-DIN Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320NX00X04SN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YX00X0XSN 20mm 3/4" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A201NX00X0XSN 20mm 3/4" None 17% Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A201YS20B3XSN 20mm 3/4" None 17% With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NF20B1XSN 20mm 3/4" None 50% Without Strainer 3/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NF25B1XSN 20mm 3/4" None 50% Without Strainer 1" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NS20B1XSN 20mm 3/4" None 50% Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NS20B3XSN 20mm 3/4" None 50% Without Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A320YS38B14SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B24SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C320NX00B1XSN 32mm 1-1/4" Slow Closing Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C320NX00X0XSN 32mm 1-1/4" Slow Closing Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C320YF32B1XSN 32mm 1-1/4" Slow Closing Full Capacity With Strainer 1-1/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C320YS32B1XSN 32mm 1-1/4" Slow Closing Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C320YS38B3XSN 32mm 1-1/4" Slow Closing Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C320YS38B54SN 32mm 1-1/4" Slow Closing Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C320YX00X0XSN 32mm 1-1/4" Slow Closing Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C323NX00X0XSN 32mm 1-1/4" Slow Closing 35% Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C400NX00B1XSN 40mm 1-5/8" Slow Closing Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C400NX00X0XSN 40mm 1-5/8" Slow Closing Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NW50B1XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NW50E1XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Weld Neck 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NW50H1XSN 40mm 1-5/8" None Full Capacity Without Strainer 2" Weld Neck 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NW50X0XPN 40mm 1-5/8" None Full Capacity Without Strainer 2" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400NX00B1XSN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NX00B2XSN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NX00B3XSN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NX00B4XSN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NX00B6XSN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NX00F1XSN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B5XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B64SN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50B6XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50E1XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50F1XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50F7XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50H1XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50R1XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YS50X0XPN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400YS50X0XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4D250NS32X0XPN 25mm 1" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE N/A
S4D250NX00B1XSN 25mm 1" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NX00B2XSN 25mm 1" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NX00B3XSN 25mm 1" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NX00B4XSN 25mm 1" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NX00B6XSN 25mm 1" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NX00F7XSN 25mm 1" Dual Position Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250NX00X0XPN 25mm 1" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE N/A
S4D250NX00X0XSN 25mm 1" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS25B14SN 25mm 1" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS25B1XSN 25mm 1" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A250YF25B14SN 25mm 1" None Full Capacity With Strainer 1" FPT 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF25B1XSN 25mm 1" None Full Capacity With Strainer 1" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF25B2XSN 25mm 1" None Full Capacity With Strainer 1" FPT 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF25B34SN 25mm 1" None Full Capacity With Strainer 1" FPT 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF25B3XSN 25mm 1" None Full Capacity With Strainer 1" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF25H1XSN 25mm 1" None Full Capacity With Strainer 1" FPT 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF25H3XSN 25mm 1" None Full Capacity With Strainer 1" FPT 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF25R1XSN 25mm 1" None Full Capacity With Strainer 1" FPT 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF25X0XSN 25mm 1" None Full Capacity With Strainer 1" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YF32B1XSN 25mm 1" None Full Capacity With Strainer 1-1/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20B6XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20E1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20F1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20F7XPN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NS20F7XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20G7XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 240AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20H1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS20X0XPN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NS20X0XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS25B1XSN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A650NS75B1XSN 65mm 2-1/2" None Full Capacity Without Strainer 3" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NS75B3XSN 65mm 2-1/2" None Full Capacity Without Strainer 3" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NW65B1XSN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NW65B3XSN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NW65X0XPN 65mm 2-1/2" None Full Capacity Without Strainer 2-1/2" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A650NX00B1XSN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NX00B2XSN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NX00B3XSN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NX00B4XSN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NX00B6XSN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NX00B6XSN 80mm 3" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NX00X0XPN 80mm 3" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A750NX00X0XSN 80mm 3" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750NX00Y0XPN 80mm 3" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A750YS75B1XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75B2XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75B34SN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75B3XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75B4XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75B54SN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A250YF32B2XSN 25mm 1" None Full Capacity With Strainer 1-1/4" FPT 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YK09B1XSN 25mm 1" None Full Capacity With Strainer 1-1/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YK11B1XSN 25mm 1" None Full Capacity With Strainer 1-3/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS20B1XSN 25mm 1" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS20B24SN 25mm 1" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS20B34SN 25mm 1" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS20B3XSN 25mm 1" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS20B6XSN 25mm 1" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25A1XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 115AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25A7XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 115AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS25B24SN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS25B2XSN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS25B34SN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS25B3XSN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS25B6XSN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS25F7XPN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NS25F7XSN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS25H1XSN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS25X0XPN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NS25X0XSN 20mm 3/4" None Full Capacity Without Strainer 1" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A650NX00F7XSN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NX00H1XSN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NX00X0XPN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A650NX00X0XSN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650NX00Y0XPN 65mm 2-1/2" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A650YS65B1XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65B2XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65B34SN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65B3XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65B4XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75B5XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75B6XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75E1XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75F1XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75F3XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75H1XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YS75X0XPN 80mm 3" None Full Capacity With Strainer 3" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A750YS75X0XSN 80mm 3" None Full Capacity With Strainer 3" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YW75B1XSN 80mm 3" None Full Capacity With Strainer 3" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YW75B34SN 80mm 3" None Full Capacity With Strainer 3" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A320NX00X0XPN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320NX00X0XSN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320NX00Y0XPN 32mm 1-1/4" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320YF32B1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YF32B3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YF32B6XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" FPT 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YF32H1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" FPT 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YF32H3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" FPT 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YF38B1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32A1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 115AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B2XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B31SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B34SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B4XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B54SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B5XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B64SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38B6XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38D1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4C400YS50B3XSN 40mm 1-5/8" Slow Closing Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C400YX00X0XSN 40mm 1-5/8" Slow Closing Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C500NX00X0XSN 50mm 2" Slow Closing Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C500YS50A1XSN 50mm 2" Slow Closing Full Capacity With Strainer 2" Socket Weld 115AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C500YS50B1XSN 50mm 2" Slow Closing Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C650NX00B1XSN 65mm 2-1/2" Slow Closing Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C650NX00X0XSN 65mm 2-1/2" Slow Closing Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4C750NX00B1XSN 80mm 3" Slow Closing Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E200NX00X0XSN 20mm 3/4" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E200YS20B1XSN 20mm 3/4" External Actuating Pressure Supply Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A400NX00F7XSN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NX00H1XSN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NX00X0XPN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400NX00X0XSN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NX00Y0XPN 40mm 1-5/8" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400YF38B1XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A200NX00F1XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00F7XPN 20mm 3/4" None Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NX00F7XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00H1XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A400YW38B14SN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Weld Neck 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YW38B1XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YW38B4XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Weld Neck 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YW38H4XSN 40mm 1-5/8" None Full Capacity With Strainer 1-1/2" Weld Neck 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YW50B3XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YW50F7XSN 40mm 1-5/8" None Full Capacity With Strainer 2" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YX00B14SN 40mm 1-5/8" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YX00B1XSN 40mm 1-5/8" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YX00B2XSN 40mm 1-5/8" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YX00B34SN 40mm 1-5/8" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4D250YS25B2XSN 25mm 1" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS25B3XSN 25mm 1" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS25B4XSN 25mm 1" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS25B5XSN 25mm 1" Dual Position Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS25F7XSN 25mm 1" Dual Position Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS25F9XSN 25mm 1" Dual Position Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved with Green Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS32B1XSN 25mm 1" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS32B2XSN 25mm 1" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS32B3XSN 25mm 1" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS32B4XSN 25mm 1" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A320YS32A7XPN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 115AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320YS32B14SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B24SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B2XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B31SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B34PN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320YS32B34SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B44SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38D3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 208AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38E1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38F1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38F2XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38F3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38F7XPN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320YS38F7XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38H1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38H4XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38R1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E200YS20B4XSN 20mm 3/4" External Actuating Pressure Supply Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E250NS25B3XSN 25mm 1" External Actuating Pressure Supply Full Capacity Without Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E250NX00X0XSN 25mm 1" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E320NX00X0XPN 32mm 1-1/4" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4E320NX00X0XSN 32mm 1-1/4" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E320YS32B3XSN 32mm 1-1/4" External Actuating Pressure Supply Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E320YS38B3XSN 32mm 1-1/4" External Actuating Pressure Supply Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E400NS50A7XPN 40mm 1-5/8" External Actuating Pressure Supply Full Capacity Without Strainer 2" Socket Weld 115AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4E400NX00X0XPN 40mm 1-5/8" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4E400YS38B4XSN 40mm 1-5/8" External Actuating Pressure Supply Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A200NX00H2XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00R1XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00X04PN 20mm 3/4" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style with CK-4 Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NX00X0XPN 20mm 3/4" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NX00X0XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00Y0XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20A1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 115AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20B14SN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20B1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20B24SN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A400YX00B3XSN 40mm 1-5/8" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YX00B64SN 40mm 1-5/8" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YX00B6XSN 40mm 1-5/8" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400YX00X0XSN 40mm 1-5/8" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A403NX00B1XSN 40mm 1-5/8" None 35% Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NF50B1XSN 50mm 2" None Full Capacity Without Strainer 2" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NF50F1XSN 50mm 2" None Full Capacity Without Strainer 2" FPT 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NF50X0XSN 50mm 2" None Full Capacity Without Strainer 2" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NK17B1XSN 50mm 2" None Full Capacity Without Strainer 2-1/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NK17B3XSN 50mm 2" None Full Capacity Without Strainer 2-1/8" ODS 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4D250YS32B5XSN 25mm 1" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS32B6XSN 25mm 1" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS32E1XSN 25mm 1" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YS32X0XSN 25mm 1" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YX00B1XSN 25mm 1" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YX00B3XSN 25mm 1" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D250YX00B4XSN 25mm 1" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NS32B1XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NS32B2XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NS32B3XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A250YS25B14SN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B1XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B24SN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B2XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B34SN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B3XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B44SN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B4XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B54SN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B5XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS32B1XSN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS32B3XSN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS32B5XSN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS32B64SN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS32D1XSN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" Socket Weld 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NS32X0XPN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NS32X0XSN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NW20D1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Weld Neck 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NW20F7XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NW20H1XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Weld Neck 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A650YS65B5XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65B6XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65E1XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65F1XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65F3XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65F7XPN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A650YS65F7XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65H1XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65M4XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld 24AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS65X04SN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YW75B3XSN 80mm 3" None Full Capacity With Strainer 3" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YW75B6XSN 80mm 3" None Full Capacity With Strainer 3" Weld Neck 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YW75F7XSN 80mm 3" None Full Capacity With Strainer 3" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YX00B1XSN 80mm 3" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YX00B3XSN 80mm 3" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A750YX00X0XSN 80mm 3" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NSP0B1XSN 100mm 4" None Full Capacity Without Strainer 4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NSP0B3XSN 100mm 4" None Full Capacity Without Strainer 4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NSP0B4XSN 100mm 4" None Full Capacity Without Strainer 4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NSP0F1XSN 100mm 4" None Full Capacity Without Strainer 4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A250YS25B64SN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25B6XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25E1XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25F14SN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25F1XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25F3XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25F7XPN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250YS25F7XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25F9XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved with Green Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25H14SN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 240AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NW20H4XSN 20mm 3/4" None Full Capacity Without Strainer 3/4" Weld Neck 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NW20X0XPN 20mm 3/4" None Full Capacity Without Strainer 3/4" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NW25X0XPN 20mm 3/4" None Full Capacity Without Strainer 1" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NW25X0XSN 20mm 3/4" None Full Capacity Without Strainer 1" Weld Neck No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NW32X0XPN 20mm 3/4" None Full Capacity Without Strainer 1-1/4" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200NX00A1XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 115AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00B1XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00B24SN 20mm 3/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00B2XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00B3XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A650YS65X0XPN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A650YS65X0XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS75B1XSN 65mm 2-1/2" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS75B3XSN 65mm 2-1/2" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS75B4XSN 65mm 2-1/2" None Full Capacity With Strainer 3" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS75E1XSN 65mm 2-1/2" None Full Capacity With Strainer 3" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS75H1XSN 65mm 2-1/2" None Full Capacity With Strainer 3" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YS75X0XSN 65mm 2-1/2" None Full Capacity With Strainer 3" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YW65B1XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A650YW65B2XSN 65mm 2-1/2" None Full Capacity With Strainer 2-1/2" Weld Neck 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NSP0F7XSN 100mm 4" None Full Capacity Without Strainer 4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NSP0X0XSN 100mm 4" None Full Capacity Without Strainer 4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NWP0B1XSN 100mm 4" None Full Capacity Without Strainer 4" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NWP0B3XSN 100mm 4" None Full Capacity Without Strainer 4" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NX00B1XSN 100mm 4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NX00B3XSN 100mm 4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NX00X0XPN 100mm 4" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4AA00NX00X0XSN 100mm 4" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00NX00Y0XPN 100mm 4" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4AA00YSP0B1XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A320YS32B4XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B54SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B5XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B64SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32B6XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32D1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32D3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 208AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32E1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32F14SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32F1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38X04SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS38X0XPN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320YS38X0XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YW32B1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YW32B3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YW32B64SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Weld Neck 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YW32F1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Weld Neck 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YW32G1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Weld Neck 240AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YW32H4XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Weld Neck 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YW38B3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E500NS50B2XSN 50mm 2" External Actuating Pressure Supply Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E500NS50B3XSN 50mm 2" External Actuating Pressure Supply Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E500NS50E1XSN 50mm 2" External Actuating Pressure Supply Full Capacity Without Strainer 2" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E500NS50F7XPN 50mm 2" External Actuating Pressure Supply Full Capacity Without Strainer 2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4E500NX00B1XSN 50mm 2" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E500NX00H1XSN 50mm 2" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E500NX00X0XPN 50mm 2" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4E500NX00X0XSN 50mm 2" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E500YS50B2XSN 50mm 2" External Actuating Pressure Supply Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E500YS50B3XSN 50mm 2" External Actuating Pressure Supply Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A200YF20B2XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20B34SN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20B3XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20B4XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20B5XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20B64SN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20B6XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20D1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20D3XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 208AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20F1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A500NK17D1XSN 50mm 2" None Full Capacity Without Strainer 2-1/8" ODS 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NK17X0XPN 50mm 2" None Full Capacity Without Strainer 2-1/8" ODS No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A500NK17X0XSN 50mm 2" None Full Capacity Without Strainer 2-1/8" ODS No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NK21B1XSN 50mm 2" None Full Capacity Without Strainer 2-5/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NK21X0XPN 50mm 2" None Full Capacity Without Strainer 2-5/8" ODS No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A500NS50B1XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50B2XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50B3XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50B4XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50B5XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4D320NS32B4XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NS32M4XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld 24AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NS32X0XPN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE N/A
S4D320NS32X0XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NS38X0XPN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE N/A
S4D320NW38B3XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NW38X0XPN 32mm 1-1/4" Dual Position Full Capacity Without Strainer 1-1/2" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE N/A
S4D320NX00B1XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NX00B2XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NX00B3XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4A500NS50B6XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50D1XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50F1XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50F7XPN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A500NS50F7XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50H1XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50H3XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NS50X0XPN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A500NS50X0XSN 50mm 2" None Full Capacity Without Strainer 2" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NW50B1XSN 50mm 2" None Full Capacity Without Strainer 2" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NW50B3XSN 50mm 2" None Full Capacity Without Strainer 2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NW50B64SN 50mm 2" None Full Capacity Without Strainer 2" Weld Neck 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NW50F1XSN 50mm 2" None Full Capacity Without Strainer 2" Weld Neck 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NW50F7XSN 50mm 2" None Full Capacity Without Strainer 2" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NW50H1XSN 50mm 2" None Full Capacity Without Strainer 2" Weld Neck 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NW50R1XSN 50mm 2" None Full Capacity Without Strainer 2" Weld Neck 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NW50X0XPN 50mm 2" None Full Capacity Without Strainer 2" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A500NX00B1XSN 50mm 2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NX00B2XSN 50mm 2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A500NX00B3XSN 50mm 2" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A200YK07B1XSN 20mm 3/4" None Full Capacity With Strainer 7/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YK07B3XSN 20mm 3/4" None Full Capacity With Strainer 7/8" ODS 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YK07H1XSN 20mm 3/4" None Full Capacity With Strainer 7/8" ODS 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YK09B34SN 20mm 3/4" None Full Capacity With Strainer 1-1/8" ODS 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20A1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 115AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20A7XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 115AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B14SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B24SN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS20B2XSN 20mm 3/4" None Full Capacity With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4D320NX00B4XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NX00B6XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NX00F3XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NX00F7XPN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE N/A
S4A250YS25H1XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25H3XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25R1XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS25X04SN 25mm 1" None Full Capacity With Strainer 1" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4D320NX00F7XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320NX00X0XPN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE N/A
S4D320NX00X0XSN 32mm 1-1/4" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YF32B2XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" FPT 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YK14B3XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-5/8" ODS 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32B14SN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4A200NX00B4XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00B6XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00D1XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00D3XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 208AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200NX00E1XSN 20mm 3/4" None Full Capacity Without Strainer None No Flange 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4D500NX00B1XSN 50mm 2" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500NX00B3XSN 50mm 2" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500NX00B4XSN 50mm 2" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500NX00B6XSN 50mm 2" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500NX00M1XSN 50mm 2" Dual Position Full Capacity Without Strainer None No Flange 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4A250YS25X0XSN 25mm 1" None Full Capacity With Strainer 1" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B14SN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B1XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B24SN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B2XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B31SN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B34SN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B3XPN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250YS32B3XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B44SN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4AA00YSP0B2XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YSP0B3XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YSP0B4XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YSP0B6XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YSP0E1XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4AA00YSP0F1XSN 100mm 4" None Full Capacity With Strainer 4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NS20B64SN 20mm 3/4" None 50% Without Strainer 3/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NS20F1XSN 20mm 3/4" None 50% Without Strainer 3/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NS25B64SN 20mm 3/4" None 50% Without Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NS32X0XSN 20mm 3/4" None 50% Without Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A320YS32F7XPN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320YS32F7XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32H14SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32H1XPN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320YS32H1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32H3XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32H4XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32M1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32R14SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 24DC-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32R1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YW38F1XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Weld Neck 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YW38X0XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/2" Weld Neck No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00B14SN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00B1XSN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00B2XSN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00B34SN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00B3XSN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00B64SN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00B6XSN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00F1XSN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4E650NX00X0XSN 65mm 2-1/2" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E650YS65F7XPN 65mm 2-1/2" External Actuating Pressure Supply Full Capacity With Strainer 2-1/2" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4E750NS75B1XSN 80mm 3" External Actuating Pressure Supply Full Capacity Without Strainer 3" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4E750NX00X0XSN 80mm 3" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4EA00NX00X0XPN 100mm 4" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4EA00NX00X0XSN 100mm 4" External Actuating Pressure Supply Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4WAA1NB1SN 125mm 5" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4WAA1NB3SN 125mm 5" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4WAA1NX0SN 125mm 5" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4WAA1YB1SN 125mm 5" None Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4A200YF20H1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20R1XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF20X0XSN 20mm 3/4" None Full Capacity With Strainer 3/4" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF25B1XSN 20mm 3/4" None Full Capacity With Strainer 1" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF25B2XSN 20mm 3/4" None Full Capacity With Strainer 1" FPT 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF25B3XSN 20mm 3/4" None Full Capacity With Strainer 1" FPT 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF25B4XSN 20mm 3/4" None Full Capacity With Strainer 1" FPT 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF25X0XSN 20mm 3/4" None Full Capacity With Strainer 1" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF32B1XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YF32B4XSN 20mm 3/4" None Full Capacity With Strainer 1-1/4" FPT 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4D320YS32B1XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32B2XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32B34SN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32B3XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32B4XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32B5XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32B6XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32E1XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32F7XPN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE N/A
S4D320YS32F9XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved with Green Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D500NX00X0XPN 50mm 2" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D500NX00X0XSN 50mm 2" Dual Position Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YS50B1XSN 50mm 2" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YS50B24SN 50mm 2" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YS50B2XSN 50mm 2" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YS50B34SN 50mm 2" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YS50B3XSN 50mm 2" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YS50B5XSN 50mm 2" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YS50B6XSN 50mm 2" Dual Position Full Capacity With Strainer 2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YS50E1XSN 50mm 2" Dual Position Full Capacity With Strainer 2-1/2" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YW50B1XSN 50mm 2" Dual Position Full Capacity With Strainer 2" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4A250YS32B4XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B54SN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B5XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B64SN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32B6XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32E1XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32F1XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32F7XPN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250YS32F7XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32H1XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A205NX00B1XSN 20mm 3/4" None 50% Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NX00B3XSN 20mm 3/4" None 50% Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NX00D1XSN 20mm 3/4" None 50% Without Strainer None No Flange 208AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205NX00X0XSN 20mm 3/4" None 50% Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS20B14SN 20mm 3/4" None 50% With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS20B1XSN 20mm 3/4" None 50% With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS20B24SN 20mm 3/4" None 50% With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS20B2XSN 20mm 3/4" None 50% With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS20B34SN 20mm 3/4" None 50% With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS20B3XSN 20mm 3/4" None 50% With Strainer 3/4" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A320YS32R44SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld 24DC-DIN Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32X04SN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YS32X0XPN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320YS32X0XSN 32mm 1-1/4" None Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B2XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B31SN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light With CK-1 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B34SN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B3XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B44SN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B4XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00F2XSN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 230AC~50Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00F7XPN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A320YX00H14SN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 240AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00H2XSN 32mm 1-1/4" None Full Capacity With Strainer None No Flange 240AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00X04SN 32mm 1-1/4" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A320YX00X0XSN 32mm 1-1/4" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A323NX00B1XSN 32mm 1-1/4" None 35% Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A323NX00X0XSN 32mm 1-1/4" None 35% Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NF38B1XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" FPT 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NF38X0XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" FPT No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4WAA1YX0SN 125mm 5" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4WAA2NB1SN 150mm 6" None Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4WAA2NX0SN 150mm 6" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4WAA2NY0SN 150mm 6" None Full Capacity Without Strainer None No Flange No Coil Style DC-No Coil Style No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4WAA2YX0SN 150mm 6" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4WAA3NX0SN 200mm 8" None Full Capacity Without Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4WAA3YX0SN 200mm 8" None Full Capacity With Strainer None No Flange No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Cast Steel Metal Weld In
S4X200NF20T1XSN 20mm 3/4" Explosion Proof Full Capacity Without Strainer 3/4" FPT 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200NK07T1XSN 20mm 3/4" Explosion Proof Full Capacity Without Strainer 7/8" ODS 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4X200NK09T1XSN 20mm 3/4" Explosion Proof Full Capacity Without Strainer 1-1/8" ODS 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32M1XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32R4XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld 24DC-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS32X0XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS38B1XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS38B2XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS38B34SN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS38B3XPN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE N/A
S4D320YS38B3XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS38B4XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D320YS38B5XSN 32mm 1-1/4" Dual Position Full Capacity With Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A
S4D500YW50B3XSN 50mm 2" Dual Position Full Capacity With Strainer 2" Weld Neck 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YX00B1XSN 50mm 2" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YX00B3XSN 50mm 2" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D500YX00B4XSN 50mm 2" Dual Position Full Capacity With Strainer None No Flange 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650NS65B3XSN 65mm 2-1/2" Dual Position Full Capacity Without Strainer 2-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650NS65B4XSN 65mm 2-1/2" Dual Position Full Capacity Without Strainer 2-1/2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650NS75X0XPN 65mm 2-1/2" Dual Position Full Capacity Without Strainer 3" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D650NW65X0XPN 65mm 2-1/2" Dual Position Full Capacity Without Strainer 2-1/2" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D650NW75X0XPN 65mm 2-1/2" Dual Position Full Capacity Without Strainer 3" Weld Neck No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal N/A
S4D650NX00B1XSN 65mm 2-1/2" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4D650NX00B3XSN 65mm 2-1/2" Dual Position Full Capacity Without Strainer None No Flange 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal N/A
S4A250YS32H3XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 240AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32M1XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32R1XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld 24DC-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32X04SN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YS32X0XPN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A250YS32X0XSN 25mm 1" None Full Capacity With Strainer 1-1/4" Socket Weld No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YW25B1XSN 25mm 1" None Full Capacity With Strainer 1" Weld Neck 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YW25B4XSN 25mm 1" None Full Capacity With Strainer 1" Weld Neck 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YW25F7XSN 25mm 1" None Full Capacity With Strainer 1" Weld Neck 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A250YW25M1XSN 25mm 1" None Full Capacity With Strainer 1" Weld Neck 24AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A205YS20B64SN 20mm 3/4" None 50% With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS20B6XSN 20mm 3/4" None 50% With Strainer 3/4" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS20R14SN 20mm 3/4" None 50% With Strainer 3/4" Socket Weld 24DC-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS25B14SN 20mm 3/4" None 50% With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS25B1XSN 20mm 3/4" None 50% With Strainer 1" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS25B2XSN 20mm 3/4" None 50% With Strainer 1" Socket Weld 120AC~60Hz-Leaded Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS25B34SN 20mm 3/4" None 50% With Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS25B3XSN 20mm 3/4" None 50% With Strainer 1" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS25B64SN 20mm 3/4" None 50% With Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A205YS32B1XSN 20mm 3/4" None 50% With Strainer 1-1/4" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A200YS25B54SN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B5XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Red LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B64SN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25B6XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25D3XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 208AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25E1XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 120AC EXT -Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25F1XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25F3XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A200YS25F7XPN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron PTFE Flanged
S4A200YS25F7XSN 20mm 3/4" None Full Capacity With Strainer 1" Socket Weld 230AC~50Hz-DIN CE Approved No Check Valve Standard Valve Material No Plating Gray Iron PTFE Flanged
S4A400NK17B1XSN 40mm 1-5/8" None Full Capacity Without Strainer 2-1/8" ODS 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NK17H1XSN 40mm 1-5/8" None Full Capacity Without Strainer 2-1/8" ODS 240AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NK17X0XPN 40mm 1-5/8" None Full Capacity Without Strainer 2-1/8" ODS No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400NK21X0XPN 40mm 1-5/8" None Full Capacity Without Strainer 2-5/8" ODS No Coil Style AC-No Coil Style No Check Valve Meets Pressure Equipment Directive (PED) No Plating Ductile Iron Metal Flanged
S4A400NK21X0XSN 40mm 1-5/8" None Full Capacity Without Strainer 2-5/8" ODS No Coil Style AC-No Coil Style No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38B14SN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38B1XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38B3XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-Leaded Green LED Pilot Light No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38B4XSN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Standard No Check Valve Standard Valve Material No Plating Gray Iron Metal Flanged
S4A400NS38B64SN 40mm 1-5/8" None Full Capacity Without Strainer 1-1/2" Socket Weld 120AC~60Hz-DIN Green LED Pilot Light with CK-4 Standard Valve Material No Plating Gray Iron Metal Flanged
S4X200NS20T1XSN 20mm 3/4" Explosion Proof Full Capacity Without Strainer 3/4" Socket Weld 120AC~60Hz-110AC~50Hz-Leaded Standard No Check Valve Standard Valve Material No Plating Gray Iron PTFE N/A

Recommended

Close [ x ]
Full Screen
687PDC
687475
