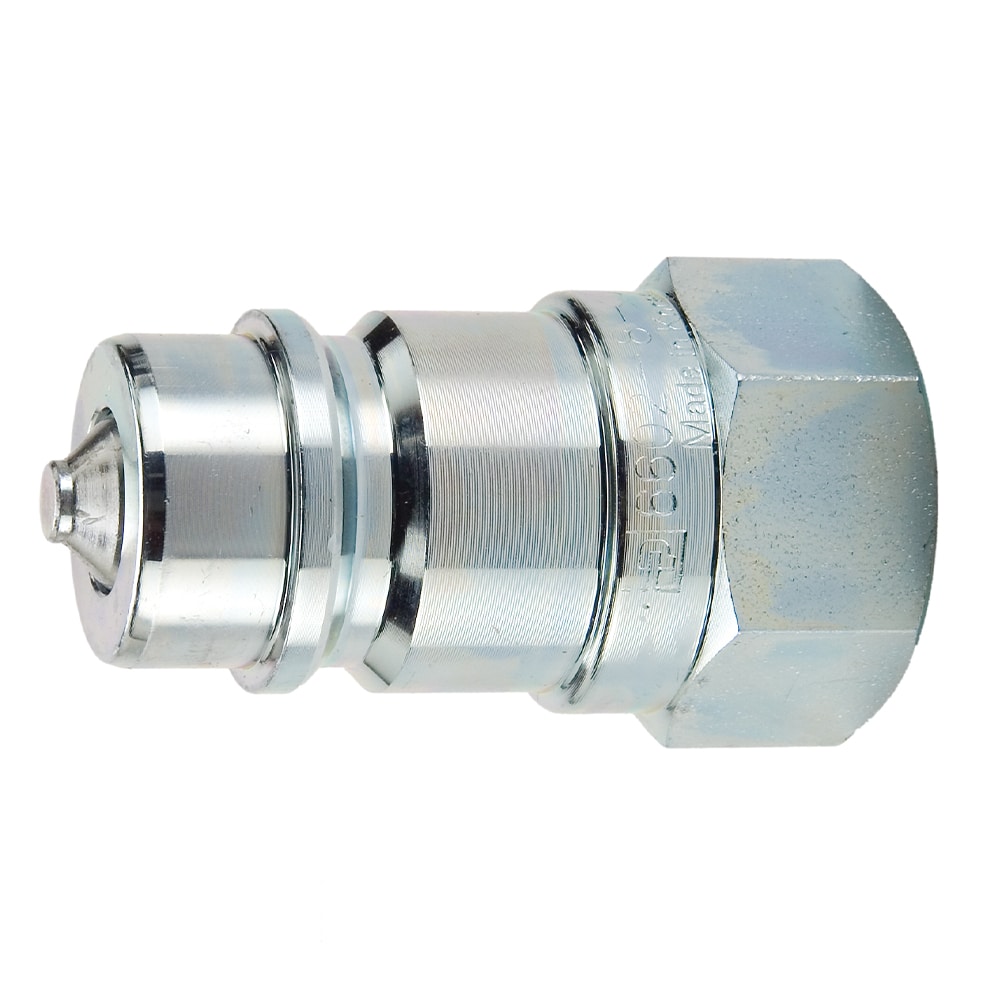

General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Especificaciones técnicas

  • Cumplimiento con especificaciones: ISO 7241-1 Series A
  • Presión de trabajo máxima: 5000.0 psi, 345.0 bar
  • Tipo de intercambio: ISO 7241-1 Series A
  • Temperatura máxima de funcionamiento: 250 °F, 121 °C
  • Aplicación: Hydraulics, General Purpose
  • Temperatura mínima de funcionamiento: -40 °F
  • Tipo de productos: Manual Sleeve
  • Caudal: up to 50 gal/min
  • Tipo de válvula: Poppet
  • Rango de presión de vacío: No
  • Tamaño del cuerpo: 1/4 to 1 inch
  • Material del cuerpo: Steel
  • Tipo de conexión: Female NPTF, Female ORB, Female BSPP
  • Material de la junta: Nitrile
  • Tipo de recubrimiento: Zinc with Clear Trivalent Chromate
Safety Warning

Descripción completa del producto

6600 Series Couplers (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Nipples.
Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.

Technical Characteristics:
• Sizes: 1/4” – 1”
• Materials: Steel
• Port Ends: Female NPTF, Female ORB
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
• Other Coupler options include: Sleeve Lock

Markets:
• Construction
• Mobile equipment
• Agriculture

Features/Benefits:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
• Steel coupler sleeve is hardened for durability
• Optional sleeve lock helps to prevent accidental disconnection

Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments

Documentos relacionados

×
Productos Mitad de acoplamiento Tamaño del cuerpo (pulg) Tipo de conexión Tamaño de la rosca de la conexión (pulg)
6603-6-6 Female Coupler 3/8" Female BSPP 3/8-19
6601-12-10 Female Coupler 1/2" Female NPTF 3/4 - 14
6601-12-12 Female Coupler 3/4" Female NPTF 3/4 - 14
6601-16-16 Female Coupler 1" Female NPTF 1 - 11 1/2
6601-2-4 Female Coupler 1/4" Female NPTF 1/8 - 27
6601-4-4 Female Coupler 1/4" Female NPTF 1/4 - 18
6601-6-6 Female Coupler 3/8" Female NPTF 3/8 - 18
6601-8-10 Female Coupler 1/2" Female NPTF 1/2 - 14
6602-12-10 Male Nipple 1/2 Female NPTF 3/4 - 14
6602-12-12 Male Nipple 3/4 Female NPTF 3/4 - 14
6602-16-16 Male Nipple 1 Female NPTF 1 - 11 1/2
6602-2-4 Male Nipple 1/4 Female NPTF 1/8 - 27
6602-4-4 Male Nipple 1/4 Female NPTF 1/4 - 18
6602-6-6 Male Nipple 3/8 Female NPTF 3/8 - 18
6602-8-10 Male Nipple 1/2 Female NPTF 1/2 - 14
6605-6-6 Male Nipple 3/8 Female BSPP 3/8-19
6608-10-10 Female Coupler 1/2" Female ORB 7/8 - 14
6608-12-10 Female Coupler 1/2" Female ORB 1 1/16 - 12
6608-12-12 Female Coupler 3/4" Female ORB 1 1/16 - 12
6608-16-16 Female Coupler 1" Female ORB 1 5/16 - 12
6608-6-6 Female Coupler 3/8" Female ORB 9/16 - 18
6608-8-10 Female Coupler 1/2" Female ORB 3/4 - 16
6610-10-10 Male Nipple 1/2 Female ORB 7/8 - 14
6610-12-10 Male Nipple 1/2 Female ORB 1 1/16 - 12
6610-12-12 Male Nipple 3/4 Female ORB 1 1/16 - 12
6610-16-16 Male Nipple 1 Female ORB 1 5/16 - 12
6610-6-6 Male Nipple 3/8 Female ORB 9/16 - 18
6610-8-10 Male Nipple 1/2 Female ORB 3/4 - 16
6601-4-4Y Female Coupler 1/4" Female NPTF 1/4 - 18
6601-6-6Y Female Coupler 3/8" Female NPTF 3/8 - 18
6601-8-10Y Female Coupler 1/2" Female NPTF 1/2 - 14
6602-4-4Y Male Nipple 1/4 Female NPTF 1/4 - 18
6602-6-6Y Male Nipple 3/8 Female NPTF 3/8 - 18
