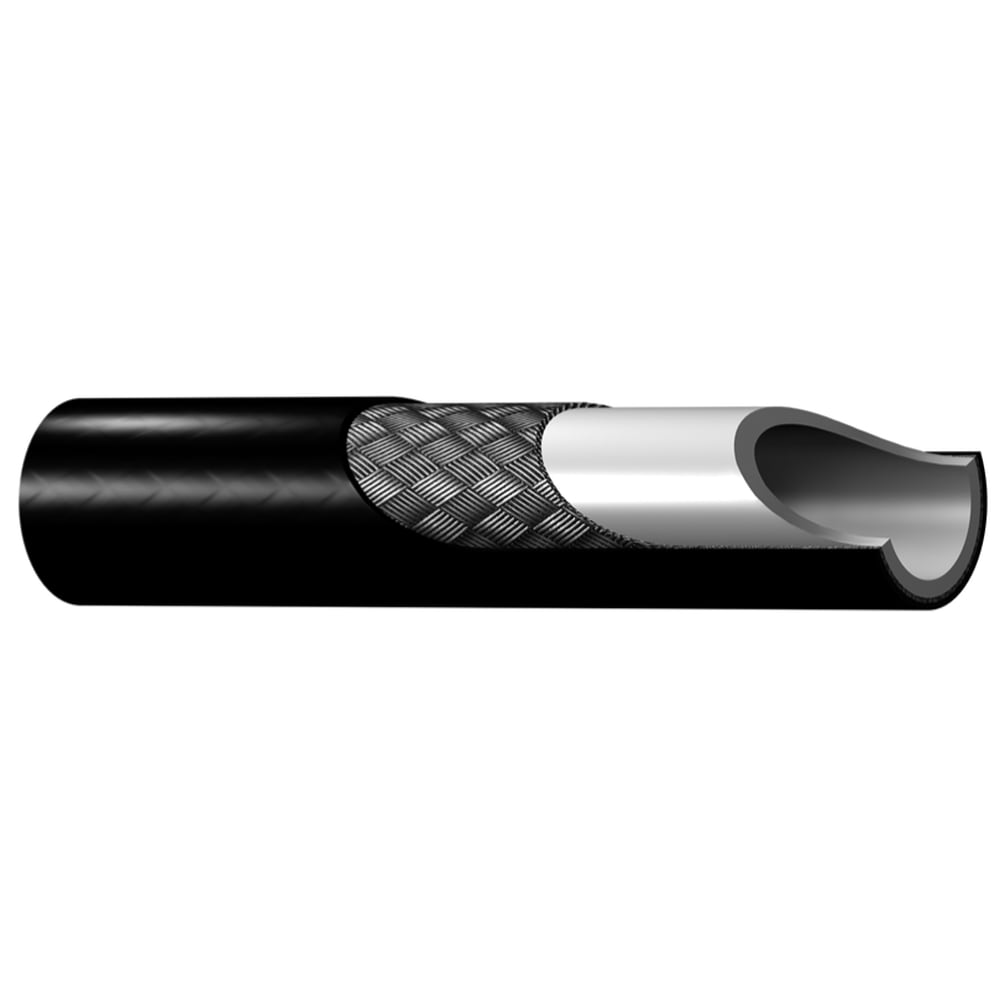

Parker 2040N Hoses are designed to match high demands in hydraulics or media transfer applications. Reliability, versatility and a high degree of customization recommend them ideal for production environments. For working pressure up to 35 MPa.
Parker 2040N Hoses are designed to match high demands in hydraulics or media transfer applications. They offer reliability, versatility and a high degree of customization and are therefore offer the developing engineer a rich choice of solutions, always assured that the long service life and easy installation are ideal for todays demanding production environments. Additionally, long available lengths reduce waste for distribution and assembly production.
Markets:
• Industrial hydraulics
• Mobile
Features/Benefits:
• Excellent chemical resistance due to polyamide core tube and polyamide cover with V30
• Excellent abrasion resistance
• Small bend radii
• Steel wire pressure reinforcement
Applications:
• High pressure service for general industrial and mobile hydraulic applications
• For improved chemical resistance is required with some hydraulic and chemical fluids
• Flexible connections between CO2 gas cylinder regulators and manifolds in CO2 fire extinguishing systems and for mobile or fixed CO2 fire extinguishers
• For working pressure up to 35 MPa (5.075 psi)
Technical Specifications:
• Core tube: Polyamide
• Pressure reinforcement: One braided layer of high tensile steel wire
• Cover: V00: polyurethane / V30: polyamide
• Colour: black
• Temperature range: -40°C up to +100°C for petroleum or synthetic hydraulic fluids, Pinpricked –40 °C up to +80 °C
Notes:
• For pinpricked hose please add “-P”, e.g. 2040N-02V00-P
• In version V00 also available as twinline or multiline hose
| Literature and Reference Materials |
|---|
| Parker Thermoplastic Hoses for Hydraulic and Industry Catalog_4460_UK--(English) |
| Selector Guides |
|---|
| Crimpsource Online --(English) |
| Products | Maximum Working Pressure (MPa) | Compatible Fitting | Hose Type | Color |
|---|---|---|---|---|
| 2040N-02V00 | 35 | 56 Series | black | |
| 2040N-03V00 | 34 | 57 Series | black | |
| 2040N-04V00 | 31 | 60 Series | black | |
| 2040N-05V00 | 25 | 65 Series | black | |
| 2040N-06V00 | 24 | 68 Series | black | |
| 2040N-08V00 | 18.5 | 71 Series | black | |
| 2040N-10V00 | 14 | 74 Series | black | |
| 2040N-12V00 | 12.5 | 76 Series | black | |
| 2040N-16V00 | 10 | 78 Series | black | |
| 2040N-03V30 | 37.5 | 59 Series | black | |
| 2040N-04V30 | 31 | 62 Series | black | |
| 2040N-05V30 | 25 | 67 Series | black | |
| 2040N-06V30 | 24 | 70 Series | black | |
| 2040N-08V30 | 19.5 | 73 Series | black | |
| 2040N-03V00-P | 34 | 58 Series | Pinpricked | black |
| 2040N-04V00-P | 31 | 61 Series | Pinpricked | black |
| 2040N-05V00-P | 25 | 66 Series | Pinpricked | black |
| 2040N-06V00-P | 24 | 69 Series | Pinpricked | black |
| 2040N-08V00-P | 18.5 | 72 Series | Pinpricked | black |
| 2040N-10V00-P | 14 | 75 Series | Pinpricked | black |
| 2040N-12V00-P | 12.5 | 77 Series | Pinpricked | black |
| 2040N-16V00-P | 10 | 79 Series | Pinpricked | black |
| 2040N-04V74-P | 25 | 63 Series | Pinpricked | black |
| 2040N-04V78-P | 25 | 64 Series | Pinpricked | grey |
| 2040N-03V02 | 34 | 83 Series | blue | |
| 2040N-03V22 | 34 | 80 Series | blue | |
| 2040N-04V02 | 31 | 82 Series | blue | |
| 2040N-04V22 | 31 | 81 Series | blue | |
| 2040N-04V80 | 10 | 84 Series | black | |
| 2040N-06V02 | 24 | 85 Series | blue |
