ISO 16028 HTMA无溢流、平齐端面液压快换接头 - FEM和FEC系列

购买地点

派克无溢流平齐端面液压快换，是流体管路需要快速简便断开或连接的各种应用的理想选择。这些快换接头旨在更大限度地减少溢流和夹气。

技术规格：

  • 交换式： ISO 16028, HTMA
  • 最大运行压力： 5000.0 psi, 345.0 bar
  • 符合规格： ISO 16028, HTMA
  • 最高运行温度： 250 °F, 121 °C
  • 应用： Hydraulics, Non-spill, Connect Under Pressure
  • 最低运行温度： -40 °F
  • 产品类型： Push to Connect
  • 流速： up to 50 gal/min
  • 阀门类型： Non-spill, Connect Under Pressure
  • 真空额定压力： No
  • 主体尺寸： 1/4 to 1 inch
  • 阀体材料： Steel
  • 连接类型： Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
  • 密封材料： Nitrile, Polyurethane/Nitrile
  • 镀层类型： Zinc Nickel (3/8", 1/2", 3/4"), Zinc w/ clear trivalent chromate (1/4", 5/8", 1")

完整的产品说明

FEM和FEC系列阳接头（液压）的压力高达4568 psi，可与FEM系列阴接头连接。FEM和FEC系列产品均达到或超过液压工具制造商协会（HTMA - ISO 16028）标准的设计和性能要求。FEC阳接头设计用于在流体管线包含热膨胀引起的残余压力的情况下进行带压连接。


派克FEM系列是双截止、无溢流平齐端面快换接头，设计用于在连接或断开时更大限度地减少溢流和夹气，可与其他符合HTMA - ISO 16028的产品互换。FEM系列快换接头有多种尺寸及内、外螺纹可供选择，适用于压力高达4568 psi的应用。


技术参数：

• FEM规格：1/4” – 1”

• FEC（带压连接）规格：1/2"、5/8"、3/4"

• 材质：钢

• 油口端：NPSF内螺纹、ORB内螺纹、隔板式扩口接头、隔板式平面密封接头

• 密封选项：丁腈橡胶/聚氨酯、乙丙橡胶、氟橡胶


市场：

• 工业

• 建筑

• 市政

• 农业


特点/优势：

• 每种规格均可与其他符合HTMA（ISO 16028）标准的产品互换

• 无溢流平齐端面阀芯可更大限度地减少断开时的流体损失，降低了环境污染，解除因溢流造成的安全隐患。

• 在连接流体管线时，平齐端面阀芯可更大限度地减少了进入系统的夹气量，以免系统组件的加速磨损。

• 适用于面板或隔板安装选项的隔板式末端

• FEC阳接头可在热膨胀引起的残余压力下进行连接。

• 可选的套管锁可免于意外断开


应用：

• 滑移式装载机属具

• 液压工具

• 建筑机械属具

• 工业液压管路

• 农具

• 冷却液加注和排放管路 - 请联系派克，了解美国卡车运输协会技术和维护委员会（TMC 353 实践推荐）推荐使用的黄铜FEM型排放口阳接头

相关文档（前身为“产品支持”）

Literature and Reference Materials
FEM Series ISO 16028 Non-spill Quick Couplings
Catalog 3800 Quick Coupling Products
FEM Hydraulic Quick Couplings Bulletin
FEM Series - Redesigned with Enhanced Features
Fluid Compatibility Chart
How To Operate Push To Connect Hydraulic Couplings
FEM Series Bulletin - Construction
Compliance, Certifications & Safety
Safety Guide: Quick Couplings and Related Accessories
Communities, Blogs & Industry Links
Five Advantages of Quick Connect Fittings
×
查看目录
分享/通过电子邮件发送
打印
产品 半联轴器 最大运行压力 阀门类型 阀体尺寸（英寸） 连接类型 连接螺纹尺寸（英寸）
FEC-502-10FO Male Nipple 3625 Non-Spill, Connect under pressure 1/2 Female UNF 7/8 - 14
FEC-502-12FO Male Nipple 3625 Non-Spill, Connect under pressure 1/2 Female UNF 1 1/16 - 12
FEC-502-8FP Male Nipple 3625 Non-Spill, Connect under pressure 1/2 Female NPTF 1/2 - 14
FEC-622-12FO Male Nipple 3625 Non-Spill, Connect under pressure 5/8 Female UNF 1 1/16 - 12
FEC-752-12FO Male Nipple 5000 Non-Spill, Connect under pressure 3/4 Female UNF 1 1/16 - 12
FEM-1001-16FO-NL Female Coupler 2900 Non-spill 1 Female UNF 1 5/16 - 12
FEM-1001-16FP-NL Female Coupler 2900 Non-spill 1 Female NPSF 1 - 11 1/2
FEM-1002-16FO Male Nipple 2900 Non-spill 1 Female NPTF 1 5/16 - 12
FEM-1002-16FP Male Nipple 2900 Non-spill 1 Female NPTF 1 - 11 1/2
FEM-251-4FP-NL Female Coupler 4568 Non-spill 1/4 Female NPSF 1/4 - 18
FEM-251-6FO-NL Female Coupler 4568 Non-spill 1/4 Female UNF 9/16 - 18
FEM-252-4FP Male Nipple 4568 Non-spill 1/4 Female NPSF 1/4 - 18
FEM-252-6FO Male Nipple 4568 Non-spill 1/4 Female UN 9/16 - 18
FEM-371-6FP Female Coupler 5000 Non-spill 3/8 Female NPSF 3/8 - 18
FEM-371-8FO Female Coupler 5000 Non-spill 3/8 Female UNF 3/4 - 16
FEM-372-6FP Male Nipple 5000 Non-spill 3/8 Female NPSF 3/8 - 18
FEM-372-8FO Male Nipple 5000 Non-spill 3/8 Female UN 3/4 - 16
FEM-501-10BMF Female Coupler 5000 Non-spill 1/2 Male bulkhead flare 7/8 - 14
FEM-501-10BMS Female Coupler 5000 Non-spill 1/2 Male bulkhead face seal 1 - 14
FEM-501-10FO Female Coupler 5000 Non-spill 1/2 Female UNF 7/8 - 14
FEM-501-12FO Female Coupler 5000 Non-spill 1/2 Female UNF 1 1/16 - 12
FEM-501-8FO Female Coupler 5000 Non-spill 1/2 Female UNF 3/4 - 16
FEM-501-8FP Female Coupler 5000 Non-spill 1/2 Female NPSF 1/2 - 14
FEM-502-10BMF Male Nipple 5000 Non-spill 1/2 Male bulkhead flare 7/8 - 14
FEM-502-10BMS Male Nipple 5000 Non-spill 1/2 Male Bulkhead Face Seal 1 - 14
FEM-502-10FO Male Nipple 5000 Non-spill 1/2 Female NPSF 7/8 - 14
FEM-502-12FO Male Nipple 5000 Non-spill 1/2 Female UNF 1 1/16 - 12
FEM-502-8FO Male Nipple 5000 Non-spill 1/2 Female UNS 3/4 - 16
FEM-502-8FP Male Nipple 5000 Non-spill 1/2 Female NPTF 1/2 - 14
FEM-621-12FO-NL Female Coupler 3625 Non-spill 5/8 Female UNF 1 1/16 - 12
FEM-622-12FO Male Nipple 3625 Non-spill 5/8 Female UNF 1 1/16 - 12
FEM-752-12FO Male Nipple 5000 Non-spill 3/4 Female UNF 1 1/16 - 12
FEM-752-12FP Male Nipple 5000 Non-spill 3/4 Female NPTF 3/4 - 14
FEM-372-8BMF Male Nipple 5000 Non-spill 3/8 Male Bulkhead Flare 3/4 - 16 UNF
FEM-502-12BMF Male Nipple 5000 Non-spill 1/2 Male Bulkhead Flare 1 - 1/16 -12
FEM-502-12FP Male Nipple 5000 Non-spill 1/2 Female NPTF 3/4-14
FEM-621-16BMF-NL Female Coupler 5000 Non-spill 5/8 Male bulkhead flare 1 5/16-12 UN
FEM-622-16BMF Male Nipple 5000 Non-spill 5/8 Male bulkhead flare 1 5/16-12 UN
FEM-371-6FB Female Coupler 5000 Non-spill 3/8 Female BSPP 3/8 - 19
FEM-371-8FB Female Coupler 5000 Non-spill 3/8 Female BSPP G1/2
FEM-371-8FP Female Coupler 5000 Non-spill 3/8 Female NPTF 1/2 - 14
FEM-372-6FB Male Nipple 5000 Non-spill 3/8 Female BSPP 3/8 - 19
FEM-372-8FB Male Nipple 5000 Non-spill 3/8 Female BSPP G1/2
FEM-372-8FP Male Nipple 5000 Non-spill 3/8 Female NPTF 1/2 - 14
FEM-751-12FO Female Coupler 5000 Non-spill 3/4 Female UNF 1 1/16 - 12
FEM-751-12FP Female Coupler 5000 Non-spill 3/4 Female NPSF 3/4 - 14
FEM-371-6MO Female Coupler 5000 Non-spill 3/8 Male UNF 9/16 - 18
FEM-501-12FP Female Coupler 5000 Non-spill 1/2 Female NPTF 3/4 - 14
FEM-371-10FO-QCD Female Coupler 5000 Non-spill 3/8 Female UNF 7/8 - 14
FEM-371-10MF Female Coupler 5000 Non-spill 3/8 Male Flare 7/8 - 14
FEM-371-16BMCL Female Coupler 5000 Non-spill 3/8 Male Bulkhead Metric M16-1.5
FEM-371-18BMCL-QCD Female Coupler 5000 Non-spill 3/8 Male Bulkhead Metric M18-1.5
FEM-371-6FO Female Coupler 5000 Non-spill 3/8 Female UNF 9/16- 18
FEM-371-8BMF-QCD Female Coupler 5000 Non-spill 3/8 Male Bulkhead Flare 3/4- 16
FEM-371-8MF Female Coupler 5000 Non-spill 3/8 Male Flare 3/4- 16
FEM-371-8MO Female Coupler 5000 Non-spill 3/8 Male UNF 3/4- 16
FEM-372-10FO-QCD Male Nipple 5000 Non-spill 3/8 Female UNF 7/8 - 14
FEM-372-10MF Male Nipple 5000 Non-spill 3/8 Male UNF 7/8 - 14
FEM-372-16BMCL Male Nipple 5000 Non-spill 3/8 Male Bulkhead Metric M16-1.5
FEM-372-6FO Male Nipple 5000 Non-spill 3/8 Female UNF 9/16- 18
FEM-372-6MF Male Nipple 5000 Non-spill 3/8 Male Flare 9/16- 18
FEM-372-6MO Male Nipple 5000 Non-spill 3/8 Male UNF 9/16- 18
FEM-372-8MO Male Nipple 5000 Non-spill 3/8 Male UNF 3/4- 16
FEM-501-12BMF Female Coupler 5000 Non-spill 1/2 Male Bulkhead Flare 1 - 1/16 -12
FEM-501-12BMS Female Coupler 5000 Non-spill 1/2 Male Bulkhead Face Seal 1 3/16- 12
FEM-501-12FB-QCD Female Coupler 5000 Non-spill 1/2 Female BSPP G 3/4 BSPP
FEM-501-8BMF Female Coupler 5000 Non-spill 1/2 Male Bulkhead Flare 3/4- 16
FEM-501-8BMS Female Coupler 5000 Non-spill 1/2 Male Bulkhead Face Seal 13/16- 16
FEM-501-8FB-QCD Female Coupler 5000 Non-spill 1/2 Female BSPP G 1/2 BSPP

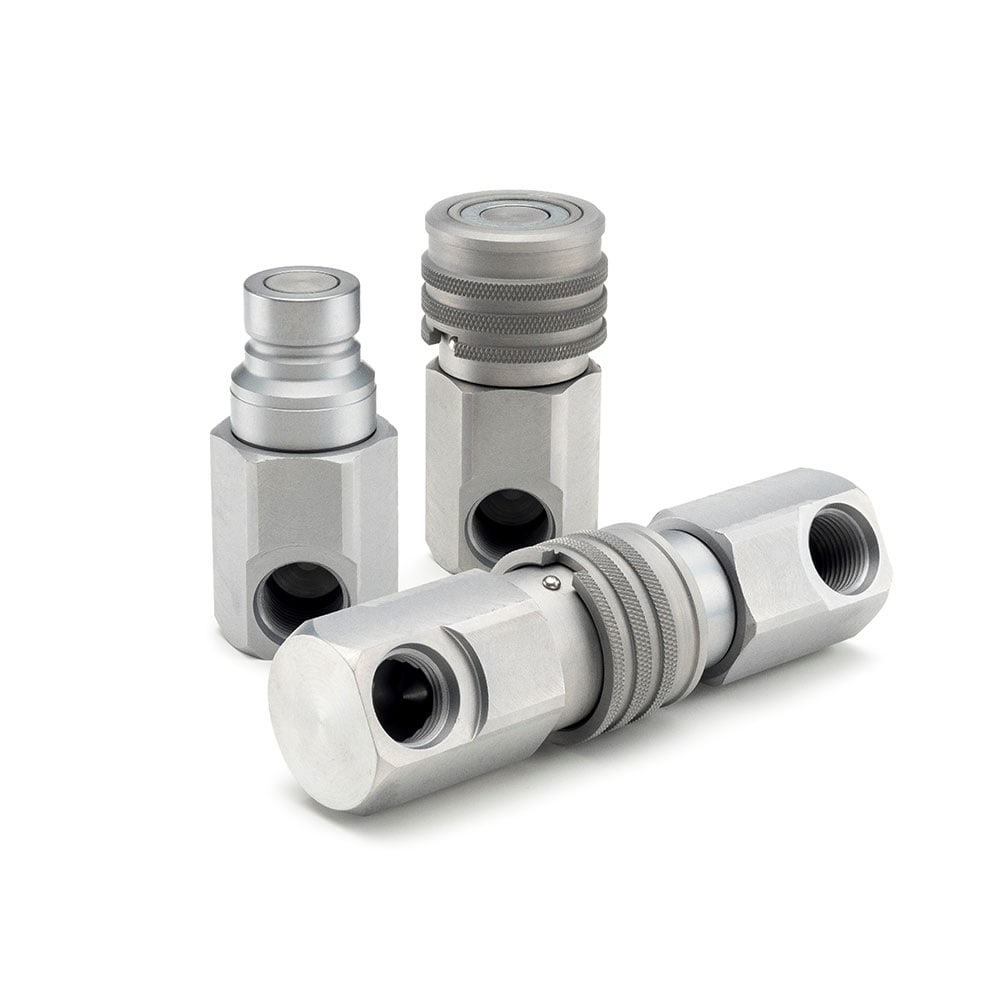

FEM-501-C6FO Female Coupler 5000 Non-spill 1/2 90 Degree Female UNF 9/16- 18
FEM-501-C6FP Female Coupler 5000 Non-spill 1/2 90 Degree Female NPTF 3/8- 18
FEM-501-C8FO Female Coupler 5000 Non-spill 1/2 90 Degree Female UNF 3/4- 16
FEM-501-C8FP Female Coupler 5000 Non-spill 1/2 90 Degree Female NPTF 1/2- 14
FEM-502-12BMS Male Nipple 5000 Non-spill 1/2 Male Bulkhead Face Seal 1 3/16- 12
FEM-502-12FB-QCD Male Nipple 5000 Non-spill 1/2 Female BSPP G 3/4 BSPP
FEM-502-8BMF Male Nipple 5000 Non-spill 1/2 Male Bulkhead Flare 3/4- 16
FEM-502-8BMS Male Nipple 5000 Non-spill 1/2 Male Bulkhead Face Seal 3/4- 16
FEM-502-8FB-QCD Male Nipple 5000 Non-spill 1/2 Female BSPP G 1/2 BSPP
FEM-502-C6FO Male Nipple 5000 Non-spill 1/2 90 Degree Female UNF 9/16- 18
FEM-502-C6FP Male Nipple 5000 Non-spill 1/2 90 Degree Female NPTF 3/8- 18
FEM-502-C8FO Male Nipple 5000 Non-spill 1/2 90 Degree Female UNF 3/4- 16
