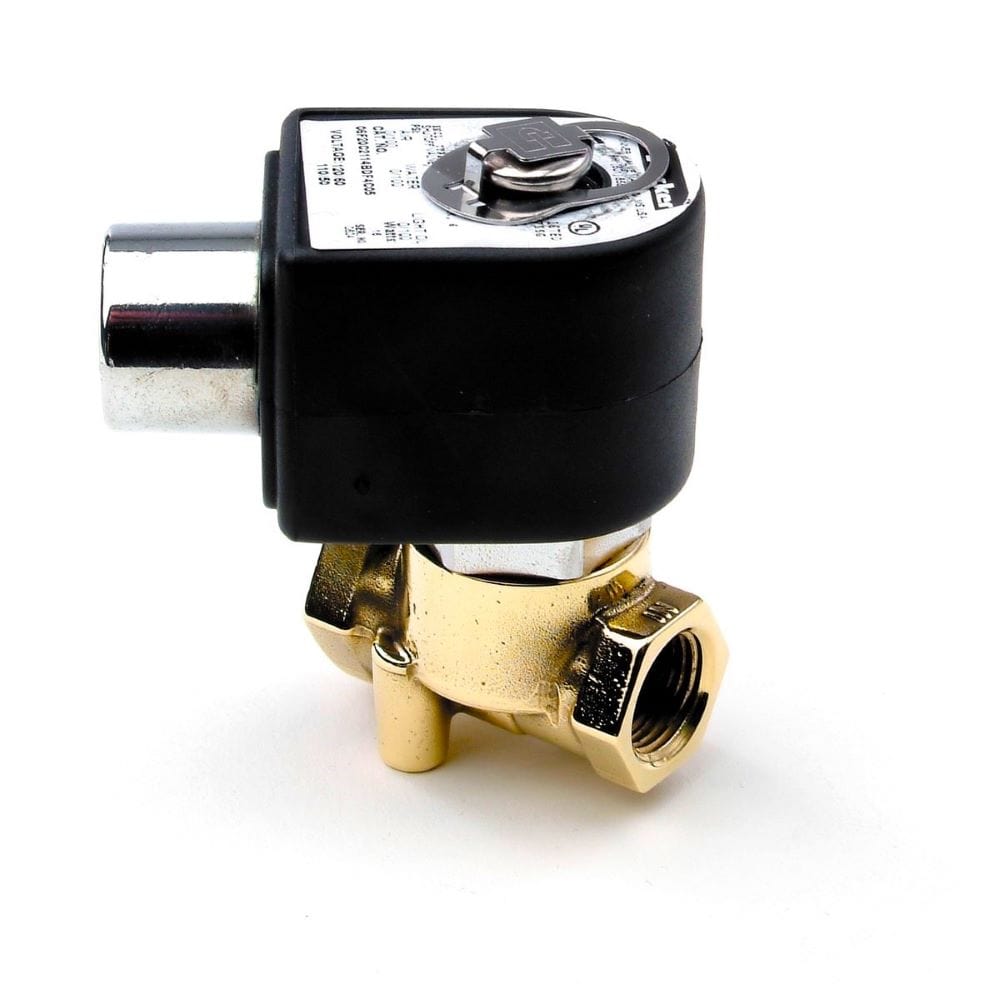

Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves | #04F25C2122CAF4C15

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.


Technical Specifications

  • Body Material: Brass
  • Flow Factor 1 (Cv): 1.2
  • Coil Type: 1/2" Conduit, 18" Leads
  • Voltage (V): 220/50-240/60
  • Orifice 1 Size (inch): 11/32
  • Power (Watts): 6 Watts (AC)
  • Seal Material: NBR
  • Product Series: Gold Ring
  • Valve Type: 2-Way
  • Function: Normally Closed (NC)
  • Port Size: 1/4 inch
  • Input Voltage: 220/50 to 240/60
  • Body Material: Brass
  • Seal Material: NBR
  • Orifice 1 Size: 11/32 inch
  • Flow Coefficient 1: 1.2 Cv
  • Power Consumption: 6 W (AC)
  • Coil Type: 1/2" Conduit, 18" Leads
  • Maximum Pressure Differential: 300 psi (AC)
  • Number of Ports: 2
  • Actuation Type: Diaphragm, Pivoted Edge
  • Media: General Purpose for Air, Liquids and Gases
  • Port Type: NPT
  • Orifice 2 Size: n/a
  • Flow Coefficient 2: n/a
  • Minimum Pressure Differential: 3 psi
  • Minimum Fluid Temperature: 0 °F
  • Maximum Fluid Temperature: 180 °F
  • Coil Specifications Met: NEMA 4X
Safety Warning

Item Information

Parker's 2-Way Normally Closed 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in stainless steel and brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
