Fuel Dispensing hose meets BS EN 1360. Series – BSPHPM

Fuel Dispensing hose meets BS EN 1360. Series – BSPHPM

BSPHPM Fuel dispensing hose is made per the specification BSEN 1360 type 3, 2013. The hose is made for dispensing fuels like Petrol, Gasolene, Diesel.

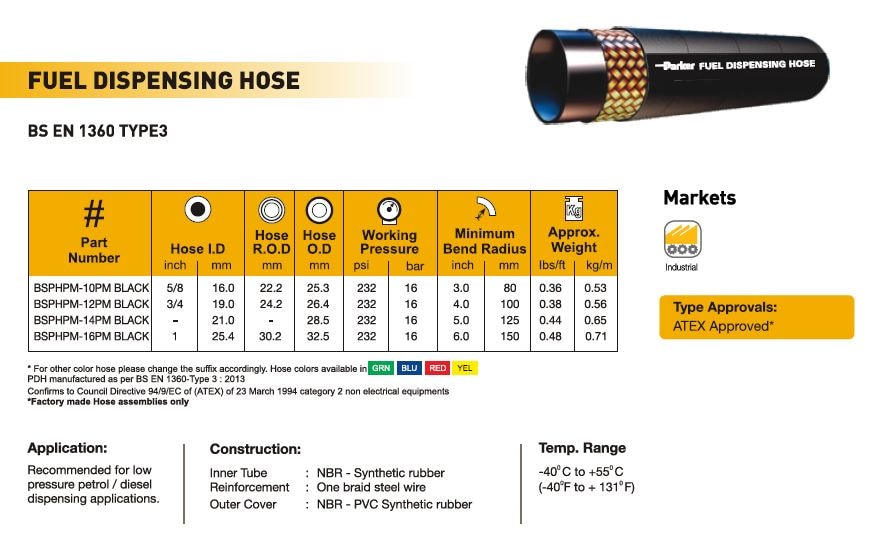

Technical Specifications

  • Hose Inner Tube Material: Synthetic Rubber
  • Cover Material: Synthetic Rubber
  • Application: Fuel Transfer, Diesel Dispensing, Petrol/Gasoline
  • Weight: 0.53 to 0.71 kg/m, 0.36 to 0.48 lb/ft, 0.53 to 0.71
  • Maximum Operating Pressure: 1.6 MPa, 16 bar, 232 psi
  • Minimum Operating Temperature: -40 °C, -40 °F
  • Maximum Operating Temperature: 55 °C, 131 °F
  • Minimum Bend Radius: 3 to 6 inch, 80 to 150 mm
  • Media: Fuels (Diesel, Gasoline) - Check fuel type with our catalogue chart.., Fuels - Check fuel type with our catalogue chart.
  • Specifications Met: BS EN 1360, Type 3
  • Inside Diameter: 5/8 to 1 inch, 16.0 to 25.4 mm
  • Hose Reinforcement Material: 1 Braid of Wire
  • Outside Diameter: 0.99 to 1.28 inch, 25.3 to 32.5 mm
  • Size: -10 to -16
Safety Warning

Full Product Description

BSPHPM Fuel dispensing hose is made as per the specification BSEN 1360 type 3 2013. The industry standard hose manufactured to strict international quality specifications in order to provide consistency of performance. It offers a long service life. The hose confirms to Council Directive 94/9/EC of (ATEX) Catergory 2 non electrical equipments and is available in Blue, Red, Green, Black.

Markets:
•Industrial

Features/Benefits:
• A light weight compact design.
• Tube suitable to various types of fuels like petrol, diesel, gasoline.
• Abrasion & Ozone resistant.
• Easy to handle.
• Used in most of the kerb pumps, fuel filling stations.

Applications:
• For dispensing fuels like Petrol, Gasolene, Diesel at filling stations.

Suitable fuels:
• Petrol diesel.
• Gasolene.

Related Documents

×
Products Hose I.D. (inch)
BSPHPM-10PM 5/8
BSPHPM-12PM 3/4
BSPHPM-14PM 7/8
BSPHPM-16PM 1
