HITECHPM-40PM - Hitech - Hydraulic hose | Parker NA

Hitech - Hydraulic hose | #HITECHPM-40PM

HITECHPM-40PM

Hitech - Hydraulic hose | #HITECHPM-40PM

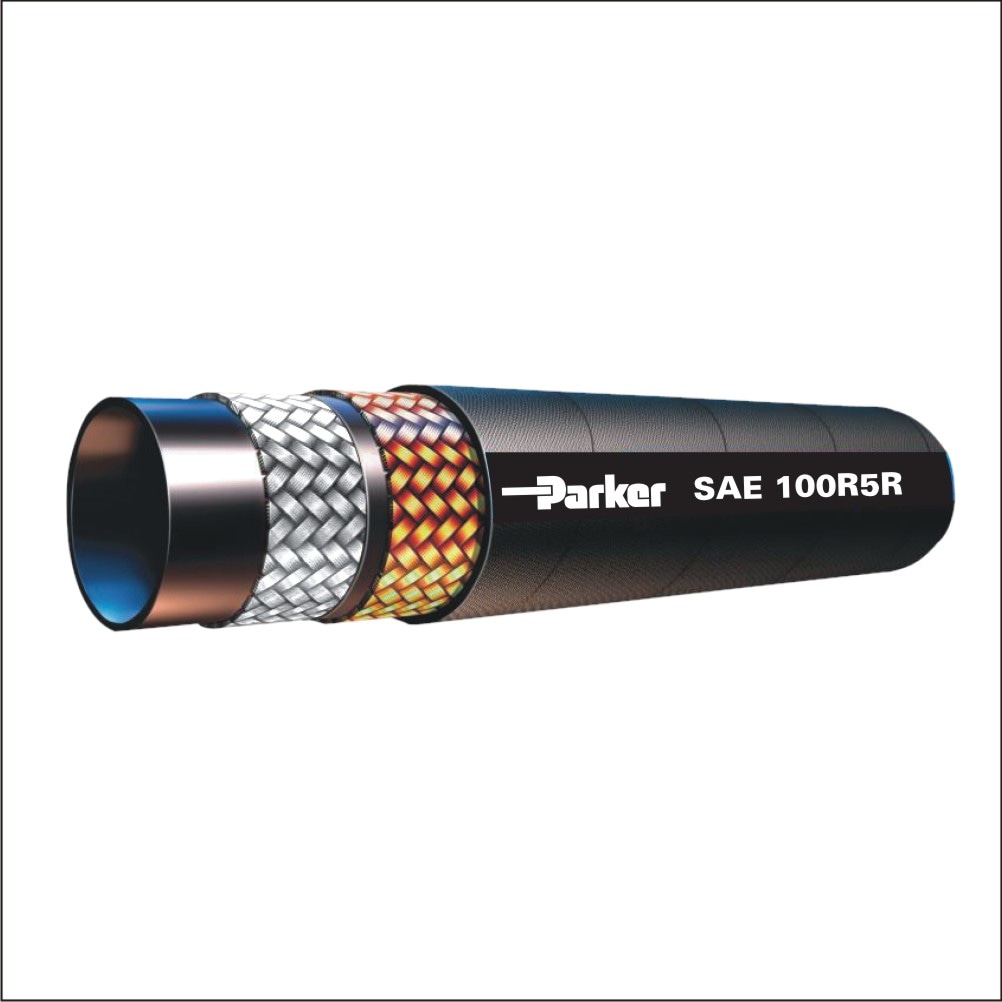

Hitech hose is Parker propreitary design hose to meet the industry requirement, made with one wire construction with black colour textile braid cover.


Technical Specifications

  • Hose I.D. (mm): 63.5
  • Weight: n/a
  • Maximum Operating Temperature: 150 °C
  • Minimum Operating Temperature: -40 °C
  • Media: Petroleum Hydraulic Fluids (Oil)
  • Specifications Met: Parker Specifications
  • Inside Diameter: 2-1/2 inch
  • Outside Diameter: 75.4 mm
  • Application: Compressed Air, Hydraulics
  • Maximum Operating Pressure: 500 psi
  • Minimum Bend Radius: 560 mm
Safety Warning

Item Information

Hitech hose is Parker properietary design to meet the industry requirement & international quality in order to provide consistency of performance. Universal one-wire construction to meet global industry standards. It’s a one wire braid hose with CPE tube and the safety factor 4:1.With the excellent quality and flexibility, it offers a long service life and a wide range of fluid compatibility to meet the requirements.

Markets:
•General Industrial
•Machine tool
•Utility & Construction

Features/Benefits:
•The hose cover is textile braid black colour.
•The temperature range is from -40 deg C to 150 deg C.
•Can be used in all conditions with ease.

Applications:
•Hot oil lines, rotary oil / air compressor lines.
•Construction & general industrial applications.

Read More Show Less
