MH174PM-16PM - Mining hydraulic hose meets BCS 174: 1992 Series – MH 174 | Parker NA

Mining hydraulic hose meets BCS 174: 1992 Series – MH 174 | #MH174PM-16PM

MH174PM-16PM

Mining hydraulic hose meets BCS 174: 1992 Series – MH 174 | #MH174PM-16PM

MH174 hose is made for the mining market including Underground mining applications. The hose is with flame resistant cover.


Technical Specifications

  • Hose I.D. (mm): 25.4
  • Application: Hydraulics
  • Weight: 1.71 kg/m
  • Maximum Operating Temperature: 100 °C
  • Minimum Operating Temperature: -40 °C
  • Media: Petroleum Hydraulic Fluids
  • Specifications Met: BCS 174:1992
  • Inside Diameter: 1 inch
  • Outside Diameter: 40.7 mm
  • Maximum Operating Pressure: 3120 psi
  • Minimum Bend Radius: 300 mm
Safety Warning

Item Information

MH174 hose hose is made as per the specification British Coal 174:1992. The mining industry standard hose manufactured to strict international quality specifications in order to provide consistency of performance.It offers a long service life and a wide range of fluid compatibility. It’s for the medium to high pressure application in hydraulic lines.

Markets:
•Mining both underground and open cast.
•Construction & material handling.

Features/Benefits:
•Its cover is flame resistant.
•Its cover is abrasion resistant.

Applications:
•High pressure hydraulic oil lines.
•Underground mining equipments like underground articulated trucks.

Read More Show Less

CAD Drawings + Files

No CAD files available

Ok

x

Related Documents

Literature and Reference Materials

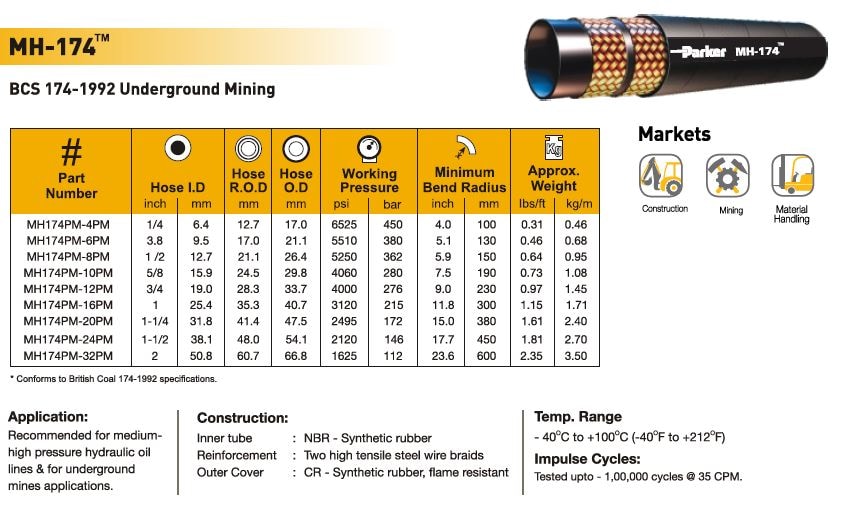

MH-174 Attributes
