Covers for 2-Way Slip-In Cartridge Valves - Series C*B / C*H

Puntos de venta

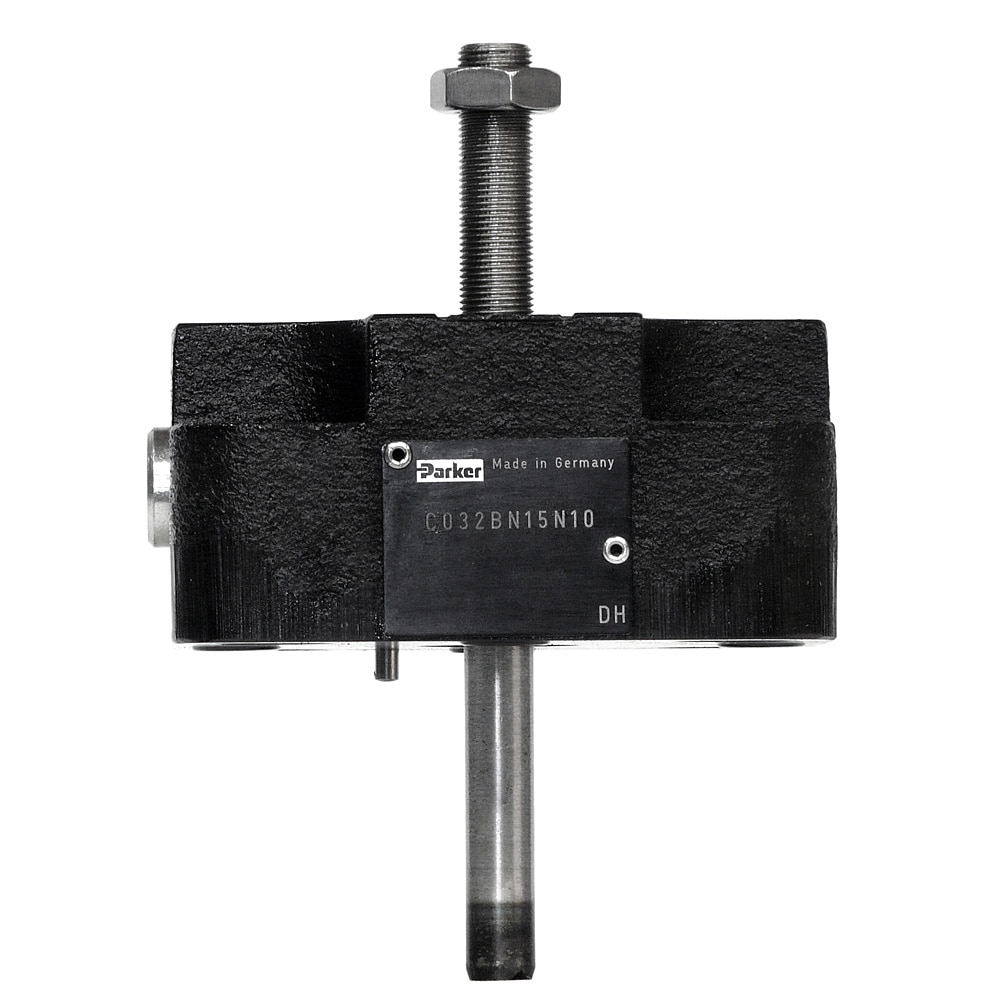

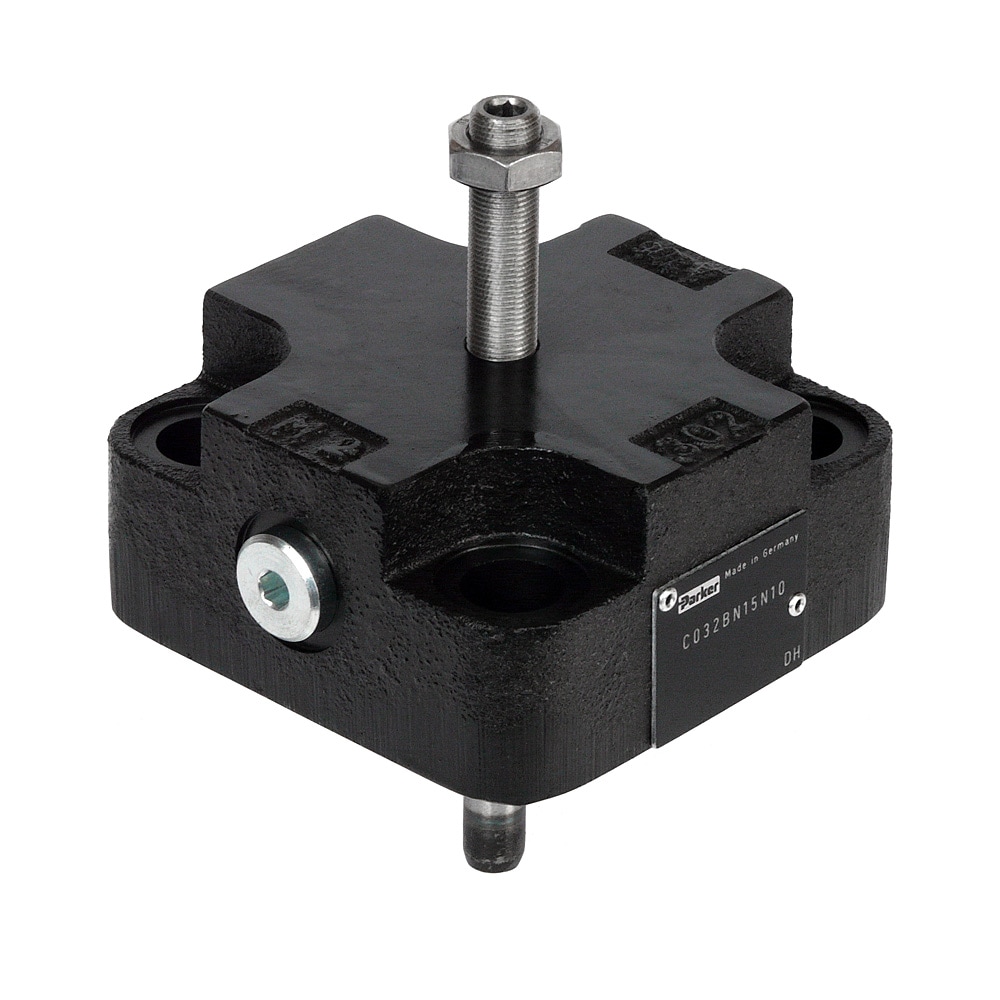

Parker's cover with stroke limiter series C*B and C*H are universally applicable for compact manifold block installation and available in many different sizes.

Especificaciones técnicas

  • Cubierta: With X-connection and stroke limiter, With stroke limiter and DC mounting pattern
  • Mecanismo de ajuste: Screw/spindle, Screws with lock nut
  • Tipo de montaje: Slip-in cartridge
  • Tipo de accionamiento: Hydraulically
  • Serie del producto: Seat valve
  • Peso: 0.9 - 15.1 (depending on size) kg
  • Índice de caudal máximo: N/A L/min
  • Presión de trabajo máxima: 350 (depending on pilot valve) bar
  • Temperatura máxima de funcionamiento: 60 °C
  • Temperatura mínima de funcionamiento: -20 °C
  • Configuración: Cover with mounting pattern for pilot valve assembly
  • Caudal: 230 to 3600 L/min ( depending on combined cartridge poppet)
  • Para tipo de fluido: Hydraulic oil according to DIN 51524
  • Función: 2-Way
  • Tipo de operación: N/A
  • Material del cuerpo: Steel
  • Material de la junta: NBR, FPM

chemicalComposition California Residents: Prop-65 Warning

Safety Warning

Descripción completa del producto

The cover with X-connection and stroke limiter series C*B and the cover with stroke limiter and DC mounting pattern series C*H for 2-way slip-in cartridge valves are universally applicable and ensure a reliable operation.

2-way slip-in cartridge valves are hydraulically controlled seat valves that are designed for compact block installation. Slip-in cartridge, cover and pilot system are components of Parker's modular DIN cartridge system which permits single and combined functions.

Markets:
• Industrial
• Molding
• Oil & Gas

Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics - increases reliability
• Comprehensive range - allow maximum flexibility for single and combined functions
• 6 different sizes from NG16 to NG63 - suitable for almost every application
• Short delivery time - no warehousing necessary

Applications:
• Suitable for general hydraulic applications
• General presses
• Die cast
• Injection molding

Note: C*H for 2-way slip-in cartridge valves is not longer available from Parker, please refer to the recommended products for a replacement.

Documentos relacionados

Compliance, Certifications & Safety
CERTIFICATE - DIN ISO 9001:2015 Certificate ISDE
CERTIFICATE - Position Paper ISDE 2006/42/EC and EN ISO 13849
Literature and Reference Materials
CATALOGUE - Hydraulic Valves Industrial Standard, Offline Version--MSG11-3500/UK
CATALOGUE - Hydraulic Valves Industrial Standard, Online Version--MSG11-3500/UK
2-Way Slip-In Cartridge Valves Series CE, CP, C, Catalogue--MSG11-3500UK
Slip-In Cartridge Valve Catalog - C*B (North America)
×
Ver catálogos
compartir / correo electrónico
Imprimir
Productos Cubierta Tipo de ajuste Conexión del puerto Tamaño del orificio 1 Tamaño del orificio 2 Tamaño del orificio 3 Tamaño del orificio 4 Material de la junta
C040BN13N With X-connection and stroke limiter Screw/spindle NG40 1.3 mm na na na NBR
C040BN16N With X-connection and stroke limiter Screw/spindle NG40 1.6 mm na na na NBR
C063BN10V With X-connection and stroke limiter Screw/spindle NG63 1.0 mm na na na FPM
C016BN09N With X-connection and stroke limiter Screw/spindle NG16 0.9 mm na na na NBR
C050BN16N With X-connection and stroke limiter Screw/spindle NG50 1.6 mm na na na NBR
C032BN16N With X-connection and stroke limiter Screw/spindle NG32 1.6 mm na na na NBR
C025BN11N With X-connection and stroke limiter Screw/spindle NG25 1.1 mm na na na NBR
C040BN14N With X-connection and stroke limiter Screw/spindle NG40 1.4 mm na na na NBR
C032BN10V With X-connection and stroke limiter Screw/spindle NG32 1.0 mm na na na FPM
C050BN18V With X-connection and stroke limiter Screw/spindle NG50 1.8 mm na na na FPM
C016BN00N With X-connection and stroke limiter Screw/spindle NG16 Plug na na na NBR
C016BN06N With X-connection and stroke limiter Screw/spindle NG16 0.6 mm na na na NBR
C016BN08N With X-connection and stroke limiter Screw/spindle NG16 0.8 mm na na na NBR
C016BN08V With X-connection and stroke limiter Screw/spindle NG16 0.8 mm na na na FPM
C016BN09V With X-connection and stroke limiter Screw/spindle NG16 0.9 mm na na na FPM
C016BN10N With X-connection and stroke limiter Screw/spindle NG16 1.0 mm na na na NBR
C016BN10V With X-connection and stroke limiter Screw/spindle NG16 1.0 mm na na na FPM
C016BN12N With X-connection and stroke limiter Screw/spindle NG16 1.2 mm na na na NBR
C016BN13N With X-connection and stroke limiter Screw/spindle NG16 1.3 mm na na na NBR
C016BN15N With X-connection and stroke limiter Screw/spindle NG16 1.5 mm na na na NBR
C016BN20N With X-connection and stroke limiter Screw/spindle NG16 2.0 mm na na na NBR
C016BN99N With X-connection and stroke limiter Screw/spindle NG16 Open na na na NBR
C016BN99V With X-connection and stroke limiter Screw/spindle NG16 Open na na na FPM
C025BN00N With X-connection and stroke limiter Screw/spindle NG25 Plug na na na NBR
C025BN08N With X-connection and stroke limiter Screw/spindle NG25 0.8 mm na na na NBR
C025BN08V With X-connection and stroke limiter Screw/spindle NG25 0.8 mm na na na FPM
C025BN10N With X-connection and stroke limiter Screw/spindle NG25 1.0 mm na na na NBR
C025BN10V With X-connection and stroke limiter Screw/spindle NG25 1.0 mm na na na FPM
C025BN12N With X-connection and stroke limiter Screw/spindle NG25 1.2 mm na na na NBR
C025BN13N With X-connection and stroke limiter Screw/spindle NG25 1.3 mm na na na NBR
C025BN14V With X-connection and stroke limiter Screw/spindle NG25 1.4 mm na na na FPM
C025BN15N With X-connection and stroke limiter Screw/spindle NG25 1.5 mm na na na NBR
C025BN20N With X-connection and stroke limiter Screw/spindle NG25 2.0 mm na na na NBR
C025BN99N With X-connection and stroke limiter Screw/spindle NG25 Open na na na NBR
C025BN99V With X-connection and stroke limiter Screw/spindle NG25 Open na na na FPM
C032BN08N With X-connection and stroke limiter Screw/spindle NG32 0.8 mm na na na NBR
C032BN08V With X-connection and stroke limiter Screw/spindle NG32 0.8 mm na na na FPM
C032BN10N With X-connection and stroke limiter Screw/spindle NG32 1.0 mm na na na NBR
C032BN12N With X-connection and stroke limiter Screw/spindle NG32 1.2 mm na na na NBR
C032BN12V With X-connection and stroke limiter Screw/spindle NG32 1.2 mm na na na FPM
C032BN14N With X-connection and stroke limiter Screw/spindle NG32 1.4 mm na na na NBR
C032BN15N With X-connection and stroke limiter Screw/spindle NG32 1.5 mm na na na NBR
C032BN20N With X-connection and stroke limiter Screw/spindle NG32 2.0 mm na na na NBR
C032BN99N With X-connection and stroke limiter Screw/spindle NG32 Open na na na NBR
C032BN99V With X-connection and stroke limiter Screw/spindle NG32 Open na na na FPM
C040BN00N With X-connection and stroke limiter Screw/spindle NG40 Plug na na na NBR
C040BN08N With X-connection and stroke limiter Screw/spindle NG40 0.8 mm na na na NBR
C040BN10N With X-connection and stroke limiter Screw/spindle NG40 1.0 mm na na na NBR
C040BN10V With X-connection and stroke limiter Screw/spindle NG40 1.0 mm na na na FPM
C040BN12N With X-connection and stroke limiter Screw/spindle NG40 1.2 mm na na na NBR
C040BN12V With X-connection and stroke limiter Screw/spindle NG40 1.2 mm na na na FPM
C040BN15N With X-connection and stroke limiter Screw/spindle NG40 1.5 mm na na na NBR
C040BN15V With X-connection and stroke limiter Screw/spindle NG40 1.5 mm na na na FPM
C040BN20N With X-connection and stroke limiter Screw/spindle NG40 2.0 mm na na na NBR
C040BN25N With X-connection and stroke limiter Screw/spindle NG40 2.5 mm na na na NBR
C040BN99N With X-connection and stroke limiter Screw/spindle NG40 Open na na na NBR
C040BN99V With X-connection and stroke limiter Screw/spindle NG40 Open na na na FPM
C050BN08N With X-connection and stroke limiter Screw/spindle NG50 0.8 mm na na na NBR
C050BN10N With X-connection and stroke limiter Screw/spindle NG50 1.0 mm na na na NBR
C050BN12N With X-connection and stroke limiter Screw/spindle NG50 1.2 mm na na na NBR
C050BN15N With X-connection and stroke limiter Screw/spindle NG50 1.5 mm na na na NBR
C050BN16V With X-connection and stroke limiter Screw/spindle NG50 1.6 mm na na na FPM
C050BN18N With X-connection and stroke limiter Screw/spindle NG50 1.8 mm na na na NBR
C050BN25N With X-connection and stroke limiter Screw/spindle NG50 2.5 mm na na na NBR
C050BN99N With X-connection and stroke limiter Screw/spindle NG50 Open na na na NBR
C050BN99V With X-connection and stroke limiter Screw/spindle NG50 Open na na na FPM
C063BN10N With X-connection and stroke limiter Screw/spindle NG63 1.0 mm na na na NBR
C063BN12N With X-connection and stroke limiter Screw/spindle NG63 1.2 mm na na na NBR
C063BN15N With X-connection and stroke limiter Screw/spindle NG63 1.5 mm na na na NBR
C063BN18N With X-connection and stroke limiter Screw/spindle NG63 1.8 mm na na na NBR
C063BN20N With X-connection and stroke limiter Screw/spindle NG63 2.0 mm na na na NBR
C063BN25N With X-connection and stroke limiter Screw/spindle NG63 2.5 mm na na na NBR
C063BN99N With X-connection and stroke limiter Screw/spindle NG63 Open na na na NBR
C063BN99V With X-connection and stroke limiter Screw/spindle NG63 Open na na na FPM
C100BN99N With X-connection and stroke limiter Screw/spindle NG100 Open na na na NBR
C025BN18N With X-connection and stroke limiter Screw/spindle NG25 1.8 mm na na na NBR
C050BN20N With X-connection and stroke limiter Screw/spindle NG50 2.0 mm na na na NBR
C016BN12V With X-connection and stroke limiter Screw/spindle NG16 1.2 mm na na na FPM
