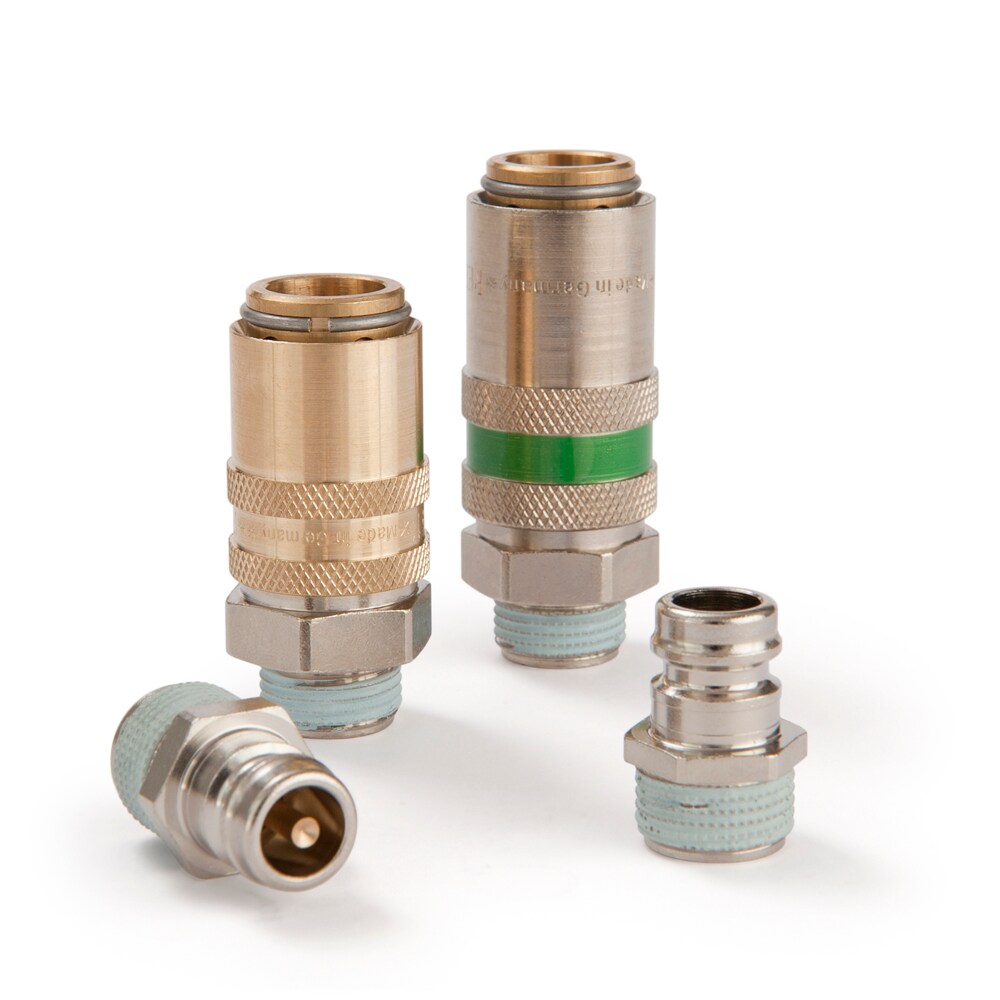

Quick Coupling with European Profile, Series 10/11/12

Quick Coupling with European Profile, Series 10/11/12

Where to Buy

Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15 bar. Coupling system with European profile. Available made of brass.

Technical Specifications

  • Minimum Operating Temperature: -15 °C
  • Hex Size: 9 up to 30 mm
  • Application: Mold
  • Brand: Rectus
  • Diameter: Nominal: 6.0, 9.0 or 13 mm
  • Fitting Connection Type: Female Thread, Male Thread, Hose Barb
  • Interchange Type: Europe
  • Maximum Operating Pressure: 210 psi, 15 bar
  • Maximum Operating Temperature: 392 °F, 200 °C
  • Media: Water
  • Valve Type: No Valve, Poppet
  • Outside Diameter: 9 up to 32 mm
  • Seal Material: FKM
Safety Warning

Full Product Description

Parker's Quick Coupling Series 10/11/12 were especially developed for connecting coolant lines and injection molds. These series stands out for their convenient, single-handed operation and a reliable O-ring seal. Series 10/11/12 is widely used in Europe.

This coupling series is available in single shut-off, double shut-off or straight-through versions and is also available with SAFE-LOCK™-technology. The straight-through couplings are equipped with nickel plated sleeves for quick and accurate visual differentiation. The angular connections prevent kinks from forming in the hose.

Markets:
- Industrial

Features/Benefits:
- Single-hand operation for easy and fast connection
- SAFE-LOCK™-technology reliably prevents accidental uncoupling of the system under pressure

Applications:
- Mold cooling
- Cooling and tempering lines

Related Documents

Compliance, Certifications & Safety
Certificate of conformity - 2014 68 EU_connectic
Safety instructions Quick Couplings
Product Demos & Tutorials
Parker Rectus--Product Demo : KA Shut-off System - Single Shut-off Quick Coupling
Parker Rectus--Product Demo : KF Shut-off System - Straight Through Quick Coupling
Parker Rectus--Product Demon : KB Shut-off System - Double Shut-off Quick Coupling
Literature and Reference Materials
Parker Legris Rectus - General Catalogue
×
View Catalog
Share / Email
Print
Products Diameter Nominal (DN) Coupling Half Connection Type Connection Size Function Length (mm) Body Material Special Options
10KBAM14MVX 6 Coupler Male Metric 14x1.5 MM Double Shut-Off 48 Brass n/a
10KFAM14MVX 6 Coupler Male Metric 14x1.5 MM Straight-Through 48 Brass n/a
10KBAW13MVX 6 Coupler Male BSPP G 1/4 Double Shut-Off 48 Brass n/a
10KFAW13MVX 6 Coupler Male BSPP G 1/4 Straight-Through 48 Brass n/a
10KB AW17 MVX 6 Coupler Male BSPP G 3/8 Double Shut-Off 48 Brass n/a
10KFAW17MVX 6 Coupler Male BSPP G 3/8 Straight-Through 48 Brass n/a
11KBAW13MVX 9 Coupler Male BSPP G 1/4 Double Shut-Off 51.5 Brass n/a
11KFAW13MVX 9 Coupler Male BSPP G 1/4 Straight-Through 51.5 Brass n/a
11KBAM16MVX 9 Coupler Male Metric 16x1.5 MM Double Shut-Off 51.5 Brass n/a
11KFAM16MVX 9 Coupler Male Metric 16x1.5 MM Straight-Through 51.5 Brass n/a
11KBAW17MVX 9 Coupler Male BSPP G 3/8 Double Shut-Off 51.5 Brass n/a
11KFAW17MVX 9 Coupler Male BSPP G 3/8 Straight-Through 51.5 Brass n/a
11KBAW21MVX 9 Coupler Male BSPP G 1/2 Double Shut-Off 51.5 Brass n/a
11KFAW21MVX 9 Coupler Male BSPP G 1/2 Straight-Through 51.5 Brass n/a
12KBAW21MVX 13 Coupler Male BSPP G 1/2 Double Shut-Off 74 Brass n/a
12KFAW21MVX 13 Coupler Male BSPP G 1/2 Straight-Through 74 Brass n/a
12KBAM24MVX 13 Coupler Male Metric 24x1.5 MM Double Shut-Off 78 Brass n/a
12KFAM24MVX 13 Coupler Male Metric 24x1.5 MM Straight-Through 78 Brass n/a
12KBAW26MVX 13 Coupler Male BSPP G 3/4 Double Shut-Off 78 Brass n/a
12KFAW26MVX 13 Coupler Male BSPP G 3/4 Straight-Through 78 Brass n/a
10KBAW13MVXSL 6 Coupler Male BSPP G 1/4 Double Shut-Off 52.5 Brass Safety Locking
10KFAW13MVXSL 6 Coupler Male BSPP G 1/4 Straight-Through 52.5 Brass Safety Locking
10KBAM14MVXSL 6 Coupler Male Metric 14x1.5 MM Double Shut-Off 52.5 Brass Safety Locking
10KFAM14MVXSL 6 Coupler Male Metric 14x1.5 MM Straight-Through 52.5 Brass Safety Locking
10KBAW17MVXSL 6 Coupler Male BSPP G 3/8 Double Shut-Off 52.5 Brass Safety Locking
10KFAW17MVXSL 6 Coupler Male BSPP G 3/8 Straight-Through 52.5 Brass Safety Locking
11KBAW13MVXSL 9 Coupler Male BSPP G 1/4 Double Shut-Off 62 Brass Safety Locking
11KFAW13MVXSL 9 Coupler Male BSPP G 1/4 Straight-Through 62 Brass Safety Locking
11KBAM16MVXSL 9 Coupler Male Metric 16x1.5 MM Double Shut-Off 62 Brass Safety Locking
11KFAM16MVXSL 9 Coupler Male Metric 16x1.5 MM Straight-Through 62 Brass Safety Locking
11KBAW17MVXSL 9 Coupler Male BSPP G 3/8 Double Shut-Off 62 Brass Safety Locking
11SFTF13MXX 9 Plug Hose Barb 13 MM Straight-Through 41 Brass n/a
12SFTF13MXX 13 Plug Hose Barb 13 MM Straight-Through 61 Brass n/a
12SFTF19MXX 13 Plug Hose Barb 19 MM Straight-Through 61 Brass n/a
10VN1010MXX 6 Plug continuous Male Thread G 1/8 n/a 100 Brass n/a
10VN1310MXX 6 Plug continuous Male Thread G 1/4 n/a 100 Brass n/a
11VN1310MXX 9 Plug continuous Male Thread G 1/4 n/a 100 Brass n/a
11VN1710MXX 9 Plug continuous Male Thread G 3/8 n/a 100 Brass n/a
10VNXX063MXX 6 Extension Plug without Thread n/a n/a 63 Brass n/a
10VNXX10MXX 6 Extension Plug without Thread n/a n/a 100 Brass n/a
10VNXX12MXX 6 Extension Plug without Thread n/a n/a 120 Brass n/a
10VNXX24MXX 6 Extension Plug without Thread n/a n/a 240 Brass n/a
10VNXX36MXX 6 Extension Plug without Thread n/a n/a 360 Brass n/a
11VNXX15MXX 9 Extension Plug without Thread n/a n/a 150 Brass n/a
11VNXX30MXX 9 Extension Plug without Thread n/a n/a 300 Brass n/a
11VNXX45MXX 9 Extension Plug without Thread n/a n/a 450 Brass n/a
12VNXX50MXX 13 Extension Plug without Thread n/a n/a 500 Brass n/a
12VNXX80MXX 13 Extension Plug without Thread n/a n/a 800 Brass n/a
11KFAW17MVXSL 9 Coupler Male BSPP G 3/8 Straight-Through 62 Brass Safety Locking
11KBAW21MVXSL 9 Coupler Male BSPP G 1/2 Double Shut-Off 65 Brass Safety Locking
11KFAW21MVXSL 9 Coupler Male BSPP G 1/2 Straight-Through 65 Brass Safety Locking
10KBAR13MVX 6 Coupler Male BSPT 90° G 1/4 Double Shut-Off 47 Brass n/a
10KFAR13MVX 6 Coupler Male BSPT 90° G 1/4 Straight-Through 47 Brass n/a
10KBAR14MVX 6 Coupler Male BSPT 90° M14x1.5 Double Shut-Off 47 Brass n/a
10KFAR14MVX 6 Coupler Male BSPT 90° M14x1.5 Straight-Through 47 Brass n/a
11KBAR16MVX 9 Coupler Male BSPT 90° M16x1.5 Double Shut-Off 53.5 Brass n/a
11KFAR16MVX 9 Coupler Male BSPT 90° 16x1.5 MM Straight-Through 53.5 Brass n/a
12KBAR24MVX 13 Coupler Male BSPT 90° 24x1.5 MM Double Shut-Off 80 Brass n/a
12KFAR24MVX 13 Coupler Male BSPT 90° 24x1.5 MM Straight-Through 80 Brass n/a
10KBAH13MVX 6 Coupler Male BSPT 45° G 1/4 Double Shut-Off 47 Brass n/a
10KFAH13MVX 6 Coupler Male BSPT 45° G 1/4 Straight-Through 47 Brass n/a
10KBAH14MVX 6 Coupler Male BSPT 45° M14x1.5 Double Shut-Off 47 Brass n/a
10KFAH14MVX 6 Coupler Male BSPT 45° 14x1.5 MM Straight-Through 47 Brass n/a
11KBAH16MVX 9 Coupler Male BSPT 45° 16x1.5 MM Double Shut-Off 53.5 Brass n/a
11KFAH16MVX 9 Coupler Male BSPT 45° M16x1.5 Straight-Through 53.5 Brass n/a
12KBAH24MVX 13 Coupler Male BSPT 45° 24x1.5 MM Double Shut-Off 80 Brass n/a
12KFAH24MVX 13 Coupler Male BSPT 45° M24x1.5 Straight-Through 80 Brass n/a
10KBIW13MVX 6 Coupler Female BSPP G 1/4 Double Shut-Off 41 Brass n/a
10KFIW13MVX 6 Coupler Female BSPP G 1/4 Straight-Through 41 Brass n/a
10KBIW17MVX 6 Coupler Female BSPP G 3/8 Double Shut-Off 45 Brass n/a
10KFIW17MVX 6 Coupler Female BSPP G 3/8 Straight-Through 45 Brass n/a
11KBIW13MVX 9 Coupler Female BSPP G 1/4 Double Shut-Off 46.5 Brass n/a
11KFIW13MVX 9 Coupler Female BSPP G 1/4 Straight-Through 46.5 Brass n/a
11KBIM16MVX 9 Coupler Female Metric 16x1.5 MM Double Shut-Off 46.5 Brass n/a
11KFIM16MVX 9 Coupler Female Metric 16x1.5 MM Straight-Through 46.5 Brass n/a
11KBIW17MVX 9 Coupler Female BSPP G 3/8 Double Shut-Off 46.5 Brass n/a
11KFIW17MVX 9 Coupler Female BSPP G 3/8 Straight-Through 46.5 Brass n/a
10KBTF09MVX 6 Coupler Hose Barb 9 MM Double Shut-Off 52 Brass n/a
10KFTF09MVX 6 Coupler Hose Barb 9 MM Straight-Through 52 Brass n/a
11KBTF13MVX 9 Coupler Hose Barb 13 MM Double Shut-Off 61.5 Brass n/a
11KFTF13MVX 9 Coupler Hose Barb 13 MM Straight-Through 61.5 Brass n/a
12KBTF19MVX 13 Coupler Hose Barb 19 MM Double Shut-Off 90 Brass n/a
12KFTF19MVX 13 Coupler Hose Barb 19 MM Straight-Through 90 Brass n/a
10KBTF09MVXSL 6 Coupler Hose Barb 9 MM Double Shut-Off 60 Brass Safety Locking
10KFTF09MVXSL 6 Coupler Hose Barb 9 MM Straight-Through 60 Brass Safety Locking
11KBTF13MVXSL 9 Coupler Hose Barb 13 MM Double Shut-Off 71 Brass Safety Locking
11KFTF13MVXSL 9 Coupler Hose Barb 13 MM Straight-Through 71 Brass Safety Locking
10KBTR09MVX 6 Coupler Hose Barb 90° 9 MM Double Shut-Off 41 Brass n/a
10KFTR09MVX 6 Coupler Hose Barb 90° 9 MM Straight-Through 41 Brass n/a
11KBTR13MVX 9 Coupler Hose Barb 90° 13 MM Double Shut-Off 51 Brass n/a
11KFTR13MVX 9 Coupler Hose Barb 90° 13 MM Straight-Through 51 Brass n/a
12KBTR19MVX 13 Coupler Hose Barb 90° 19 MM Double Shut-Off 78 Brass n/a
12KFTR19MVX 13 Coupler Hose Barb 90° 19 MM Straight-Through 78 Brass n/a
10KBTR09MVXSL 6 Coupler Hose Barb 90° 9 MM Double Shut-Off 53.5 Brass Safety Locking
10KFTR09MVXSL 6 Coupler Hose Barb 90° 9 MM Straight-Through 53.5 Brass Safety Locking
11KBTR13MVXSL 9 Coupler Hose Barb 90° 13 MM Double Shut-Off 63.5 Brass Safety Locking
11KFTR13MVXSL 9 Coupler Hose Barb 90° 13 MM Straight-Through 63.5 Brass Safety Locking
10KBTH09MVX 6 Coupler Hose Barb 45° 9 MM Double Shut-Off 52 Brass n/a
10KFTH09MVX 6 Coupler Hose Barb 45° 9 MM Straight-Through 52 Brass n/a
11KBTH13MVX 9 Coupler Hose Barb 45° 13 MM Double Shut-Off 51 Brass n/a
11KFTH13MVX 9 Coupler Hose Barb 45° 13 MM Straight-Through 51 Brass n/a
12KBTH19MVX 13 Coupler Hose Barb 45° 19 MM Double Shut-Off 78 Brass n/a
12KFTH19MVX 13 Coupler Hose Barb 45° 19 MM Straight-Through 78 Brass n/a
10KBTH09MVXSL 6 Coupler Hose Barb 45° 9 MM Double Shut-Off 60 Brass Safety Locking
10KFTH09MVXSL 6 Coupler Hose Barb 45° 9 MM Straight-Through 60 Brass Safety Locking
11KBTH13MVXSL 9 Coupler Hose Barb 45° 13 MM Double Shut-Off 60.5 Brass Safety Locking
11KFTH13MVXSL 9 Coupler Hose Barb 45° 13 MM Straight-Through 60.5 Brass Safety Locking
10SFAM08MXX 6 Plug Male Metric 8x0.75 MM Straight-Through 24 Brass n/a
10SFAM08RXX 6 Plug Male Metric 8x0.75 MM Straight-Through 24 Stainless Steel 303 n/a
10SFAM10MXX 6 Plug Male Metric 10x1.0 MM Straight-Through 24 Brass n/a
10SFAM10RXX 6 Plug Male Metric 10x1.0 MM Straight-Through 24 Stainless Steel 303 n/a
10SFAW10MXN 6 Plug Male BSPP G 1/8 Straight-Through 24 Brass n/a
10SFAW10RXX 6 Plug Male BSPP G 1/8 Straight-Through 24 Stainless Steel 303 n/a
10SFAM12MXX 6 Plug Male Metric 12x1.5 MM Straight-Through 27 Brass n/a
10SBAW13MVN 6 Plug Male BSPP G 1/4 Double Shut-Off 29 Brass n/a
10SFAW13MXN 6 Plug Male BSPP G 1/4 Straight-Through 26 Brass n/a
10SFAW13RXX 6 Plug Male BSPP G 1/4 Straight-Through 26 Stainless Steel 303 n/a
10SBAM14MVX 6 Plug Male Metric 14x1.5 MM Double Shut-Off 29 Brass n/a
10SFAM14MXX 6 Plug Male Metric 14x1.5 MM Straight-Through 26 Brass n/a
10SFAW17MXN 6 Plug Male BSPP G 3/8 Straight-Through 30 Brass n/a
11SFAW10MXN 9 Plug Male BSPP G 1/8 Straight-Through 25 Brass n/a
11SBAW13MVN 9 Plug Male BSPP G 1/4 Double Shut-Off 31 Brass n/a
11SFAW13MXN 9 Plug Male BSPP G 1/4 Straight-Through 26 Brass n/a
11SFAW13RXX 9 Plug Male BSPP G 1/4 Straight-Through 26 Stainless Steel 303 n/a
11SFAM14MXX 9 Plug Male Metric 14x1.5 MM Straight-Through 26 Brass n/a
11SBAM16MVX 9 Plug Male Metric 16x1.5 MM Double Shut-Off 30 Brass n/a
11SFAM16MXX 9 Plug Male Metric 16x1.5 MM Straight-Through 26 Brass n/a
11SBAW17MVN 9 Plug Male BSPP G 3/8 Double Shut-Off 30 Brass n/a
11SFAW17MXN 9 Plug Male BSPP G 3/8 Straight-Through 26 Brass n/a
11SFAW17RXX 9 Plug Male BSPP G 3/8 Straight-Through 26 Stainless Steel 303 n/a
12SFAW21MXN 13 Plug Male BSPP G 1/2 Straight-Through 47 Brass n/a
12SBAM24MVX 13 Plug Male Metric 24x1.5 MM Double Shut-Off 51 Brass n/a
12SFAM24MXX 13 Plug Male Metric 24x1.5 MM Straight-Through 51 Brass n/a
12SBAW26MVN 13 Plug Male BSPP G 3/4 Double Shut-Off 51 Brass n/a
12SFAW26MXN 13 Plug Male BSPP G 3/4 Straight-Through 51 Brass n/a
10SFAR08MXX 6 Plug Male BSPT 90° 8x0.75 MM Straight-Through 27 Brass n/a
10SFAR10MXX 6 Plug Male BSPT 90° G 1/8 Straight-Through 27 Brass n/a
10SFAR10MXN 6 Plug Male BSPT 90° G 1/8 Straight-Through 27 Brass n/a
10SFAR13MXN 6 Plug Male BSPT 90° G 1/4 Straight-Through 27 Brass n/a
11SFAR13MXN 9 Plug Male BSPT 90° G 1/4 Straight-Through 34 Brass n/a
11SFAR14MXX 9 Plug Male BSPT 90° 14x1.5 MM Straight-Through 34 Brass n/a
11SFAR17MXN 9 Plug Male BSPT 90° G 3/8 Straight-Through 34 Brass n/a
12SFAR21MXN 13 Plug Male BSPT 90° G 1/2 Straight-Through 47 Brass n/a
12SFAR24MXX 13 Plug Male BSPT 90° M24x1.5 Straight-Through 47 Brass n/a
10SFIW10MXN 6 Plug Female BSPP G 1/8 Straight-Through 24 Brass n/a
10SFIW13MXN 6 Plug Female BSPP G 1/4 Straight-Through 27 Brass n/a
11SFIW13MXN 9 Plug Female BSPP G 1/4 Straight-Through 33 Brass n/a
10SFTF09MXX 6 Plug Hose Barb 9 MM Straight-Through 38 Brass n/a
11SFTF09MXX 9 Plug Hose Barb 9 MM Straight-Through 41 Brass n/a
10KBAH13MVXSV 6 Coupler Male BSPT 45° G 1/4 Double Shut-Off 52.5 Brass Safety Locking
11KBAM16MVXSV 9 Coupler Male Metric 16x1.5 MM Double Shut-Off 59.5 Brass n/a
11KBAR16MVXSV 9 Coupler Male BSPT 90° 16x1.5 MM Double Shut-Off 61.5 Brass Safety Locking
11KBAW13MVXSV 9 Coupler Male BSPP G 1/4 Double Shut-Off 59.5 Brass Safety Locking
11KBAW17MVXSV 9 Coupler Male BSPP G 3/8 Double Shut-Off 59.5 Brass Safety Locking
11KBAW21MVXSV 9 Coupler Male BSPP G 1/2 Double Shut-Off 62.5 Brass Safety Locking
11KBPH10MVX 9 Coupler Hose Barb 45° 10 MM Double Shut-Off 51 Brass Push-Lok
11KBPH13MVX 9 Coupler Hose Barb 45° 13 MM Double Shut-Off 51 Brass Push-Lok
11KBPR10MVX 9 Coupler Hose Barb 90° 10 MM Double Shut-Off 56.5 Brass Push-Lok
11KBPR13MVX 9 Coupler Hose Barb 90° 13 MM Double Shut-Off 56.5 Brass Push-Lok
11KBTF13MVXSV 9 Coupler Hose Barb 13 MM Double Shut-Off 68.5 Brass Safety Locking
11KBTH13MVXSV 9 Coupler Hose Barb 45° 13 MM Double Shut-Off 56 Brass Safety Locking
11KBTP10MVX 9 Coupler Hose Barb 10 MM Double Shut-Off 61 Brass Push-Lok
11KBTP13MVX 9 Coupler Hose Barb 13 MM Double Shut-Off 64.5 Brass Push-Lok
11KBAH16MVXSV 9 Coupler Male BSPT 45° 16x1.5 MM Double Shut-Off 61.5 Brass Coupler with valve, Male Thread 45°
11KBTR13MVXSV 9 Coupler Hose Barb 90° 13 MM Double Shut-Off 56 Brass Safety Locking
11KFAM16MVXSV 9 Coupler Male Metric 16x1.5 MM Straight-Through 59.5 Brass Coupler without valve, Male Thread
11KFAR16MVXSV 9 Coupler Male BSPT 90° 16x1.5 MM Straight-Through 61.5 Brass Safety Locking
11KFAW13MVXSV 9 Coupler Male BSPP G 1/4 Straight-Through 59.5 Brass Safety Locking
11KFAW17MVXSV 9 Coupler Male BSPP G 3/8 Straight-Through 59.5 Brass Safety Locking
11KFAW21MVXSV 9 Coupler Male BSPP G 1/2 Straight-Through 62.5 Brass Safety Locking
11KFPH10MVX 9 Coupler Hose Barb 45° 10 MM Straight-Through 51 Brass Push-Lok
11KFPH13MVX 9 Coupler Hose Barb 45° 13 MM Straight-Through 51 Brass Push-Lok
11KFPR10MVX 9 Coupler Hose Barb 90° 10 MM Straight-Through 56.5 Brass Push-Lok
11KFPR13MVX 9 Coupler Hose Barb 90° 13 MM Straight-Through 56.5 Brass Push-Lok
11KFTF13MVXSV 9 Coupler Hose Barb 13 MM Straight-Through 68.5 Brass Safety Locking
11KFTH13MVXSV 9 Coupler Hose Barb 45° 13 MM Straight-Through 56 Brass Safety Locking
11KFTP10MVX 9 Coupler Hose Barb 10 MM Straight-Through 61 Brass Push-Lok
11KFTP13MVX 9 Coupler Hose Barb 13 MM Straight-Through 64.5 Brass Push-Lok
11KFAH16MVXSV 9 Coupler Male BSPT 45° 16x1.5 MM Straight-Through 61.5 Brass Safety Locking
10KFTR09MVXSV 6 Coupler Hose Barb 90° 9 MM Straight-Through 48.5 Brass Safety Locking
11KFTR13MVXSV 9 Coupler Hose Barb 90° 13 MM Straight-Through 56 Brass Safety Locking
10KFTP06MVX 6 Coupler Hose Barb 6 MM Straight-Through 50.5 Brass Push-Lok
10KBAH14MVXSV 6 Coupler Male BSPT 45° 14x1.5 MM Double Shut-Off 52.5 Brass Coupler with valve, Male Thread 45°
10KBAM14MVXSV 6 Coupler Male Metric 14x1.5 MM Double Shut-Off 51 Brass Coupler with valve, Male Thread
10KBAR13MVXSV 6 Coupler Male BSPT 90° G 1/4 Double Shut-Off 52.5 Brass Coupler with valve, Male Thread 90°
10KBAR14MVXSV 6 Coupler Male BSPT 90° 14x1.5 MM Double Shut-Off 52.5 Brass n/a
10KBAW13MVXSV 6 Coupler Male BSPP G 1/4 Double Shut-Off 51 Brass Safety Locking
10KBAW17MVX 6 Coupler Male BSPP G 3/8 Double Shut-Off 48 Brass n/a
10KFTP10MVX 6 Coupler Hose Barb 10 MM Straight-Through 54 Brass Push-Lok
10KBPH06MVX 6 Coupler Hose Barb 45° 6 MM Double Shut-Off 41 Brass Push-Lok
10KBPH10MVX 6 Coupler Hose Barb 45° 10 MM Double Shut-Off 41 Brass Push-Lok
10KBPR06MVX 6 Coupler Hose Barb 90° 6 MM Double Shut-Off 46 Brass Push-Lok
10KBPR10MVX 6 Coupler Hose Barb 90° 10 MM Double Shut-Off 46 Brass Push-Lok
10KBTF09MVXSV 6 Coupler Hose Barb 9 MM Double Shut-Off 57.5 Brass n/a
10KBTH09MVXSV 6 Coupler Hose Barb 45° 9 MM Double Shut-Off 46.5 Brass n/a
10KBTP06MVX 6 Coupler Hose Barb 6 MM Double Shut-Off 50.5 Brass Push-Lok
10KBAW17MVXSV 6 Coupler Male BSPP G 3/8 Double Shut-Off 51 Brass Safety Locking
10KBTR09MVXSV 6 Coupler Hose Barb 90° 9 MM Double Shut-Off 48.5 Brass n/a
10KFAH13MVXSV 6 Coupler Male BSPT 45° G 1/4 Straight-Through 52.5 Brass n/a
10KFAH14MVXSV 6 Coupler Male BSPT 45° 14x1.5 MM Straight-Through 52.5 Brass n/a
10KFAM14MVXSV 6 Coupler Male Metric 14x1.5 MM Straight-Through 51 Brass n/a
10KFAR13MVXSV 6 Coupler Male BSPT 90° G 1/4 Straight-Through 52.5 Brass n/a
10KFAR14MVXSV 6 Coupler Male BSPT 90° 14x1.5 MM Straight-Through 52.5 Brass n/a
10KFAW13MVXSV 6 Coupler Male BSPP G 1/4 Straight-Through 51 Brass n/a
10KFAW17MVXSV 6 Coupler Male BSPP G 3/8 Straight-Through 51 Brass n/a
10KFPH06MVX 6 Coupler Hose Barb 45° 6 MM Straight-Through 41 Brass Push-Lok
10KFPH10MVX 6 Coupler Hose Barb 45° 10 MM Straight-Through 41 Brass Push-Lok
10KFPR06MVX 6 Coupler Hose Barb 90° 6 MM Straight-Through 46 Brass Push-Lok
10KFPR10MVX 6 Coupler Hose Barb 90° 10 MM Straight-Through 46 Brass Push-Lok
10KFTF09MVXSV 6 Coupler Hose Barb 9 MM Straight-Through 57.5 Brass Safety Locking
10KFTH09MVXSV 6 Coupler Hose Barb 45° 9 MM Straight-Through 46.5 Brass Safety Locking
10KBTP10MVX 6 Coupler Hose Barb 10 MM Double Shut-Off 54 Brass Push-Lok
11KBUK125MVX 9 Coupler n/a n/a Double Shut-Off 125 Brass n/a
11KBUK250MVX 9 Coupler n/a n/a Double Shut-Off 250 Brass n/a

Recommended

Close [ x ]
Full Screen
687PDC
A43098
