601PM-12PM - EN854 R3 specification Hydraulic hose – Series 601PM | Parker NA

EN854 R3 specification Hydraulic hose – Series 601PM | #601PM-12PM

601PM-12PM

EN854 R3 specification Hydraulic hose – Series 601PM | #601PM-12PM

601PM hose meets EN 854 specification with Ozone resistant cover and is compatible with all petorleum base oils & fluids.

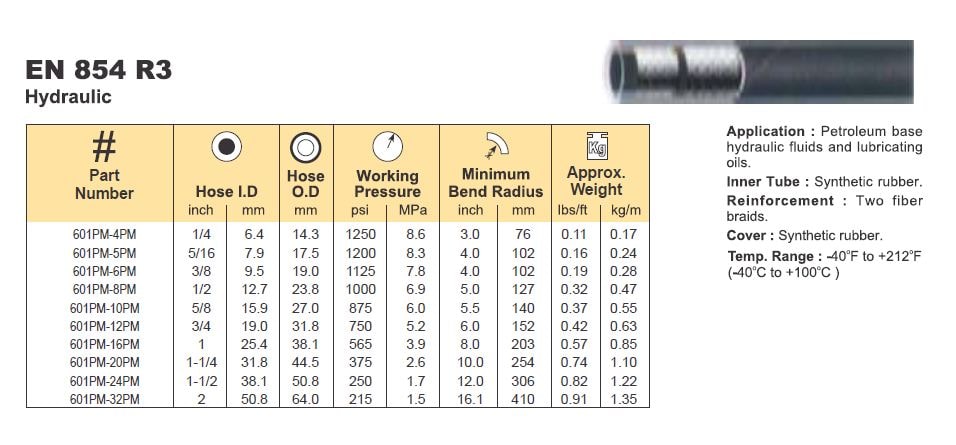

Technical Specifications

  • Hose I.D. (inch): 3/4
  • Weight: 0.63 kg/m
  • Maximum Operating Temperature: 100 °C
  • Minimum Operating Temperature: -40 °C, 100 °C
  • Application: Hydraulic Oil Lines
  • Media: Petroleum Hydraulic Fluids
  • Specifications Met: EN 854, Type R3
  • Inside Diameter: 19 mm
  • Outside Diameter: 31.8 mm
  • Maximum Operating Pressure: 750 psi
  • Minimum Bend Radius: 152 mm
Safety Warning

Item Information

601PM hose meets EN 854 specification. The tube is compatible with petroleum base oils & fluids. The hose is with Ozone resistant cover. It is Versatile and can be used with all major applications

Markets:
• Transportation
• Construction
• Machine tools
• Material handling
• Industrial

Features /Benefits:
• It is Versatile and can be used with all major applications
• It Can be used in low pressure hydraulic lines.
• It has ozone resistant cover

Applications:
• Low pressures petroleum base hydraulic fluids
• Low pressures petroleum base lubricating oil.
